Ürün arama
Açıklama

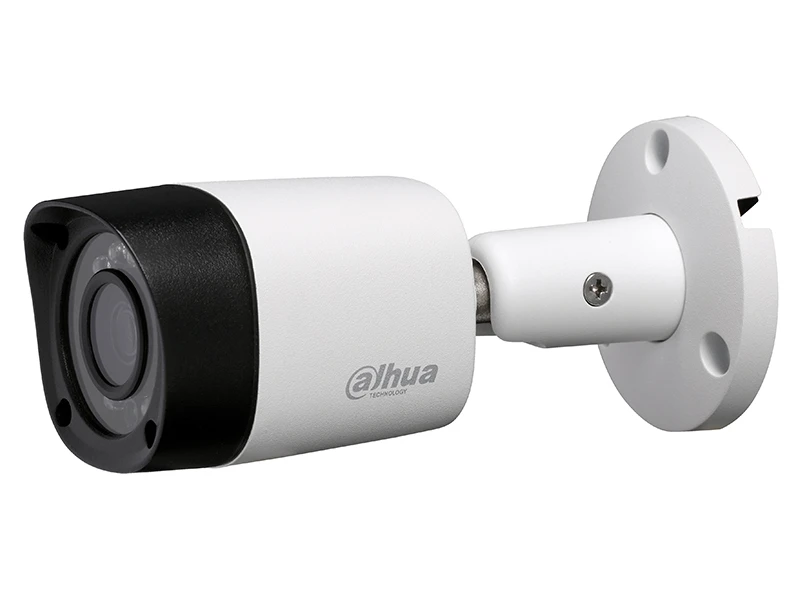

Dahua HAC HFW 1100RMP HD CVI Bullet Kamera
Özellikler
- 1 Megapiksel 720P Waterproof IR Bullet HD-CVI Kamera
- 3,6mm Sabit Lens (H:79.7º),
- 1/2.9" 1MP CMOS, 25/30fps @ 720P,
- 0.01Lux @ F1.2(AGC ON), 0Lux IR açıkken ,
- Yüksek Hız, Uzun Mesafe Real- Time İletim,
- HD ve Standard Çözünürlük Seçimi, Gece/Gündüz (ICR),
- 2D-DNR, AWB, AGC, BLC,
- IR LED G.Mesafesi: 20m, Akıllı IR,
- IP67, DC 12V, 75-3 Koaksiyel kablo ile 800m,
- Ölçüler: 70mm×154mm Metal
Teknik Özellikler
| Camera |
| Image Sensor : 1/2.9" 1Megapixel CMOS |
| Effective Pixels : 1280(H)×720(V) |
| Electronic Shutter : 1/50s~1/100,000s |
| Video Frame Rate : 25fps @ 720P 30fps @ 720P |
| Synchronization : Internal |
| Mini. Illumination : 0.05Lux/F1.6, 0Lux IR on |
| Video Output : 1-channel BNC HDCVI high definition video output |
| Camera Features |
| Max. IR LEDs Length : 20m, Smart IR |
| Day/Night : Auto(ICR) / Color / B/W |
| Noise Reduction : 2D |
| Lens |
| Focal Length : 3.6mm fixed lens (6mm optional) |
| Angle of View : H: 88º(52º) |
| Mount Type : M12 |
| General |
| Power Supply : DC12V±25% |
| Power Consumption : Max 3.5W |
| Working Environment : -30°C~+60°C / Less than 95%RH (no condensation) |
| Transmission Distance : Over 800m via 75-3 coaxial cable |
| Ingress Protection : IP67 |
| Dimensions(W×D×H) : Φ70mm×154mm |
| Weight : 0.3kg |
| Material : Metal |
Dahua HAC HFW 1100RMP HD CVI Bullet Kamera Pdf Dosyası216.21 KB
