Açıklama

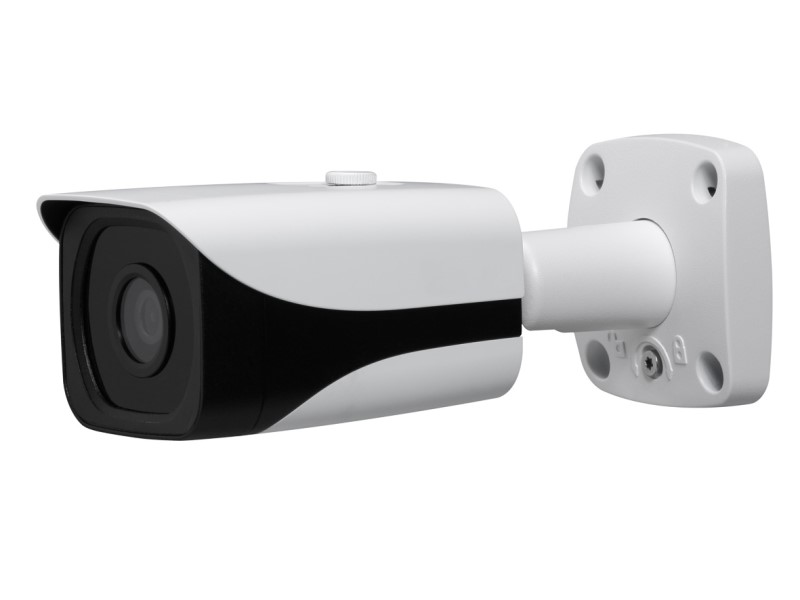

Dahua HAC HFW2120EP 0360B HD CVI Bullet Kamera
Özellikler
- 1.4 Megapiksel 720P Waterproof IR Bullet HD-CVI Kamera
- 3,6mm Sabit Lens,
- 1/3" 1.4 MP CMOS, 25/50fps @ 720P,
- Efektif Piksel 1305(H)×1049(V), Yüksek Hız,
- Uzun Mesafe Real-Time İletim, HD ve Standard Çözünürlük Seçimi,
- OSD Menü, Koaksiyel Kablo Üzerinden Kontrol,
- Gece/Gündüz (ICR), AWB, AGC, BLC, 3D-DNR,
- IR LED G.Mesafesi: 40m, Akıllı IR,
- IP67, DC12V, 75-3 Koaksiyel kablo ile 800m
Teknik Özellikler
| Camera |
| Image Sensor : 1/3" 1.3Megapixel CMOS |
| Effective Pixels : 1305(H)×977(V) |
| Electronic Shutter : 1/3s~1/100,000s |
| Video Frame Rate : 25/50fps @ 720P |
| Synchronization : Internal |
| Mini. Illumination : 0.01Lux/F1.6, 0Lux IR on |
| Video Output : 1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch) |
| Camera Features |
| Max. IR LEDs Length : 40m, Smart IR |
| Day/Night : Auto(ICR)/ Color/ B/W |
| Noise Reduction : 2D/3D |
| OSD Menu : Support |
| Lens |
| Focal Length : 3.6mm (2.8mm, 6mm, 8mm optional) |
| Angle of View : H: 72.3º(89º/46º/34.8º) |
| Mount Type : M12 |
| General |
| Power Supply : DC12V±20% |
| Power Consumption : Max 5.3W |
| Working Environment : -30°C~+60°C / Less than 95%RH (no condensation) |
| Transmission Distance : Over 800m via 75-3 coaxial cable |
| Ingress Protection : IP67 |
| Dimensions(W×D×H) : 180mm×70mm×70mm |
| Weight : 0.4kg |
| Material : Metal |
Dahua HAC HFW2120EP 0360B HD CVI Bullet Kamera Pdf Dosyası243.16 KB
