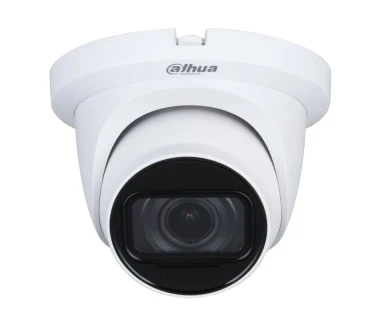

Dahua HAC-HDW2802TMQ-Z-A-DP HDCVI Eyeball Kamera
Özellikler
- The parameters and datasheets below can only be applied to2802-S2 series.
- Max. 15 fps@4K.
- Starlight, 120 dB true WDR, 3D NR.
- Smart IR Illumination.
- 60 m illumination distance.
- Super Adapt.
- Built-in MIC.
- Quick-to-install eyeball saves installation time.
- Auto focus, 2.7 mm–13.5 mm motorized lens.
- CVI/CVBS/AHD/TVI switchable.
- IP67, 24 VAC/12 VDC.
Teknik Özellikler
| Camera | |||||
| Image Sensor | 4K CMOS | ||||
| Max. Resolution | 3840 (H) × 2160 (V) | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | PAL: 1/3 s–1/100000 s | ||||
| NTSC: 1/4 s–1/100000 s | |||||
| Min. Illumination | 0.001 lux@F1.5 (Color, 30 IRE) | ||||
| 0.0001 lux@F1.5 (B/W, 30 IRE) | |||||
| 0 lux (Illuminator on) | |||||
| S/N Ratio | >65 dB | ||||
| Illumination Distance | 60 m (196.85 ft) | ||||
| Illuminator On/Off Control | Auto | ||||
| Illuminator Number | 2 (IR light) | ||||
| Pan/Tilt/Rotation Range | Pan: 0°–360° | ||||
| Tilt: 0°–78° | |||||
| Rotation: 0°–360° | |||||
| Lens | |||||
| Lens Type | Motorized Vari-focal | ||||
| Auto Focus | Yes | ||||
| Lens Mount | φ14 | ||||
| Focal Length | 2.7 mm–13.5 mm | ||||
| Max. Aperture | F1.5 | ||||
| Field of View | H: 113°–47°; V: 60°–26°; D: 133°–53° | ||||
| Iris Control | Fixed | ||||
| Close Focus Distance | 1.2 m (3.94 ft) | ||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 2.7 mm | 83.4 m | 33.4 m | 16.7 m | 8.3 m | |
| (273.62 ft) | (109.58 ft) | (54.79 ft) | (27.23 ft) | ||
| 13.5 mm | 189.6 m | 75.8 m | 37.9 m | 19.0 m | |
| (622.05 ft) | (248.69 ft) | (124.34 ft) | (62.34 ft) | ||
| Video | |||||
| Video Frame Rate | CVI: PAL: 4K@15 fps; 5M@25 fps; 4M@25 fps | ||||
| NTSC: 4K@15 fps; 5M@25 fps; 4M@30 fps | |||||
| AHD: PAL: 4K@15 fps; NTSC: 4K@15 fps | |||||
| TVI: PAL: 4K@15 fps; NTSC: 4K@15 fps | |||||
| CVBS: PAL: 960H; NTSC: 960H | |||||
| Resolution | 4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); 960H (960 × 576/960 × 480) | ||||
| Day/Night | Auto(ICR)/Color/B/W | ||||
| BLC | BLC; HLC; WDR; HLC-Pro | ||||
| WDR | 120 dB | ||||
| White Balance | Auto;Area white balance | ||||
| Gain Control | Auto/Manual | ||||
| Noise Reduction | 3D NR | ||||
| Illumination Mode | Smart IR | ||||
| Defog | Electronic defog | ||||
| Digital Zoom | 4× | ||||
| Mirror | Yes | ||||
| Privacy Masking | Off/On (8 areas, rectangle) | ||||
| Certification | |||||
| Certifications | CE-LVD: EN 62368-1; | ||||
| CE-EMC: EN 55032; EN 55035; | |||||
| FCC: 47 CFR FCC Part 15, Subpart B; | |||||
| UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14 | |||||
| Port | |||||
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch) | ||||
| Audio Input | One channel built-in MIC | ||||
| Power | |||||
| Power Supply | 12 VDC ± 10%; 24 VAC ± 25% | ||||
| Power Consumption | Max 10.0 W (12 VDC, IR on) | ||||
| Environment | |||||
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) | ||||
| Operating Humidity | <95% (RH), non-condensing | ||||
| Storage Temperature | –30 °C to +60 °C (–22 °F to +140 °F) | ||||
| Storage Humidity | <95% (RH), non-condensing | ||||
| Protection | IP67 | ||||
| Structure | |||||
| Casing Material | Metal dome + metal enclosure + plastic mounting plate | ||||
| Product Dimensions | φ135 mm × 109 mm (φ5.31" × 4.28") | ||||
| Net Weight | 0.56 kg (1.20 lb) | ||||
| Gross Weight | 0.73 kg (1.60 lb) | ||||
| Installation | Wall mount; ceiling mount; vertical pole mount | ||||
