Açıklama

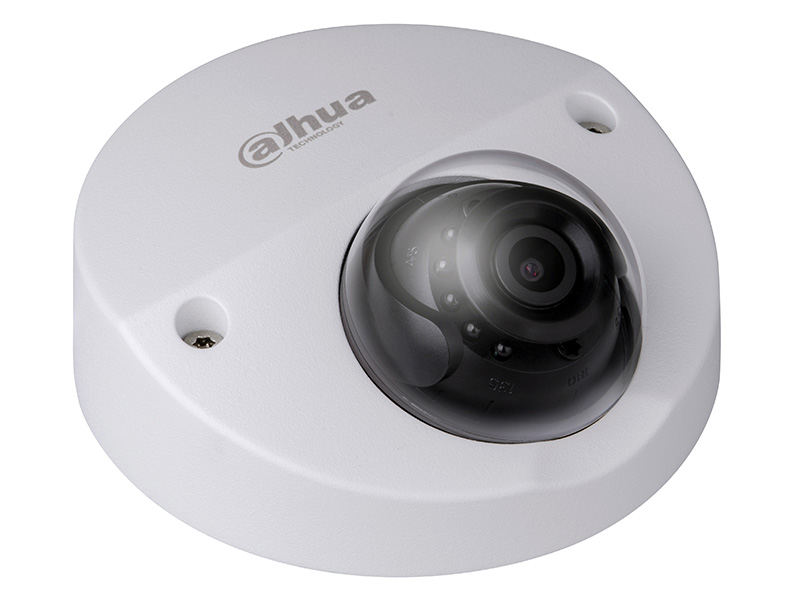

Dahua HAC HDBW2220F 0280B HD CVI Dome Kamera
Özellikler
- 2.4Megapixel 1080P HDCVI Mobile Camera - Sesli
- 1/2.8 "CMOS, 2.4Megapixel 1080P @ 25/30 25/30/50 / 60fps @ 720P
- Yüksek hız, uzun mesafe gerçek zamanlı aktarım ,
- HD ve standart tanımlı değiştirilebilir ,OSD Menü,
- Koaksiyel kablo üzerinden kontrol ,
- Gündüz / Gece (ICR), AWB, AGC, BLC, 3D-DNR ,
- 2.8mm (3.6mm Sabit Lens,6mm opsiyonel)
- Max. IR LED'ler uzunluğu 20m, Akıllı IR ,
- Ses, IP67, IK10 üzerinde, DC12V
Teknik Özellikler
| Camera |
| Image Sensor : 1/2.8" 2.4Megapixel CMOS |
| Effective Pixels : 1984(H)×1225(V) |
| Electronic Shutter : 1/3s~1/100,000s |
| Video Frame Rate : 25/30/50/60fps @ 720P; 25/30fps @ 1080P |
| Synchronization : Internal |
| Mini. Illumination : 0.05Lux/F1.8, 0Lux IR on |
| Video Output : 1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch),Tester out |
| Camera Features |
| Max. IR LEDs Length : 20m, Smart IR |
| Day/Night : Auto(ICR) / Color / B/W |
| Noise Reduction : 2D/3D |
| OSD Menu : Support |
| Lens |
| Focal Length : 2.8mm(3.6mm,6mm optional) |
| Angle of View : H: 88º(106º/55º) |
| Mount Type : M12 |
| General |
| Power Supply : DC12V±20% |
| Power Consumption : Max 3.3W |
| Working Environment : -30°C~+60°C / Less than 95%RH (no condensation) |
| Transmission Distance : Over 500m via 75-3 coaxial cable |
| Ingress Protection : IP67 & IK10 |
| Dimensions(W×D×H) : Φ106.3mm×50.3mm |
| Weight : 0.3kg |
| Material : Metal |
| Others : Build-in MIC |
Dahua HAC HDBW2220F 0280B HD CVI Dome Kamera Pdf Dosyası198.01 KB
