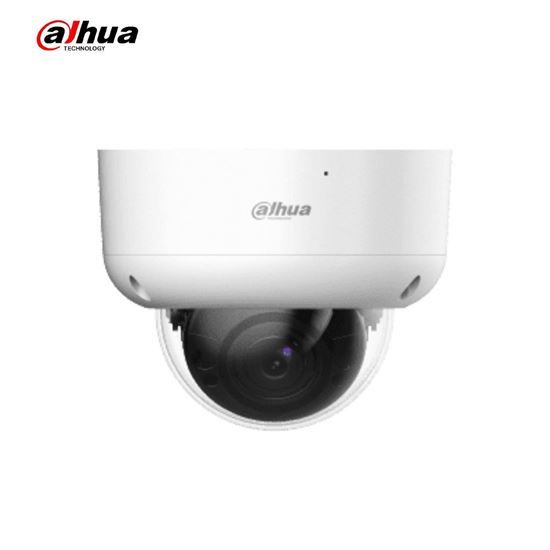

Dahua HAC-HDBW1231RA-Z-A HDCVI Dome Kamera
Özellikler
Teknik Özellikler
| Camera | |||||
| Pixel | 2MP | ||||
| Image Sensor | 1/2.8"CMOS | ||||
| Max. Resolution | 1920 (H) × 1080 (V) | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s | ||||
| NTSC: 1/30 s–1/100,000 s | |||||
| Min. Illumination | 0.002lux/F1.5, 30IRE, 0Lux IR on | ||||
| S/N Ratio | > 65 dB | ||||
| Illumination Distance | 60 m (196.9 ft) | ||||
| Illuminator On/Off Control | Auto | ||||
| Illuminator Number | 3 (IR light) | ||||
| Pan/Tilt/Rotation Range | Pan: 0°–355° | ||||
| Tilt: 0°–80° | |||||
| Rotation: 0°–355° | |||||
| Lens | |||||
| Lens Type | Motorized vari-focal | ||||
| Auto Focus | Yes | ||||
| Lens Mount | φ14 | ||||
| Focal Length | 2.7 mm–12 mm | ||||
| Max. Aperture | F1.5 | ||||
| Field of View | Diagonal: 38°– 123° | ||||
| Horizontal: 33°–102° | |||||
| Vertical: 19°–53° | |||||
| Iris Control | Fixed | ||||
| Close Focus Distance | 0.5 m (1.6ft ) | ||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 2.7 mm | 47.6 m (156.2 ft) | 19.0 m (62.3 ft) | 9.5 m (31.2 ft) | 4.76 m (15.6 ft) | |
| 12 mm | 132.1 m (433.4 ft) | 52.9 m (173.6 ft) | 26.4 m (86.6 ft) | 13.2 m (43.3 ft) | |
| Video | |||||
| Video Frame Rate | CVI: | ||||
| PAL: 1080P@25fps; | |||||
| NTSC: 1080P@30fps; | |||||
| AHD: | |||||
| PAL: 1080P@25fps; | |||||
| NTSC: 1080P@30fps; | |||||
| TVI: | |||||
| PAL: 1080P@25fps; | |||||
| NTSC: 1080P@30fps; | |||||
| CVBS: | |||||
| PAL: 960 × 576H; | |||||
| NTSC: 960 × 480H | |||||
| Resolution | 1080P (1920 × 1080); | ||||
| 960H (960 × 576/960 × 480) | |||||
| Day/Night | Auto (ICR) | ||||
| BLC | BLC/WDR/HLC | ||||
| WDR | 130 dB | ||||
| White Balance | Auto/Area WB | ||||
| Gain Control | Auto/Manual | ||||
| Noise Reduction | 3D NR | ||||
| Smart Illumination | Yes | ||||
| Mirror | Yes | ||||
| Privacy Masking | Off/On (8 areas, rectangle) | ||||
| Certifications | |||||
| Certifications | CE (EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017) | ||||
| FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) | |||||
| UL (UL60950-1+CAN/CSA C22.2 No.60950-1) | |||||
| Port | |||||
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port | ||||
| Audio Input | One channel built-in mic | ||||
| Power | |||||
| Power Supply | 12 VDC±30% | ||||
| Power Consumption | Max. 8 W (12 VDC, IR on) | ||||
| Environment | |||||
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F); < 95% (non-condensation) | ||||
| Storage Temperature | –30 °C to +60 °C (–22 °F to +140 °F); < 95% (non-condensation) | ||||
| Protection | IP67; IK10 | ||||
| Structure | |||||
| Casing | Metal throughout the whole casing | ||||
| Camera Dimensions | φ126 mm × 100 mm (φ5" × 3.9") | ||||
| Net Weight | 0.63 kg (1.4 lb) | ||||
| Gross Weight | 0.81 kg (1.8 lb) | ||||
Dahua HAC-HDBW1231RA-Z-A HDCVI Dome Kamera Pdf Dosyası521.88 KB
