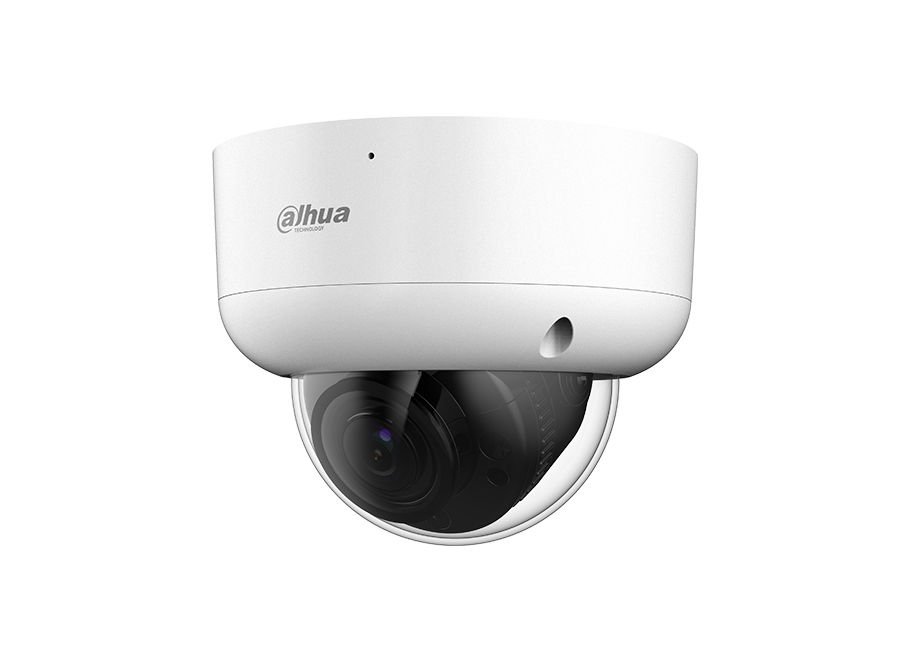

Dahua HAC-HDBW1801RA-Z-A HDCVI Dome Kamera

Özellikler

* The parameters and datasheets below can only be applied to1801-S2 series.

Max. 15 fps@4K.
120 dB true WDR, 3D NR.
Smart IR Illumination.
60 m illumination distance.
Super Adapt.
Built-in MIC.
Auto focus, 2.7 mm–13.5 mm motorized lens.
CVI/CVBS/AHD/TVI switchable.
IP67, IK10, 12 VDC.

Teknik Özellikler

Camera
Pixel	8 MP
Image Sensor	4K CMOS
Max. Resolution	3840 (H) × 2160 (V)
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/25 s–1/100000 s
	NTSC: 1/30 s–1/100000 s
Min. Illumination	0.01 lux@F1.5 (Color, 30 IRE)
	0.001 lux@F1.5 (B/W, 30 IRE)
	0 lux (Illuminator on)
S/N Ratio	>65 dB
Illumination Distance	60 m (196.85 ft)
Illuminator On/Off Control	Auto/Manual
Illuminator Number	3 (IR light)
Pan/Tilt/Rotation Range	Pan: 0°–355°
	Tilt: 0°–80°
	Rotation: 0°–355°
Lens
Lens Type	Motorized Vari-focal
Auto Focus	Yes
Lens Mount	φ14
Focal Length	2.7 mm–13.5 mm
Max. Aperture	F1.5
Field of View	Horizontal: 114°–32°
	Vertical: 58°–17°
	Diagonal: 138°–36°
Iris Control	Fixed
Close Focus Distance	0.8m
DORI Distance	Lens	Detect	Observe	Recognize	Identify
	W	85.3 m (279.86 ft)	34.1 m (111.88 ft)	17.1 m(56.10 ft)	8.5 m(27.89 ft)
	T	280.0 m (918.64 ft)	112.0 m (367.45 ft)	56.0 m (183.73 ft)	28.0 m(91.87 ft)
Video
Video Frame Rate	CVI:
	PAL: 4K@15 fps; 5M@25 fps; 4M@25 fps; 1080p@25 fps
	NTSC: 4K@15 fps; 5M@25 fps; 4M@30 fps; 1080p@30
	fps
	TVI:
	PAL: 4K@15 fps
	NTSC: 4K@15 fps
	AHD:
	PAL: 4K@15 fps
	NTSC: 4K@15 fps
	CVBS:
	PAL: 960H
	NTSC: 960H
Resolution	4K (3840 x 2160);
	5M (2880 x 1620);
	4M (2560 x 1440);
	1080P (1920 x 1080);
	960H (960 x 576/960 x 480)
Day/Night	Auto(ICR)/Color/B/W
BLC	BLC; HLC; WDR; HLC-Pro
WDR	120 dB
White Balance	Auto;Area white balance
Gain Control	Auto/Manual
Noise Reduction	3D NR
Motion Detection	Yes
Illumination Mode	Smart IR
Defog	Electronic defog
Digital Zoom	4×
Mirror	Yes
Privacy Masking	Off/On (8 areas, rectangle)
Certification
Certifications	CE-LVD: EN 62368-1;
	CE-EMC: EN 55032; EN 55035;
	FCC: 47 CFR FCC Part 15, Subpart B;
	UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14
Port
Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input	One channel built-in MIC (-A)
Power
Power Supply	12 VDC ± 30% (It is recommended to use a power
	adapter to supply the power for one camera)
Power Consumption	Max 7.92W (12 VDC, IR on)
Environment
Operating Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity	<95% (RH), non-condensing
Storage Temperature	–30 °C to +60 °C (–22 °F to +140 °F)
Protection	IP67; IK10
Structure
Casing Material	Metal
Product Dimensions	Φ126.0 mm × 100.0 mm (Φ4.96" × 3.94")
Net Weight	0.64 kg (1.42 lb)
Gross Weight	0.84 kg (1.85 lb)
Installation	Wall mount; ceiling mount; vertical pole mount
