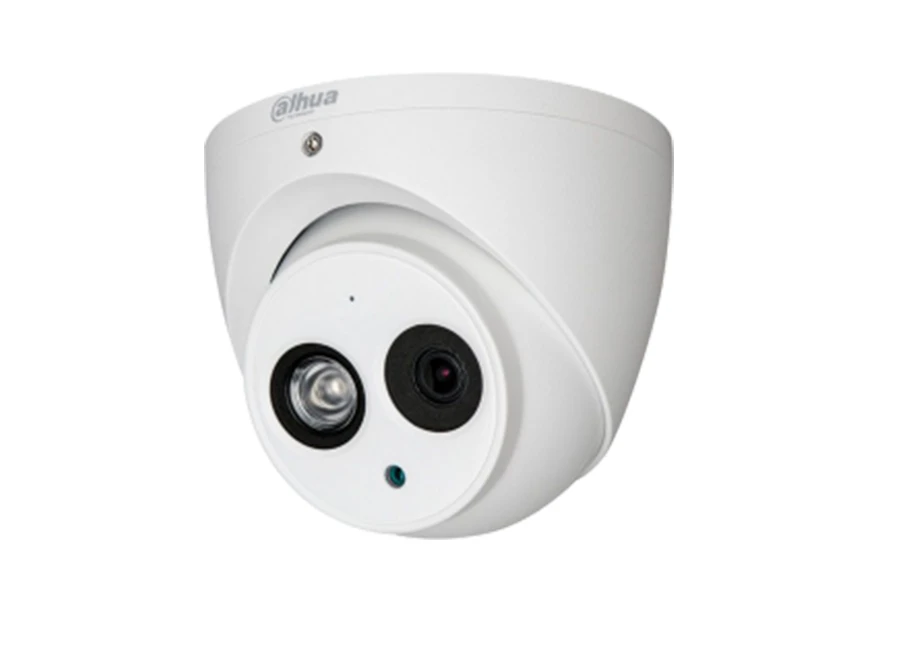

Dahua HAC HDW1801EM HDCVI Eyeball Kamera
Özellikler
- 120dB True WDR, 3D NR
- Max. 4K resolution
- CVI/CVBS/AHD/TVI switchable
- Built-in mic (-A)
- Fixed lens (3.6mm; 6mm optional)
- Max. IR length 50m, smart IR
- IP67, 12V±30%DC
Teknik Özellikler
| Camera | |||||
| Image Sensor | 1/2.7 inch CMOS | ||||
| Effective Pixels | 3840 (H)×2160 (V), 4K | ||||
| Electronic Shutter Speed | PAL: 1/3s-1/100000s | ||||
| NTSC: 1/4s-1/100000s | |||||
| Minimum Illumination | 0.03Lux/F2.0, 30IRE, 0Lux IR on | ||||
| IR Distance | Distance up to 50m (164.04ft) | ||||
| IR On/Off Control | Auto; manual | ||||
| IR LED Number | 1 | ||||
| Pan/Tilt/Rotation Range | Pan: 0°–360° | ||||
| Tilt: 0°–78° | |||||
| Rotation: 0°–360° | |||||
| Lens | |||||
| Lens Type | Fixed-focal | ||||
| Mount Type | M12 | ||||
| Focal Length | 3.6mm; 6mm | ||||
| Max. Aperture | F2.0 | ||||
| Angle of View | 3.6mm: 104°×87°×47° (diagonal×horizontal×vertical) | ||||
| 6mm: 62.4°×54.7°×31.3° (diagonal×horizontal×vertical) | |||||
| Iris type | Fixed Iris | ||||
| Close Focus Distance | 1.8m/3.6m (3.28ft/5.91ft/11.81ft) | ||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 3.6mm | 107m (351ft) | 43m (141ft) | 21m (69ft) | 11m (36ft) | |
| 6mm | 160m (525ft) | 64m (210ft) | 32m (105ft) | 16m (52ft) | |
| Video | |||||
| Video Frame Rate | CVI: 4K@15fps; 5M@20fps; 4M@25fps/30fps | ||||
| CVBS: PAL/NTSC | |||||
| AHD: 5M@20fps; 4M@25fps/30fps | |||||
| TVI: 5M@20fps; 4M@25fps/30fps | |||||
| Resolution | 4K (3840×2160); 5M (2592×1944); 4M (2560×1440); 960H (960× 576/960×480) | ||||
| Day/Night | Auto switch by ICR | ||||
| BLC | BLC/HLC/WDR | ||||
| WDR | 120dB/WDR | ||||
| White Balance | Auto; manual | ||||
| Gain Control | Auto; manual | ||||
| Noise Reduction | 2D&3D NR | ||||
| Smart IR | Yes | ||||
| Electronic Defog | Yes | ||||
| Digital Zoom | 4X | ||||
| Mirror | Off/On | ||||
| Privacy Masking | Off/On (8 area, rectangle) | ||||
| Certifications | |||||
| Certifications | CE (EN55032, EN55024, EN50130-4) | ||||
| FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) | |||||
| UL (UL60950-1+CAN/CSA C22.2 No.60950-1) | |||||
| Port | |||||
| Audio Port | Built-in mic (-A) | ||||
| Video Port | Video output choices of CVI/TVI/AHD/CVBS by one BNC port | ||||
| Power | |||||
| Power Supply | 12V±30% DC | ||||
| Power Consumption | Max 4.5W (12V DC, IR on) | ||||
| Environment | |||||
| Operating Temperature | -40°C to +60°C (-40°F to 140°F); <95% | ||||
| (non-condensation) | |||||
| Storage Temperature | -40°C to +60°C (-40°F to 140°F); <95% (non-condensation) | ||||
| Protection Grade | IP67 | ||||
| Structure | |||||
| Casing | Metal throughout the whole casing | ||||
| Dimensions | Φ106mm×93.6mm (Φ4.17"×3.69") | ||||
| Net Weight | 470g (1.04lb) | ||||
| Gross Weight | 620g (1.37lb) | ||||
