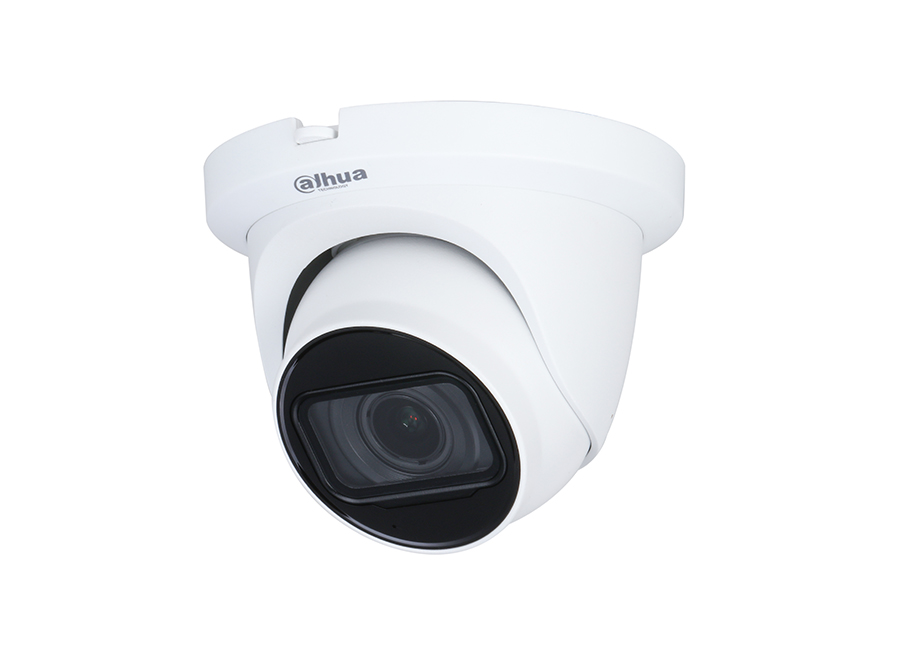

Dahua HAC-HDW1801TMQ-Z-A-DP HDCVI Eyeball Kamera
Özellikler
- * The parameters and datasheets below can only be applied to1801-S2 series.
- Max. 15 fps@4K.
- 120 dB true WDR, 3D NR.
- Smart IR Illumination.
- 60 m illumination distance.
- Super Adapt.
- Built-in MIC.
- Quick-to-install eyeball saves installation time.
- Auto focus, 2.7 mm–13.5 mm motorized lens.
- CVI/CVBS/AHD/TVI switchable.
- IP67, 24 VAC/12 VDC
Teknik Özellikler
| Camera | |||||
| Pixel | 8 MP | ||||
| Image Sensor | 4K CMOS | ||||
| Max. Resolution | 3840 (H) × 2160 (V) | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | PAL: 1/25 s–1/100000 s | ||||
| NTSC: 1/30 s–1/100000 s | |||||
| Min. Illumination | 0.01 lux@F1.5 (Color, 30 IRE) | ||||
| 0.001 lux@F1.5 (B/W, 30 IRE) | |||||
| 0 lux (Illuminator on) | |||||
| S/N Ratio | >65 dB | ||||
| Illumination Distance | 60 m (196.85 ft) | ||||
| Illuminator On/Off Control | Auto/Manual | ||||
| Illuminator Number | 2 (IR light) | ||||
| Pan/Tilt/Rotation Range | Pan: 0°–360° | ||||
| Tilt: 0°–78° | |||||
| Rotation: 0°–360° | |||||
| Lens | |||||
| Lens Type | Motorized Vari-focal | ||||
| Auto Focus | Yes | ||||
| Lens Mount | φ14 | ||||
| Focal Length | 2.7 mm–13.5 mm | ||||
| Max. Aperture | F1.5 | ||||
| Field of View | H: 114°–32° | ||||
| V: 58°–17° | |||||
| D: 138°–36° | |||||
| Iris Control | Fixed | ||||
| Close Focus Distance | 0.8 m (2.62 ft) | ||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| W | 85.3 m (279.86 ft) | 34.1 m (111.88 ft) | 17.1 m(56.10 ft) | 8.5 m(56.10 ft) | |
| T | 280.0 m (918.64 ft) | 112.0 m (367.45 ft) | 56.0 m (183.73 ft) | 28.0 m (91.87 ft) | |
| Video | |||||
| Video Frame Rate | CVI: | ||||
| PAL: 4K@15 fps; 5M@25fps; 4M@25fps; 1080p@25 fps; | |||||
| NTSC: 4K@15 fps; 5M@20 fps; 4M@30 fps; 1080p@30 fps; | |||||
| AHD: 4K@15 fps; | |||||
| TVI: 4K@15 fps | |||||
| CVBS: | |||||
| PAL: 960H | |||||
| NTSC: 960H | |||||
| Resolution | 4K (3840 x 2160); | ||||
| 5M (2880 x 1620); | |||||
| 4M (2560 x 1440); | |||||
| 1080P (1920 x 1080); | |||||
| 960H (960 x 576/960 x 480) | |||||
| Day/Night | Auto(ICR)/Color/B/W | ||||
| BLC | BLC; HLC; WDR; HLC-Pro | ||||
| WDR | 120 dB | ||||
| White Balance | Auto;Area white balance | ||||
| Gain Control | Auto/Manual | ||||
| Noise Reduction | 3D NR | ||||
| Motion Detection | Yes | ||||
| Illumination Mode | Smart IR | ||||
| Defog | Electronic defog | ||||
| Digital Zoom | 4× | ||||
| Mirror | Yes | ||||
| Privacy Masking | Off/On (8 areas, rectangle) | ||||
| Certification | |||||
| Certifications | CE-LVD: EN 62368-1; | ||||
| CE-EMC: EN 55032; EN 55035; | |||||
| FCC: 47 CFR FCC Part 15, Subpart B; | |||||
| UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14 | |||||
| Port | |||||
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port | ||||
| Audio Input | One channel built-in MIC (-A) | ||||
| Power | |||||
| Power Supply | 12 VDC ± 10%;24 VAC ± 25%(It is recommended to use a power adapter to supply the power for one camera) | ||||
| Power Consumption | Max 9.5W (12 VDC, IR on) | ||||
| Environment | |||||
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) | ||||
| Operating Humidity | <95% (RH), non-condensing | ||||
| Storage Temperature | –30 °C to +60 °C (–22 °F to +140 °F) | ||||
| Protection | IP67 | ||||
| Structure | |||||
| Casing Material | Metal dome + metal enclosure + plastic mounting plate | ||||
| Product Dimensions | Φ135.0 mm × 109.0 mm (Φ5.31" × 4.29") | ||||
| Net Weight | 0.55 kg (1.21 lb) | ||||
| Gross Weight | 0.71 kg (1.57 lb) | ||||
| Installation | Wall mount; ceiling mount; vertical pole mount | ||||
