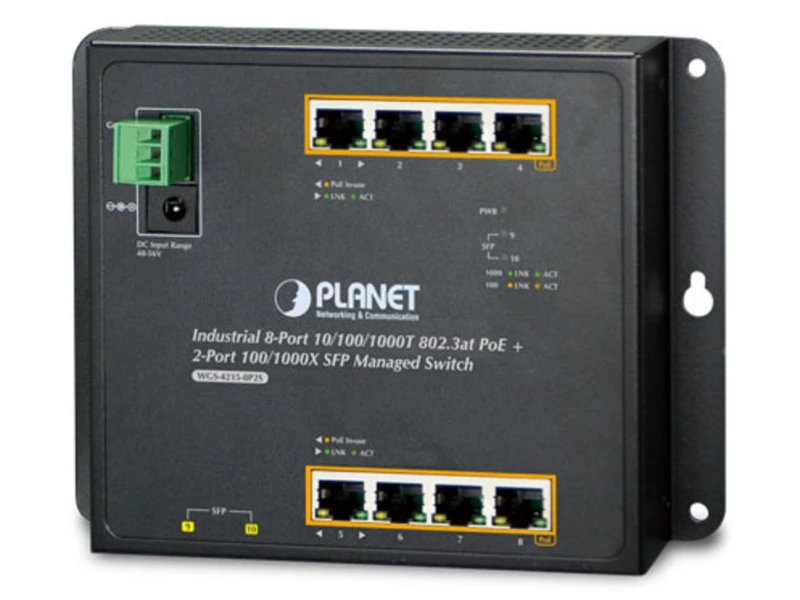

Planet WGS 4215 8P2S 10/100/1000 Endüstriyel PoE Switch
Teknik Özellikler
| Physical Port |
| 8-Port 10/100/1000BASE-T Gigabit RJ45 copper with IEEE 802.3at PoE+ Injector function |
| 2 100/1000BASE-X mini-GBIC/SFP slots |
| Power over Ethernet |
| Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE |
| Backward compatible with IEEE 802.3af Power over Ethernet |
| Up to 8 ports of IEEE 802.3af/802.3at devices powered |
| Supports PoE power up to 36 watts for each PoE port |
| Auto detects powered device (PD) |
| Circuit protection prevents power interference between ports |
| Remote power feeding up to 100 meters |
| PoE management |
| Total PoE power budget control |
| Per port PoE function enable/disable |
| PoE port power feeding priority |
| Per PoE port power limitation |
| PD classification detection |
| PD alive check |
| PoE schedule |
| Industrial Case and Installation |
| Compact size with fixed wall-mounted, magnetic wall-mounted or DIN-rail design |
| IP30 metal case protection |
| Supports -40 to 75 degrees C operating temperature |
| Supports ESD 8KV DC Ethernet protection |
| Dual power input design |
| 48V~56V DC wide power input with polarity reverse protect function |
| 3-pin terminal block or DC jack connector |
| Switching |
| Hardware based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation and auto MDI/MDI-X |
| Features Store-and-Forward mode with wire-speed filtering and forwarding rates |
| IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation |
| 8K MAC address table size |
| 10K jumbo frame |
| Automatic address learning and address aging |
| Supports CSMA/CD protocol |
| Layer 2 Features |
| Supports VLAN |
| IEEE 802.1Q tagged VLAN |
| Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support |
| Protocol VLAN |
| Voice VLAN |
| Private VLAN (Protected port) |
| Management VLAN |
| GVRP |
| Supports Spanning Tree Protocol |
| STP (Spanning Tree Protocol) |
| RSTP (Rapid Spanning Tree Protocol) |
| MSTP (Multiple Spanning Tree Protocol) |
| STP BPDU Guard, BPDU Filtering and BPDU Forwarding |
| Supports Link Aggregation |
| IEEE 802.3ad Link Aggregation Control Protocol (LACP) |
| Cisco ether-channel (static trunk) |
| Provides port mirror (many-to-1) |
| Loop protection to avoid broadcast loops |
| Quality of Service |
| Ingress/Egress Rate Limit per port bandwidth control |
| Traffic classification |
| IEEE 802.1p CoS |
| TOS/DSCP/IP precedence of IPv4/IPv6 packets |
| Strict priority and Weighted Round Robin (WRR) CoS policies |
| Multicast |
| Supports IPv4 IGMP snooping v2, v3 |
| Supports IPv6 MLD snooping v1, v2 |
| IGMP querier mode support |
| IGMP snooping port filtering |
| MLD snooping port filtering |
| Security |
| Storm Control support |
| Broadcast/Unknown unicast/Unknown multicast |
| Authentication |
| IEEE 802.1X port-based network access authentication |
| Built-in RADIUS client to cooperate with the RADIUS servers |
| DHCP Option 82 |
| RADIUS/TACACS+ authentication |
| Access Control List |
| IPv4/IPv6 IP-based ACL |
| IPv4/IPv6 IP-based ACE |
| MAC-based ACL |
| MAC-based ACE |
| MAC Security |
| Static MAC |
| MAC filtering |
| Port security for source MAC address entries filtering |
| DHCP snooping to filter distrusted DHCP messages |
| Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding |
| IP source guard prevents IP spoofing attacks |
| DoS attack prevention |
| SSH/SSL |
| Management |
| IPv4 and IPv6 dual stack management |
| Switch Management Interface |
| IPv4/IPv6 Web switch management |
| Telnet Command Line Interface |
| SNMP v1, v2c, v3 |
| SSH and SSL secure access |
| User privilege levels control |
| Built-in Trivial File Transfer Protocol (TFTP) client |
| Static and DHCP for IP address assignment |
| System Maintenance |
| Firmware upload/download via HTTP/TFTP |
| Configuration upload/download through HTTP/TFTP |
| Hardware reset button for system reboot or reset to factory default |
| SNTP Network Time Protocol |
| Cable diagnostics |
| Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED |
| SNMP trap for interface Link-up and Link-down notification |
| Event message logging to remote Syslog server |
| Four RMON groups (history, statistics, alarms and events) |
| PLANET Smart Discovery Utility |
Teknik Kısa
PoE : PoE Plus
Port Hızı : 1 GBit
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
PoE Port Sayısı :
8 Port
8 Port Çalışma Mesafesi : 100Mt.
Montaj Tipi : Wall Mount
PoE Güç Bütçesi : 200-400 Watt
