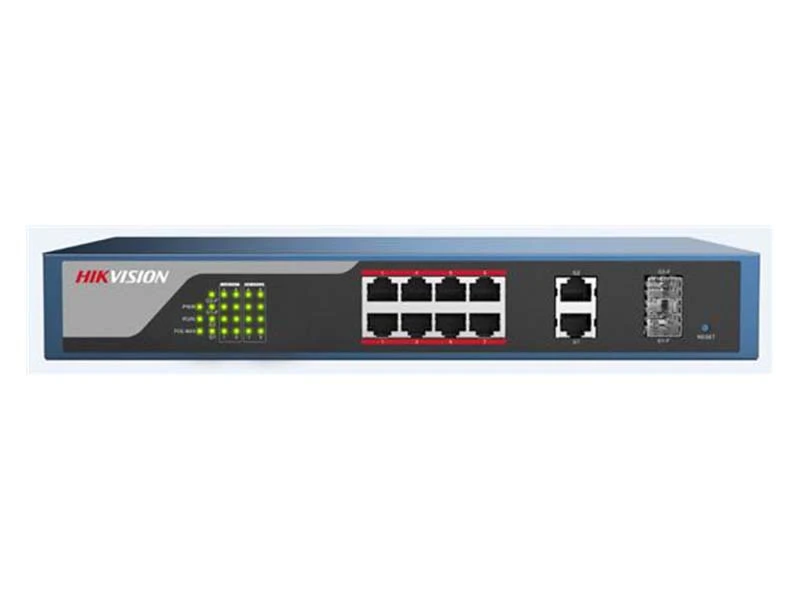

Hikvision DS 3E1310P E PoE Switch

Özellikler

802.3af/at PoE standard
8-core power supply technology, reducing the power circuit loss
Data monitor and control for the important ports
EXTEND mode available to extend the network cable transmission distance to 250 meters
Buffer optimization to guarantee the video data transmission
VLAN configurable
Port trunk
STP, multicast and port mirroring
QoS
SNMP
WEB management
Store-and-forward switching
IEEE802.3, IEEE802.3u and IEEE802.3x network standards available
MTBF (Mean Time Between Failure) ≥ 100,000 hours
All-metal enclosed construction
Table-mounted and rack-mouted design for convenient installation

Teknik Özellikler

Ports
10/100M RJ45	8
10/100/1000M RJ45	2
1000M SFP	2 (multiplex)
Port of high priority	Port 1 to 8
Performance
Store-and-forward	Support
MAC address table	4K
MAC address learning	Automatic learning/Aging
Backplane bandwidth	5.4 Gbps
Power Over Ethernet
PoE Standard	IEEE 802.3af, IEEE802.3at
PoE cable core	Supports 8-core power supply and simultaneous power supply via the 1236 and 4578 line order.
PoE port	Port 1 to 8
Port max. power	30W
Switch max. power	123W
General
Power Supply	100 to 240 VAC, 50/60Hz
Working Temperature	0 oC to +40 oC (+32 oF to +104 oF)
Working Humidity	10% to 90% (Relative humidity, without condensation)
Storage Temperature	-40 oC to +70 oC (-40 oF to +158 oF)
Storage Humidity	5% to 90% (Relative humidity, without condensation)
Lighting Protection Grade
For port	4 KV
For power supply	6 KV
Data Transfer Rate
Ethernet	10 Mbps (half-duplex)/20 Mbps (full-duplex)
Fast Ethernet	100 Mbps (half-duplex)/200 Mbps (full-duplex)
Gigabit Ethernet	2000 Mbps (full-duplex)
Network Media
Ethernet	UTP/STP of CAT3 or above
Fast Ethernet	UTP/STP of CAT5 or above
Gigabit Ethernet	Recommended UTP/STP of CAT5e or CAT6
1000 Base-SX	MMF (Multi-Mode Fiber)
1000 Base-LX	MMF (Multi-Mode Fiber) or SMF (Single Mode Fiber)
Parameters
Network Standard	IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE 802.3af, IEEE802.3at, IEEE 802.3x, IEEE802.3z
Port	When the EXTEND mode is enabled, the maximum data transmission (for 10 Mbps full/half duplex communication only) and power supply distance can be extended to 250 meters via CAT5e twisted pair or above
PoE	IEEE 802.3at/IEEE 802.3af
	Enable/Disable PoE
	PoE over-temperature protection
	Display power supply status and output power of the PoE port
	Dynamic power supply of the PoE port. Power supply priority (Port 1 > Port 2 > … > Port 16… > Port 24)
Security Feature	MAC address binding
VLAN	One-key enable VLAN
	Port VLAN (Max. 18/26 groups can be configured)
	IEEE 802.1Q VLAN (Max. 31 groups can be configured)
Port Trunk	3 groups:
	Port 1, 2, 3 and 4
	Port 5, 6, 7 and 8
	Port G1/G1-F and G2/G2-F
STP (Spanning Tree)	IEEE 802.1d Spanning Tree Protocol
STP (Spanning Tree)	IEEE 802.1w RSTP (Rapid Spanning Tree Protocol)
Multicast	IGMP Snooping and IGMP v1/v2
Mirroring	N: 1 port mirroring
QoS	FIFO (First-in First-out)
	SP (Strict Priority)
	WP (Weighted Priority)
MAC Address Management	MAC address aging and static MAC address configuration
Loading and Upgrade	HTTP upgrade
Loading and Upgrade	Import/Export configuration file
Management and Maintenance	SNMP v1/v2
Management and Maintenance	WEB management
