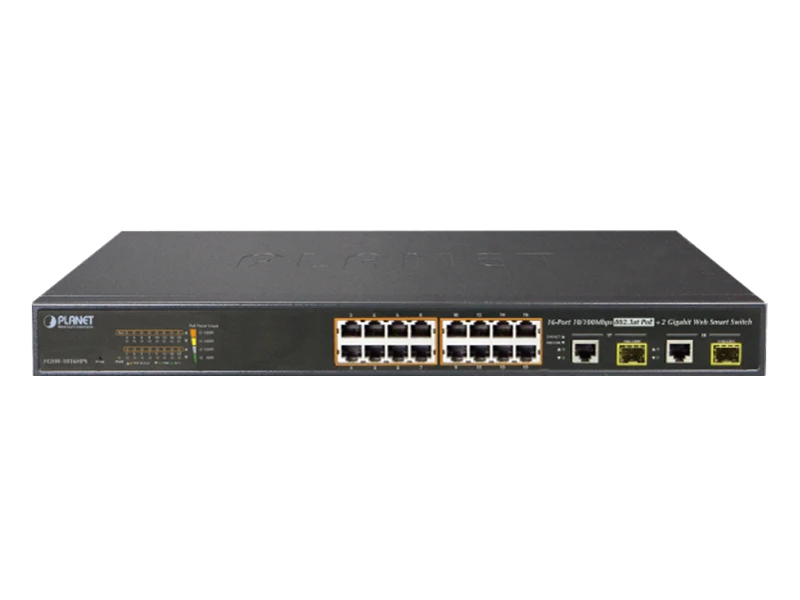

Planet FGSW 1816HPS 10/100 PoE Switch

Teknik Özellikler

Hardware Specifications
10/100Mbps Copper Ports	16 10/100Base-TX RJ-45 Auto-MDI/MDI-X ports
Gigabit Copper Ports	2 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X ports
SFP/mini-GBIC Slots	2 1000Base-X SFP interfaces, shared with Port-17 to Port-18
Switch Architecture	Store-and-Forward
Switch Fabric	7.2Gbps / non-blocking
Throughput	5.35Mpps@64Bytes
Address Table	4K entries, automatic source address learning and ageing
Share Data Buffer	2.75Mb embedded memory for packet buffers
Flow Control	IEEE 802.3x pause frame for full-duplex
Flow Control	Back pressure for half-duplex
Maximum Transmit Unit size (MTU size)	1536 Bytes
Reset Button	< 5 sec: System reboot
Reset Button	> 5 sec: Factory Default
Dimensions (W x D x H)	440 x 200 x 44.5 mm, 1U height
Weight	2.55kg
LED	System:
	Power (Green)
	10/100Base-TX RJ45 Interfaces (Port1 to Port16):
	10/100Mbps LNK/ACT (Green)
	PoE In-Use (Orange)
	10/100/1000Base-T RJ45 / SFP Interfaces (Port17 to Port18):
	LNK/ACT (Green)
	100/1000 (Green)
	PoE Usage
	50W, 100W, 150W, 190W (Orange)
Cable Twisted-Pair	10Base-T: 2-Pair UTP CAT. 3, 4, 5, up to 100 meters
	100Base-TX: 2-Pair UTP CAT. 5, 5e up to 100 meters
	1000Base-T: 4-Pair UTP CAT. 5e, 6 up to 100 meters
Cable Fiber-Optic Cable	1000Base-SX :
	50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 550m
	(varying on SFP module)
	1000Base-LX :
	9/125μm single-mode fiber optic cable, up to 10/20/30/40/50/70/120
	kilometers (varying on SFP module)
Power Requirements	100~240V AC, 50/60Hz, 4A
Power Consumption	Max. 240 watts / 816 BTU
ESD Protection	2KV DC
Power over Ethernet
PoE Standard	IEEE 802.3af / 802.3at PoE / PSE
PoE Power Supply Type	End-span
PoE Power Output	Per Port 52V DC, Max. 30.8 watts
Power Pin Assignment	1/2(+), 3/6(-)
PoE Power Budget	220 watts (max.)
PoE Ability PD @ 7 watts	16 units
PoE Ability PD @ 15.4 watts	14 units
PoE Ability PD @ 30.8 watts	7 units
Layer 2 Functions
Port Configuration	Port disable / enable
	Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
	Flow Control disable / enable
Port Status	Display each port’s speed duplex mode, link status, flow control status, auto negotiation status and trunk status
Port Mirroring	TX / RX / Both
Port Mirroring	Many-to-1 monitor
VLAN	802.1Q tagged-based VLAN, up to 32 VLAN groups, out of 4094 VLAN IDs
	Port-based VLAN, up to 18 VLAN groups
	MTU VLAN
Link Aggregation	2 groups of 4-Port 10/100Base-TX trunk supported
Link Aggregation	1 group of 2-Port 10/100/1000Base-T trunk supported
QoS	Allow to assign low / high priority on each port
QoS	First-In-First-Out, All-High-before-Low, Weight-Round-Robin QoS policy
IGMP Snooping	IGMP (v1/v2) Snooping, up to 32 multicast groups
Security Control	MAC address binding
Security Control	TCP & UDP filter
Management Functions
Basic Management Interfaces	Web Browser, SNMP v1
Standards Conformance
Regulation Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3z Gigabit Ethernet
	IEEE 802.3x Full-duplex flow control
	IEEE 802.1Q VLAN
	IEEE 802.1p QoS
	IEEE 802.1D Spanning Tree Protocol
	IEEE 802.1w Rapid Spanning Tree Protocol
	IEEE 802.3af Power over Ethernet
	IEEE 802.3at Power over Ethernet Plus
Environment
Operating	Temperature: 0 ~ 50 degrees C
	Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -10 ~ 70 degrees C
	Relative Humidity: 5 ~ 95% (non-condensing)
