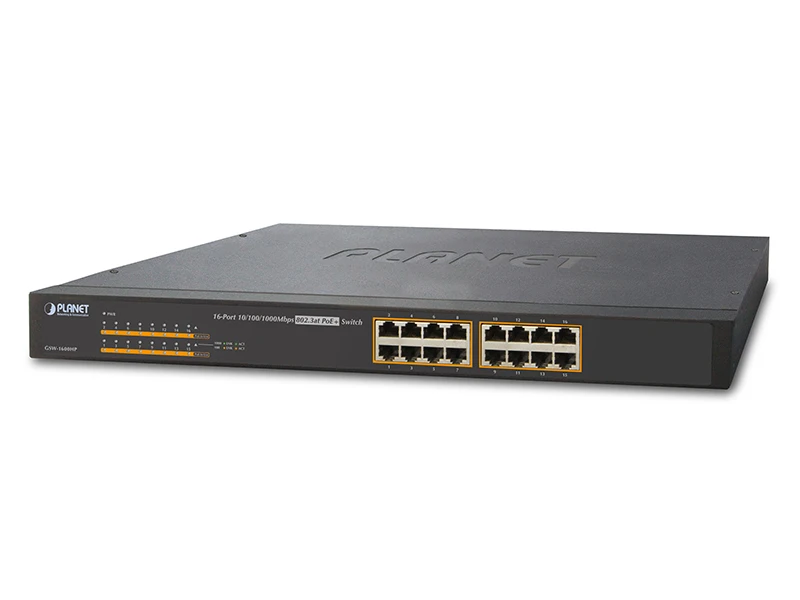

1000 PoE Switch

Teknik Özellikler

Donanım Özellikleri
Network Port	16 10/100/1000Base-T auto-MDI/MDI-X RJ-45 ports
PoE Inject Port	16-Port with 802.3af / 802.3at PoE injector function
LED Display	System
	Power (Green)
	PoE Ethernet Interfaces
	PoE In-Use (Orange)
	10/100/1000Base-T Ports
	1000 (LNK/ACT, Green), 10/100 (LNK/ACT, Orange)
Switch Architecture	Store and Forward switch architecture
MAC Adres Tablosu	8K MAC address table with auto learning function
Switch Fabric	32Gbps
Switch Throughput	23.8Mpps@64Bytes
Jumbo Packet Size	9K Bytes
Akış Kontrolü	Back pressure for half-duplex. IEEE 802.3x pause frame for full-duplex
Güç Gereksinimi	AC 100~240V, 50/60Hz, 3.5A max.
Güç Tüketimi	Max. 260 watts / 885 BTU
Ölçüler (W x D x H)	445 x 207 x 45 mm (1U height)
Ağırlık	2.54kg
Power over Ethernet
PoE Standard	IEEE 802.3af Power over Ethernet / PSE
	IEEE 802.3at Enhancement Power over Ethernet / PSE
PoE Power Output	Per Port 52V DC, 300mA. max. 15.4 watts (IEEE 802.3af)
	Per Port 52V DC, 590mA. max. 30 watts (IEEE 802.3at)
PoE Power Budget	220 watts
Number of PD, 7Watts	16
Number of PD, 15.4Watts	14
Number of PD, 30.8Watts	7
Çevresel Özellikler
Çalışma Sıcaklığı	0 ~ 50 degrees C
Saklama Sıcaklığı	-40 ~ 70 degrees C
Çalışma Nem Oranı	5 ~ 95%, relative humidity, non-condensing
Saklama Nem Oranı	5 ~ 95%, relative humidity, non-condensing
Standart Uygunluğu
Standard Compliance	IEEE 802.3	Ethernet
	IEEE 802.3u	Fast Ethernet
	IEEE 802.3x	Flow Control
	IEEE 802.3af	Power over Ethernet
	IEEE 802.3at	Enhanced Power over Ethernet
	IEEE 802.3az	Pre-Energy-Efficient Ethernet
Yönetmelik Uygunluğu	FCC Class A, CE
