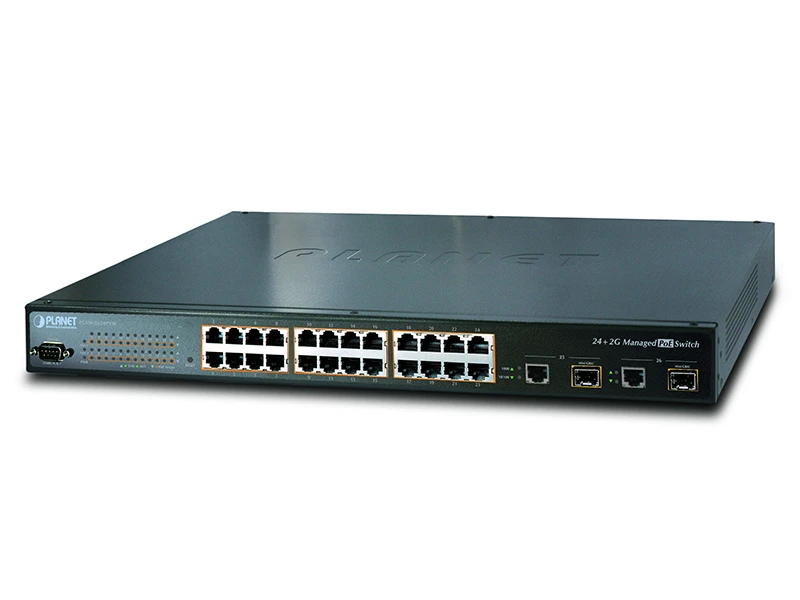

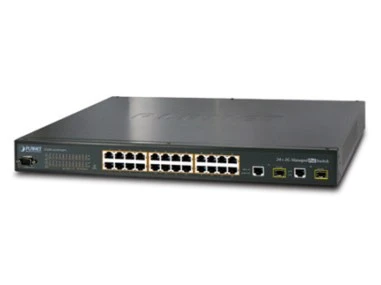

Planet FGSW 2620PVM 10/100 Gigabit PoE Switch
Teknik Özellikler
| Donanım Özellikleri | |
| 10/100Mbps Bakır Portlar | 24 10/ 100Base-TX RJ-45 Auto-MDI/MDI-X ports |
| 1000Mbps Bakır Portlar | 2 10/100/1000Mbps RJ-45 Auto-MDI/MDI-X ports |
| SFP/mini-GBIC Slot | 2 1000Base-SX/LX, shared with Port-25~Port-26 |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 8.8Gbps / non-blocking |
| Switch Throughput | 6.547Mpps @64Bytes |
| Adres Tablosu | 8K entries |
| Share Data Buffer | 512Kbytes |
| Maximum Frame Size | 9K Bytes |
| Akış Kontrolü | Back pressure for Half-Duplex |
| IEEE 802.3x Pause Frame for Full-Duplex | |
| LED | Power, FAN Alarm |
| Link/Activity (Green) | |
| PoE In-Use (Amber) | |
| 1000 LNK / ACT(Green) | |
| 10/100 LNK / ACT(Green) | |
| Reset | < 5 sec: System reboot |
| > 5 sec: Factory Default | |
| Ölçüler | 440 x 265 x 44 mm, 1U height |
| Ağırlık | 3.6kg |
| Güç Gereksinimi | 100~240V AC, 50-60 Hz |
| Güç Tüketimi | 210 Watts maximum / 717 BTU/hr maximum |
| Power over Ethernet | |
| PoE Standartı | IEEE 802.3af Power over Ethernet / PSE |
| PoE Güç Kaynağı | End-Span |
| PoE Power Output | Per Port 48V DC, 350mA . Max. 15.4 Watts |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 190 Watts |
| Max. number of Class 2 PD | 24 |
| Max. number of Class 3 PD | 12 |
| Layer 2 Fonksiyonu | |
| Yönetim Arayüzü | Console, Telnet, Web Browser, SSL, SNMPv1, v2c |
| Port Konfigürasyonu | Port disable/enable |
| Auto-negotiation | |
| 10/100/1000Mbps full and half duplex mode selection | |
| Flow Control disable / enable | |
| Port Durumu | Display each port's speed duplex mode, link status and Flow control status. |
| Auto negotiation status, trunk status. | |
| Bandwidth Kontrol | Ingress / Egress Rate Control |
| Allow to configure per 128Kbps | |
| VLAN | IEEE 802.1Q Tag-based VLAN |
| Port-based VLAN | |
| Q-in-Q tunneling | |
| Up to 255 VLANs groups, out of 4041 VLAN IDs | |
| Link Aggregation | Static Port Trunk |
| IEEE 802.3ad LACP (Link Aggregation Control Protocol) | |
| Supports 13 groups of 8-Port trunk support | |
| Quality of Service | Traffic classification based on: |
| -Port priority | |
| -802.1p priority | |
| -DSCP/TOS field in IP Packet | |
| IGMP Snooping | IGMP (v1/v2) Snooping, up to 256 multicast Groups |
| IGMP Querier support | |
| Port Mirror | RX / TX / Both |
| 1-to-1 mirroring | |
| Güvenlik | IEEE 802.1x Port-Based Network access control |
| Port Security | |
| Static MAC | |
| MAC Filtering | |
| MAC / IP Binding | |
| Erişim Kontrol Listesi | IP-Based Layer 3 / Layer 4 ACL |
| Up to 220 ACL rule entries | |
| SNMP MIBs | RFC-1213 MIB-II |
| RFC-2863 Interface MIB | |
| RFC-2665 EtherLike MIB | |
| RFC-1493 Bridge MIB | |
| RFC-2819 RMON MIB (Group 1, 2, 3,9) | |
| RFC-2737 Entity MIB | |
| POWER-ETHERNET-MIB | |
| Standart Uygunluğu | |
| Standartlar | FCC Part 15 Class A, CE |
| Standart Uygunluğu | IEEE 802.3: 10Base-T |
| IEEE 802.3u: 100Base-TX | |
| IEEE 802.3z: 1000Base- SX/LX | |
| IEEE 802.3ab: 1000Base-T | |
| IEEE 802.3x: Flow Control | |
| IEEE 802.3ad: Port trunk with LACP | |
| IEEE 802.1d: Spanning tree protocol | |
| IEEE 802.1w: Rapid spanning tree protocol | |
| IEEE 802.1p: Class of service | |
| IEEE 802.1Q: VLAN Tagging | |
| IEEE 802.1x: Port Authentication Network Control | |
| IEEE 802.3af: Power over Ethernet | |
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 2
Aktarım Türü : Gbit Fiber
PoE Güç Bütçesi : 130-200 Watt
PoE Port Sayısı :
24 Port
24 Port
