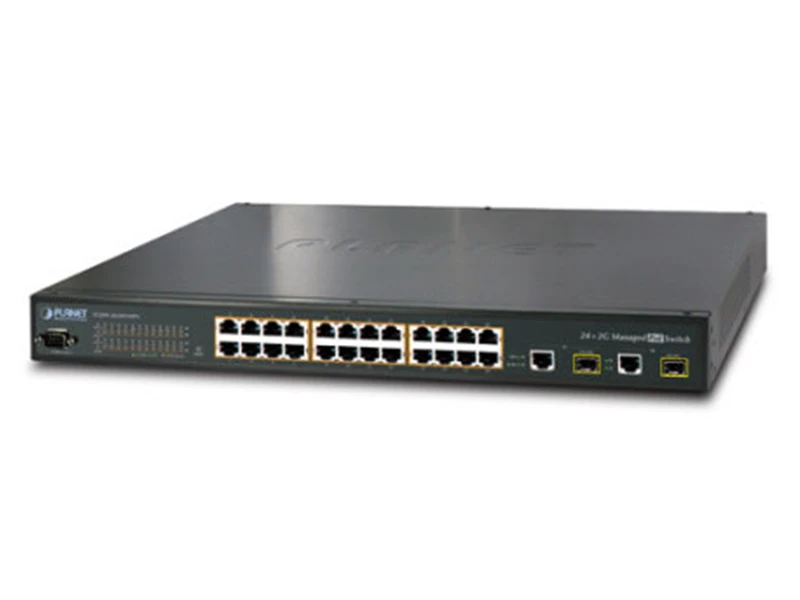

Planet FGSW 2620VMP4 10/100 Gigabit PoE Switch
Teknik Özellikler
| Donanım Özellikleri | |
| 10/100Mbps Bakır Portlar | 24 10/100Base-TX RJ-45 Auto-MDI / MDI-X ports |
| 1000Mbps Bakır Portlar | 2 10/100/1000Mbps RJ-45 Auto-MDI / MDI-X ports |
| SFP / mini-GBIC Slot | 2 1000Base-SX/LX/BX, shared with Port-25~Port-26 |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 12.8Gbps / non-blocking |
| Switch Throughput | 9.5Mpps @64Bytes |
| Address Tablosu | 8K entries |
| Data Aktarım Hızı | 512Kbytes |
| Maximum Frame Size | 9K Bytes |
| Akış Kontrolü | Back pressure for Half-Duplex |
| IEEE 802.3x Pause Frame for Full-Duplex | |
| LED | Power, FAN Alarm |
| Link / Activity (Green) | |
| PoE In-Use (Amber) | |
| 1000 LNK / ACT(Green) | |
| 10/100 LNK / ACT(Green) | |
| Ölçüler (W x D x H) | 440 x 300 x 44 mm, 1U height |
| Ağırlık | 4.2kg |
| Reset Button | < 5 secs: System reboot |
| > 10 secs: Factory Default | |
| Güç Gereksinimi | 100 ~ 240VAC, 50 / 60Hz, Auto-sensing |
| Güç Tüketimi | 400 Watts / 1372.4 BTU |
| Power over Ethernet | |
| PoE Standardı | IEEE 802.3af Power over Ethernet / PSE |
| PoE Power Supply Tip | End-Span |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Output | Per Port 48V DC, 350mA . Max. 15.4 Watts |
| PoE Power Budget | 380 Watts |
| Max. number of Class 2 PD | 24 |
| Max. number of Class 3 PD | 24 |
| Layer 2 Fonksiyonu | |
| Management Interface | Console, Telnet, Web Browser, SSL, SNMPv1, v2c |
| Port Konfigürasyonu | Port disable / enable |
| Auto negotiation | |
| 10/100/1000Mbps full and half duplex mode selection | |
| Flow Control disable / enable | |
| Port Durumu | Display each port’s speed duplex mode, link status and Flow control status |
| Auto negotiation status, trunk status | |
| Port Mirroring | TX / RX / Both |
| 1 to 1 monitor | |
| Bant Genişliği | Ingress / Egress Rate Control |
| Allow to configure per 128Kbps | |
| VLAN | IEEE 802.1Q Tag-based VLAN |
| Port-based VLAN | |
| Q-in-Q tunneling | |
| Up to 255 VLANs groups, out of 4041 VLAN IDs | |
| Link Aggregation | Supports 13 groups of 8-Port trunk, IEEE 802.3ad LACP |
| QoS | Traffic classification based on Port priority, 802.1p priority, DSCP / TOS field in IP Packet |
| IGMP Snooping | IGMP (v1/v2) Snooping, up to 256 multicast groups |
| Erişim Kontrol Listesi | IP-Based ACL / MAC-Based ACL |
| Up to 220 ACL rule entries | |
| SNMP MIBs | RFC-1213 MIB-II |
| RFC-2863 Interface MIB | |
| RFC-2665 EtherLike MIB | |
| RFC-1493 Bridge MIB | |
| RFC-2819 RMON MIB (Group 1, 2, 3,9) | |
| RFC-2737 Entity MIB | |
| Power-over-Ethernet-MIB | |
| Standart Uygunluğu | |
| Yönetmelik Uygunluğu | FCC Part 15 Class A, CE |
| Güvenlik | UL, cUL |
| Standart Uygunluğu | IEEE 802.3：10Base-T |
| IEEE 802.3u：100Base-TX | |
| IEEE 802.3z：1000Base- SX/LX | |
| IEEE 802.3ab：1000Base-T | |
| IEEE 802.3x：Flow Control and Back Pressure | |
| IEEE 802.3ad：Port trunk with LACP | |
| IEEE 802.1D：Spanning Tree Protocol | |
| IEEE 802.1w：Rapid Spanning Tree Protocol | |
| IEEE 802.1p：Class of Service | |
| IEEE 802.1Q：VLAN Tagging | |
| IEEE 802.1x：Port Authentication Network Control | |
| RFC 768：UDP | |
| RFC 793：TFTP | |
| RFC 791：IP | |
| RFC 792：ICMP | |
| RFC 2068：HTTP | |
| RFC 1112：IGMP version 1 | |
| RFC 2236：IGMP version 2 | |
| Çevresel Özellikler | |
| Çalışma | Sıcaklığı: 0 ~ 50 Degree C |
| Nem Oranı: 20 ~ 95% (non-condensing) | |
| Saklama | Sıcaklığı: -10 ~ 85 Degree C |
| Nem Oranı: 20 ~ 95% (non-condensing) | |
Planet FGSW 2620VMP4 10/100 Gigabit PoE Switch Pdf Dosyası387 KB
Teknik Kısa
PoE : PoE
Port Hızı : 100 Mbps
Yönetilebilirlik : Yönetilebilir Layer 2
Aktarım Port Sayısı : 2
Aktarım Türü : Combo
Çalışma Mesafesi : 100Mt.
Montaj Tipi : Rack Mount
PoE Port Sayısı :
24 Port
24 Port PoE Güç Bütçesi : 200-400 Watt
