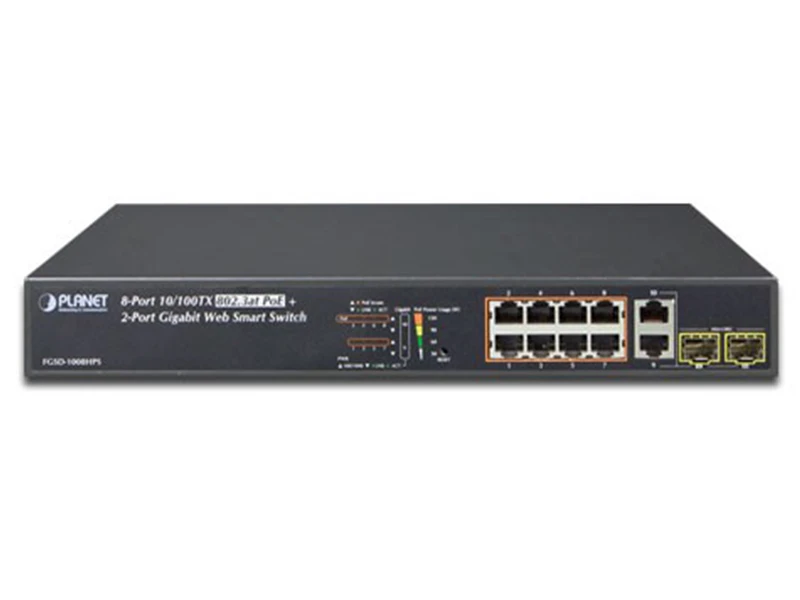

Planet FGSD 1008HPS 10/100 PoE Switch

Özellikler

Physical Port

8-port 10/100BASE-TX RJ45 copper with PoE in-line supported
2-port 10/100/1000BASE-T RJ45 copper
2 1000BASE-X mini-GBIC/SFP slots to share with Port-9 to Port-10
Reset button for system management

PoE

Complies with IEEE 802.3at High Power over Ethernet End-span PSE
Complies with IEEE 802.3af Power over Ethernet End-span PSE
Up to 8 IEEE 802.3at / 802.3af devices powered
125 watts PoE budget
Supports PoE Power up to 30.8 watts for each PoE port
Detects powered device (PD) automatically
Circuit protection prevents power interference between ports
Remote power feeding up to 100m
PoE Management
- Per port PoE function enable/disable- PoE Port Power feeding priority- Per PoE port power limit- PD classification detection- PoE Power sequential

Layer 2 Features

Auto-MDI/MDI-X detection on each RJ45 port
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
Supports broadcast storm control
Supports VLAN
- IEEE 802.1Q tag-based VLAN, up to 30 VLANs groups, out of 4094 VLAN IDs- Port-based VLAN, up to 10 VLAN groups- MTU VLAN (Multi-tenant Unit VLAN)
Supports Link Aggregation
- 802.3ad Link Aggregation Control Protocol (LACP)- Cisco ether-channel (static trunk)- Maximum 3 trunk / LACP groups, up to 4 ports per trunk / LACP group
Supports Spanning Tree Protocol
- STP, IEEE 802.1D Spanning Tree Protocol- RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
Port mirroring to monitor the incoming or outgoing traffic on a particular port, many-to-1
Loopback protection to avoid broadcast loops

Quality of Service

Ingress / Egress Rate Limit per port bandwidth control
2 priority queues on all switch ports
Traffic classification
- Port-based priority- IEEE 802.1p-based priority- IP TOS / DSCP-based priority- TCP / UDP port-based QoS
Strict priority and Weighted Round Robin (WRR) CoS policies

Multicast

Supports IGMP Snooping v1 and v2

Security

Physical port to MAC address binding
TCP/UDP port number filter: Forwarding or discarding typical network applications

Management

Switch Management Interfaces
- Web switch management- SNMP v1 / v2c switch management
Supports DHCP Option82 and DHCP Relay
Firmware upload/download via HTTP
Configuration upload/download through HTTP
Hardware reset button for system reboot or reset to factory default
PLANET Smart Discovery Utility

Teknik Özellikler

Hardware Specifications
10/100Mbps Copper Ports	8 10/100BASE-TX RJ45 Auto-MDI/MDI-X ports
Gigabit Copper Ports	2 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X ports
SFP/mini-GBIC Slots	2 1000BASE-X SFP interfaces, shared with Port-9 to Port-10
Switch Architecture	Store-and-Forward
Switch Fabric	5.6Gbps / non-blocking
Throughput	4.16Mpps@64Bytes
Address Table	4K entries, automatic source address learning and ageing
Shared Data Buffer	2.75Mb embedded memory for packet buffers
Flow Control	IEEE 802.3x pause frame for full-duplex
Flow Control	Back pressure for half-duplex
Maximum Transmit Unit	1536 Bytes
Reset Button	< 5 sec: System reboot
Reset Button	> 5 sec: Factory default
Dimensions (W x D x H)	330 x 155 x 43.5 mm, 1U height
Weight	1.5kg
LED	System:
	Power (Green)
	10/100BASE-TX RJ45 Interfaces (Port1 to Port8):
	10/100Mbps LNK/ACT (Green)
	PoE In-Use (Orange)
	10/100/1000BASE-T RJ45 / SFP Interfaces (Port 9 to Port10):
	LNK/ACT (Green)
	100/1000 (Green)
	PoE Usage
	30W, 60W, 90W, 120W (Orange)
Cable	Twisted-Pair
	10BASE-T: 2-Pair UTP CAT. 3, 4, 5, up to 100 meters
	100BASE-TX: 2-Pair UTP CAT. 5, 5e up to 100 meters
	1000BASE-T: 4-Pair UTP CAT. 5e, 6 up to 100 meters
	Fiber-Optic Cable
	1000BASE-SX :
	50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 550m (varying on SFP module)
	1000BASE-LX :
	9/125μm single-mode fiber optic cable, up to 10/20/30/40/50/60/70/120 kilometers (varying on SFP module)
Power Requirements	100~240V AC, 50/60Hz, 2A
Power Consumption	Max. 150 watts / 511BTU
ESD Protection	Contact Discharge 8KV DC
ESD Protection	Air Discharge 8KV DC
Power over Ethernet
PoE Standard	IEEE 802.3af / 802.3at PoE / PSE
PoE Power Supply Type	End-span
PoE Power Output	Per Port 52V DC, Max. 30.8 watts
Power Pin Assignment	1/2(+), 3/6(-)
PoE Power Budget	125 watts (max.)
PoE Ability	PD @ 7 watts 8 units
	PD @ 15.4 watts 8 units
	PD @ 30.8 watts 4 units
Layer 2 Functions
Port Management	Port disable / enable
	Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
	Flow Control disable / enable
	Bandwidth Control / Broadcast Storm Control
Port Status	Display each port’s speed duplex mode, link status, flow control status, auto negotiation status
Port Mirroring	TX / RX / Both
Port Mirroring	Many-to-1 monitor
VLAN	802.1Q tagged-based VLAN, up to 30 VLAN groups, out of 4094 VLAN IDs
	Port-based VLAN, up to 10 VLAN groups
	MTU VLAN
QoS	Allow to assign low / high priority on each port
QoS	First-In-First-Out, All-High-before-Low, Weight-Round-Robin QoS policy
Security	Control MAC address binding
Security	TCP & UDP Filter
Spanning Tree Protocol	STP, IEEE 802.1D Spanning Tree Protocol
Spanning Tree Protocol	RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
Link Aggregation	2 groups of 4-Port 10/100BASE-TX trunk supported
Link Aggregation	1 group of 2-Port 10/100/1000BASE-T trunk supported
DHCP Relay	DHCP Relay Agent / DHCP Relay Server
PoE Setting	PoE Status / PoE Port Setting / PoE Sequential
Configuration Back / Restore	Configuration backup / restore through Web interface
IGMP Snooping	IGMP (v1 / v2) Snooping, up to 32 multicast groups
Management Functions
Basic Management Interfaces	Web browser, SNMP v1 / v2c
Standards Conformance
Regulation Compliance	FCC Part 15 Class A, CE
Standards Compliance	IEEE 802.3 Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3z Gigabit Ethernet
	IEEE 802.3x Full-duplex flow control
	IEEE 802.1Q VLAN
	IEEE 802.1p QoS
	IEEE 802.1D Spanning Tree Protocol
	IEEE 802.1w Rapid Spanning Tree Protocol
	IEEE 802.3af Power over Ethernet
	IEEE 802.3at Power over Ethernet Plus
Environment
Operating	Temperature: 0 ~ 50 degrees C
Operating	Relative Humidity: 5 ~ 95% (non-condensing)
Storage	Temperature: -10 ~ 70 degrees C
Storage	Relative Humidity: 5 ~ 95% (non-condensing)
