| Hardware Specifications |
| Copper Ports | 24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| 2 10GBASE-T RJ45 ports auto negotiation (Port-25 to Port-26), supports 10G/5G/2.5G/1G/100Mbps data rate |
| SFP+ Slots | 2 10GBASE-SR/LR SFP+ interfaces (Port-27 to Port-28) |
| Compatible with 1000BASE-SX/LX/BX SFP transceiver and 2500BASE-XSFP transceiver |
| Console | 1 x RS232-to-RJ45 serial port (115200, 8, N, 1) |
| Reset Button | < 5 sec: System reboot |
| > 5 sec: Factory default |
| Dimensions (W x D x H) | 440x300x56mm, 1.25U height |
| Weight | 5478g |
| LED | System: |
| SYS (Green) |
| AC (Green) |
| DC (Green) |
| Ring (Green) |
| Fan1/2/3 Alert (Red) |
| PoE PWR Alert (Red) |
| PoE Ethernet Interfaces (Port-1 to Port-24): |
| af/at PoE (Orange) |
| bt PoE/UPOE (Green) |
| Ethernet Interfaces (Port-1 to Port-24): |
| 1000 LNK/ACT (Green), 10/100 LNK/ACT (Orange) |
| 1/10G SFP+ Interfaces (Port-27 to Port-28): |
| 1G (Green), 10G (Orange) |
| Power Consumption | Max. 740 watts/ 2538.94 BTU |
| Power Requirements – AC | AC 100~240V, 50/60Hz, 8A |
| Power Requirements – DC | DC 36~60V, 2A |
| ESD Protection | 6KV DC |
| Fan | 3 smart fans |
| Network Cables | 10G/5G/2.5G/1G/100M BASE-T: |
| - 10G – Cat 6A/7 |
| - 5G – Cat 6/6A/7 |
| - 1G/2.5G – Cat 5e/6/6A/7 |
| - 100M – Cat 5/5e/6/6A/7 |
| - Cat 5/5e/6/6A/7 UTP cable (maximum 100 meters) |
| 10GBASE-LR/SR/BX: |
| - 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m |
| - 9/125μm single-mode fiber optic cable, up to 60km |
| Switching |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 128Gbps/non-blocking |
| Throughput | 95.23Mpps@64Bytes |
| Address Table | 16K entries, automatic source address learning and aging |
| Shared Data Buffer | 32M bits |
| Flow Control | IEEE 802.3x pause frame for full duplex |
| Back pressure for half duplex |
| Jumbo Frame | 10K bytes |
| Power over Ethernet |
| PoE Standard | 802.3bt PoE++ PSE |
| Backward compatible with IEEE 802.3af/802.3at PoE PSE |
| PoE Power Supply Type | ■ 802.3bt |
| ■ UPoE |
| ■ End-span |
| ■ Mid-span |
| ■ Force |
| PoE Power Output | Per port 52V DC |
| - 802.3bt Type-4 mode, Port-1 to Port-8: maximum 90 watts |
| - 802.3bt Type-3 mode, Port-9 to Port-24: maximum 60 watts |
| - UPoE mode, Port-1 to Port-8: maximum 95 watts |
| - UPoE-mode, Port-9 to Port-24: maximum 72 watts |
| - End-span mode: maximum 36 watts |
| - Mid-span mode: maximum 36 watts |
| - Force mode: maximum 60 watts |
| Power Pin Assignment | ■ 802.3bt: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| ■ UPoE: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| ■ End-span: 1/2(-), 3/6(+) |
| ■ Mid-span: 4/5(+), 7/8(-) |
| PoE Power Budget | 600 watts (max.) |
| PoE Ability PD @ 7 watts | 24 units |
| PoE Ability PD @ 15 watts | 20 units |
| PoE Ability PD @ 30 watts | 10 units |
| Layer 2 Management Functions |
| Port Configuration | Port disable/enable |
| Auto-negotiation 10/100/1000Mbps full and half duplex mode selection |
| Flow control disable/enable |
| Port Status | Display each port’s speed duplex mode, link status, flow control status, |
| auto-negotiation status, trunk status |
| Port Mirroring | TX/RX/Both |
| Many-to-1 monitor |
| VLAN | 802.1Q tagged VLAN |
| Q-in-Q tunneling |
| Private VLAN Edge (PVE) |
| MAC-based VLAN |
| Protocol-based VLAN |
| Voice VLAN |
| MVR (Multicast VLAN registration) |
| Up to 4K VLAN groups, out of 4095 VLAN IDs |
| Link Aggregation | IEEE 802.3ad LACP/static trunk |
| 26 trunk groups with 4 ports per trunk |
| Spanning Tree Protocol | IEEE 802.1D Spanning Tree Protocol (STP) |
| IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) |
| IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) |
| QoS | Traffic classification based, strict priority and WRR |
| 8-level priority for switching: |
| - Port number |
| - 802.1p priority |
| - 802.1Q VLAN tag |
| - DSCP/ToS field in IP packet |
| IGMP Snooping | IPv4 IGMP (v1/v2/v3) snooping, up to 255 multicast groups |
| IPv44 IGMP querier mode support |
| MLD Snooping | IPv6 MLD (v1/v2) snooping, up to 255 multicast groups |
| IPv6 MLD querier mode support |
| Access Control List | IP-based ACL/MAC-based ACL |
| Up to 256 entries |
| Bandwidth Control | Per port bandwidth control |
| Ingress: 100Kbps~1000Mbps |
| Egress: 100Kbps~1000Mbps |
| RING | Support ERPS, complies with ITU-T G.8032 |
| Recovery time < 50ms |
| Layer 3 Functions |
| IP Interfaces | Max. 128 VLAN interfaces |
| Routing Table | Max. 128 routing entries |
| Routing Protocols | IPv4 OSPFv2 |
| IPv4 hardware static routing |
| IPv6 hardware static routing |
| Management |
| Basic Management Interfaces | Console |
| Telnet |
| Web browser |
| SNMP v1, v2c |
| Secure Management Interfaces | SSHv2, TLSv1.2, SNMP v3 |
| SNMP MIBs | RFC 1213 MIB-II |
| RFC 1493 Bridge MIB |
| RFC 1643 Ethernet MIB |
| RFC 2863 Interface MIB |
| RFC 2665 Ether-Like MIB |
| RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) |
| RFC 2737 Entity MIB |
| RFC 2618 RADIUS Client MIB |
| RFC 2863 IF-MIB |
| RFC 2933 IGMP-STD-MIB |
| RFC 3411 SNMP-Frameworks-MIB |
| RFC 4292 IP Forward MIB |
| RFC 4293 IP MIB |
| RFC 4836 MAU-MIB |
| IEEE 802.1X PAE |
| LLDP |
| MAU-MIB |
| Standards Conformance |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T |
| IEEE 802.3u 100BASE-TX/100BASE-FX |
| IEEE 802.3z Gigabit SX/LX |
| IEEE 802.3ab Gigabit 1000T |
| IEEE 802.3ae 10Gb/s Ethernet |
| IEEE 802.3x flow control and back pressure |
| IEEE 802.3ad port trunk with LACP |
| IEEE 802.1D Spanning Tree Protocol |
| IEEE 802.1w Rapid Spanning Tree Protocol |
| IEEE 802.1s Multiple Spanning Tree Protocol |
| IEEE 802.1p Class of Service |
| IEEE 802.1Q VLAN tagging |
| IEEE 802.1x Port Authentication Network Control |
| IEEE 802.1ab LLDP |
| IEEE 802.3af Power over Ethernet |
| IEEE 802.3at Power over Ethernet Plus |
| IEEE 802.3bt PoE++ |
| RFC 768 UDP |
| RFC 793 TFTP |
| RFC 791 IP |
| RFC 792 ICMP |
| RFC 2068 HTTP |
| RFC 1112 IGMP v1 |
| RFC 2236 IGMP v2 |
| RFC 3376 IGMP v3 |
| RFC 2710 MLD v1 |
| FRC 3810 MLD v2 |
| RFC 2328 OSPF v2 |
| ITU G.8032 ERPS Ring |
| ITU-T G.8032 ERPS Ring |
| Environment |
| Operating | Temperature: 0 ~ 50 degrees C |
| Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C |
| Relative Humidity: 5 ~ 95% (non-condensing) |
| Ordering Information |

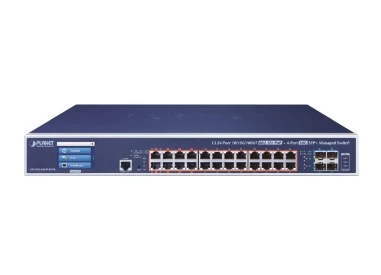

| GS-6320-24UP2T2XV | L3 24-Port 10/100/1000T 802.3bt PoE + 2-Port 10GBEAS-T + 2-Port 10G SFP+ Managed Switch with LCD Touch Screen and Redundant Power |
