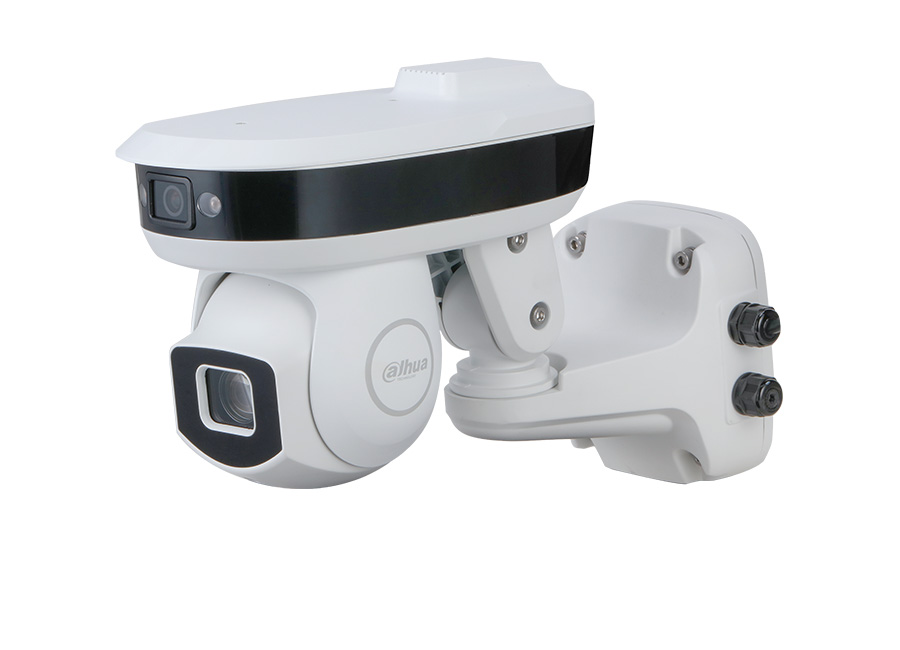

Dahua SDT5A405WA 4F B Smart Capture Kamera

Özellikler

1/1.8” 4Megapixel CMOS
Powerful 5x optical zoom
Starlight technology
Max. 25/30fps@4M
Deep-learning-based auto tracking and perimeter protection
Support Hi-PoE
H.265 Encoding
IP66

Teknik Özellikler

Camera
Image Sensor	Panoramic: 1/1.8" CMOS;
	PTZ: 1/1.8" CMOS
Max. Resolution	Panoramic: 4MP;
	PTZ: 4MP
Effective Pixels	Panoramic: 2688 (H)×1520 (V);
	PTZ: 2688 (H)×1520 (V)
ROM	8GB
RAM	4GB
Electronic Shutter Speed	Panoramic: 1/3–1/100000s;
	PTZ: 1/1–1/100000s
Scanning Mode	Interlaced Scanning
Minimum Illumination	Panoramic Color: 0.001Lux@F1.0
	B/W: 0.0001Lux@F1.0 PTZ Color: 0.001Lux@F1.35
	B/W: 0.0001Lux@F1.35
	0Lux (IR light on)
IR Distance	Panoramic: 18 m (59.06 ft) (white light);
	PTZ: 100 m (328.08 ft) (IR light)
IR On/Off Control	Panoramic: Auto/Manual;
	PTZ: Zoom Prio/Manual/SmartIR
IR LED Number	4 IR lights;
	2 white lights ( Off by default )
Lens
Focal Length	Panoramic: 6 mm;
	PTZ: 10.0 mm–50.0 mm
Aperture	Panoramic: F1.0;
	PTZ: F1.35–F1.55
Field of View	Panoramic: H: 97.57°; V: 66.05°; D: 117.23° PTZ: H: 45.73°–9.99°; V: 26.43°–5.68°; D: 51.55°–11.48°
Optical Zoom	5x
Focus Control	Auto/Semi-Auto/Manual
Close Focus Distance	Panoramic: 0.2 m;
	PTZ: 0.2 mm–3 mm
Iris Control	Auto
DORI Distance	Detect	Observe	Recognize	Identify
	Panoramic: 71.3 m (233.92 ft) PTZ:	Panoramic: 28.5 m (93.50 ft) PTZ:	Panoramic: 14.3 m (46.92 ft) PTZ:	Panoramic: 7.1 m (23.29 ft) PTZ:
	648.3 m (2126.97 ft)	259.3 m (850.72 ft)	129.7 m (425.52 ft)	64.8 m (212.60 ft)
PTZ
Pan/Tilt Range	Pan: 0°–250°;
	Tilt: -25°–+90°
Manual Control Speed	Pan: 0.1°/s–335°/s;
	Tilt: 0.1°/s–137°/s
Preset Speed	Pan: 335°/s;
	Tilt: 137°/s
Presets	300
Tour	8 (up to 32 preset per tour)
Pattern Number	5
Scanning Number	5
Speed Adjustment	Support
Power-off Memory	Support
Idle Motion	Preset/Tour/Pattern/Scanning
Protocol	DH-SD
	Pelco-P/D(Auto recognition)
Artificial Intelligence
Metadata	Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction.
Perimeter Protection	Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.
Face Recognition	Support
Auto Tracking	Support
General Intelligence
Event Trigger	Motion detection, video tampering, scene changing, Network disconnection, IP address conflict, illegal access, and storage anomaly.
General IVS	Object Abandoned/Missing
Video
Compression	H.265; H.264BaselineProfile; H.264MainProfile; H.264HighProfile; MJPEG(Sub Stream); H.265+; H.264+
Streaming Capability	3 Streams
Resolution	Panoramic
	4M (2688×1520); 1080P (1920×1080); 960P (1280×960); 720P (1280×720); D1 (704× 576/704×480); CIF (352×288/352×240)
	PTZ
	4M (2688×1520); 1080P (1920×1080); 960P (1280×960); 720P(1280×720); D1 (704× 576/704×480); CIF (352×288/352×240)
Frame Rate	Main stream: 4M/3M(1–25/30fps), 1080P/1.3M/720P(1–25/30fps)
	Sub stream 1: D1/CIF(1–25/30fps)
	Sub stream 2: 1080P/1.3M/720P(1–25/30fps), D1/CIF(1–25/30fps)
Bit Rate Control	Variable Bit Rate/Constant Bit Rate
Bit Rate	H.264: 2816 Kbps–13824 Kbps
	H.265: 1024 Kbps–8192 Kbps
Day/Night	Panoramaic
	Electronic Color/B/W
	PTZ
	Auto (ICR)
BLC	Support
WDR	120dB
HLC	Support
White Balance	Panoramic: Auto/Indoor/ManualRegional custom /Natural/Street lamp PTZ: Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural/Street lamp
Gain Control	Auto/Manual
Noise Reduction	2D/3D
Motion Detection	Support
Region of Interest (RoI)	Support
Electronic Image Stabilization (EIS)	Support
Defog	Support
Digital Zoom	16x
Certification
Certification	CE: EN55032/EN55024/EN50130-4
	FCC: Part15 subpartB,ANSI C63.4- 2014
Audio
Audio Compression	G.711a; G.711mu; G.726; AAC; MPEG2-Layer2; G.722.1; G.729
Port
Audio In	1
Audio Out	1
Alarm Port	2 alarm input port; 1 alarm output port
Network
Ethernet Port	1 RJ-45 Port 10/100Base-T
Protocol	IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
Interoperability	ONVIF Profile S&G; CGI
Streaming Method	Unicast/Multicast
Max. User Access	20 (Total bandwidth 64M)
Edge Storage	FTP; Micro SD card (256G)
Browser	IE7 and newer versions
	Chrome 42 and older versions
	Firefox 52 and older versions
	Safari
Electrical
Power Supply	AC24V/3A±25%
	Hi-PoE
Power Consumption	18W
	33W (Heater on/IR light on)
Environment
Operating Conditions	-40°C ~ 70°C (–40°F to +158°F)
Operating Humidity	≤95%RH
Ingress Protection	IP66; TVS 8000V lightning protection; surge protection
Construction
Dimensions	175 mm×346 mm×261 mm (6.89"×13.62"×10.28“)
Weight	Net Weight: 6.4 kg (14.11 lb); Gross Weight: 13.72 kg (30.25 lb)
