Açıklama

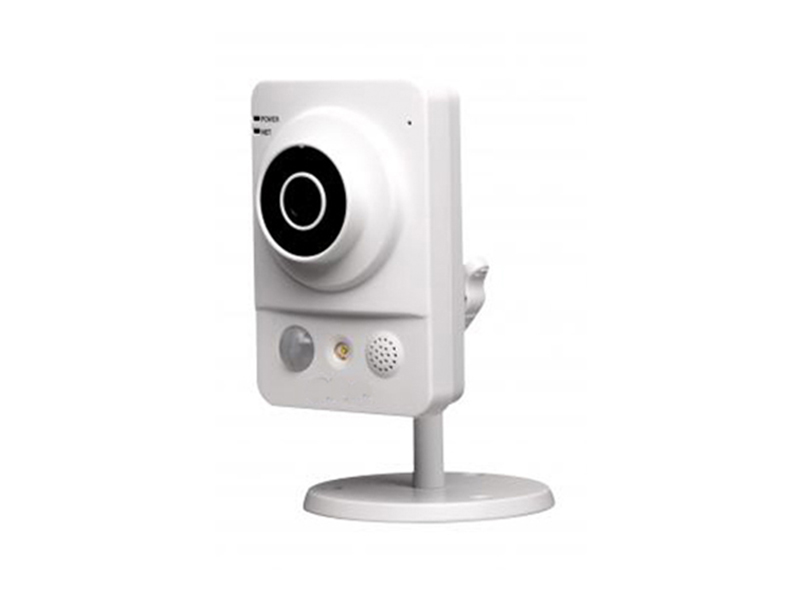

Dahua DH IPC K200W IP HD Küp Kamera

Çözünürlük : 2MP (1080P)

Camera
Image Sensor	1/3” 2Megapixel progressive scan CMOS
Effective Pixels	1920(H)x1080(V)
Scanning System	Progressive
Electronic ShutterSpeed	Auto/Manual, 1/3(4)~1/100000
Min. Illumination	0.05lux/F1.8(color)
S/N Ratio	More than 50dB
Video Output	N/A
Camera Features
Max. LEDs Length	10m
Day/Night	Auto(Electronic) / Color / B/W
Backlight Compensation	BLC / HLC / DWDR
White Balance	Auto/Manual
Gain Control	Auto/Manual
Noise Reduction	3D
Privacy Masking	Up to 4 areas
Lens
Focal Length	3.6mm
Max Aperture	F1.8
Focus Control	Manual
Angle of View	86.5°
Lens Type	Fixed Lens
Mount Type	Board-in Type
Video
Compression	H.264/MJPEG
Resolution	1080P(1920x1080)/720P(1280x720)/D1/CIF
Frame Rate	Main Stream	1080P/720P(1~25/30fps)
	Sub Stream	D1/CIF(1 ~ 25/30fps)
Bit Rate	H.264: 16K ~ 8192Kbps
Audio
Compression	G.711a / G.711u / PCM
Interface	Built-in Mic, Built-in speaker
Network
Ethernet	RJ-45 (10/100Base-T)
Wi-Fi	Wi-Fi(802.11b/g)
Protocol	IPv4/IPv6, HTTP, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF	ONVIF Profile S
Max. User Access	10 users
Smart Phone	iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot	N/A
RS485	N/A
Alarm	1/1 channel In/Out
PIR Sensor Range	Up to 6m
General
Power Supply	DC12V
Power Consumption	<5W
Working Environment	-20°C~+50°C,
	Less than 95%RH
Ingress Protection	N/A
Vandal Resistance	N/A
Dimensions(W×D×H)	66.6mm×99.5mm×131.2mm
Weight	0.35Kg (0.4kg with bracket)
