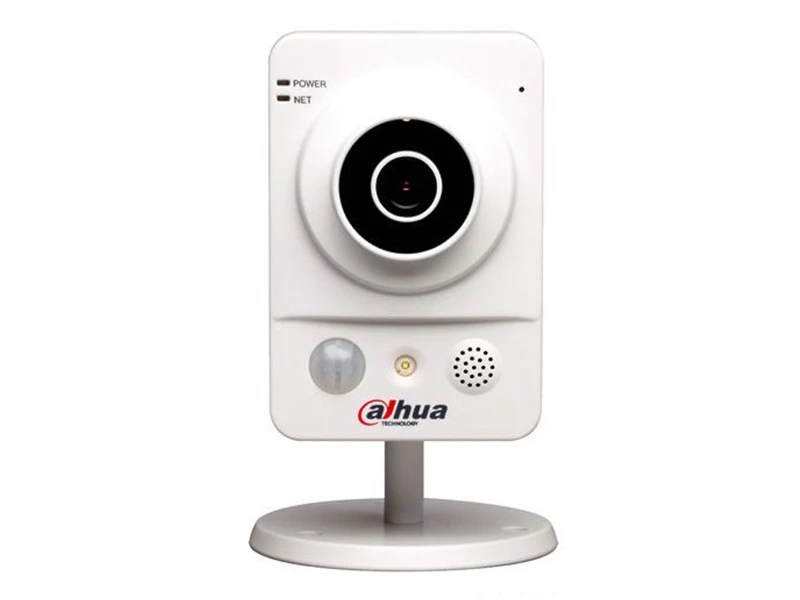

Dahua DH IPC KW100A IP HD Küp Kamera
Özellikler
Teknik Özellikler
| Camera | ||
| Image Sensor | 1/3” 1.3Megapixel Aptina CMOS | |
| Effective Pixels | 1280(H)x960(V) | |
| Scanning System | Progressive | |
| Electronic ShutterSpeed | Auto/Manual, 1/3(4)~1/10000 | |
| Min. Illumination | 0.01lux/F1.8(color), 0Lux/F1.8(IR on) | |
| S/N Ratio | More than 50dB | |
| Video Output | N/A | |
| Camera Features | ||
| Max. IR LEDs Length | 10m | |
| Day/Night | Auto(ICR) / Color / B/W | |
| Backlight Compensation | BLC / HLC / DWDR | |
| White Balance | Auto/Manual | |
| Gain Control | Auto/Manual | |
| Noise Reduction | 2D | |
| Privacy Masking | Up to 4 areas | |
| Lens | ||
| Focal Length | 3.6mm | |
| Max Aperture | F1.8 | |
| Focus Control | Manual | |
| Angle of View | 70° | |
| Lens Type | Fixed Lens | |
| Mount Type | Board-in Type | |
| Video | ||
| Compression | H.264/MJPEG | |
| Resolution | 1.3M(1280x960)/720P(1280x720)/D1/CIF | |
| Frame Rate | Main Stream | 1.3M/720P(1~25/30fps) |
| Sub Stream | D1/CIF(1 ~ 25/30fps) | |
| Bit Rate | H.264: 16K ~ 8096Kbps | |
| Audio | ||
| Compression | N/A | |
| Interface | N/A | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Wi-Fi | N/A | |
| Protocol | IPv4/IPv6, HTTP, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour | |
| ONVIF | ONVIF Profile S | |
| Max. User Access | 10 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Auxiliary Interface | ||
| Memory Slot | Micro SD, Max 64GB | |
| RS485 | N/A | |
| Alarm | 1/1 channel In/Out | |
| PIR Sensor Range | Up to 6m | |
| General | ||
| Power Supply | DC12V, PoE(802.3af) | |
| Power Consumption | <4W | |
| Working Environment | -10°C~+50°C, Less than 95%RH | |
| Ingress Protection | N/A | |
| >Vandal Resistance | N/A | |
| Dimensions(W×D×H) | 66.6mm×99.5mm×131.2mm | |
| Weight | 0.35Kg (0.4kg with bracket) | |
Teknik Kısa
Çözünürlük : 1MP (720P)
Depolama : Var
