Açıklama

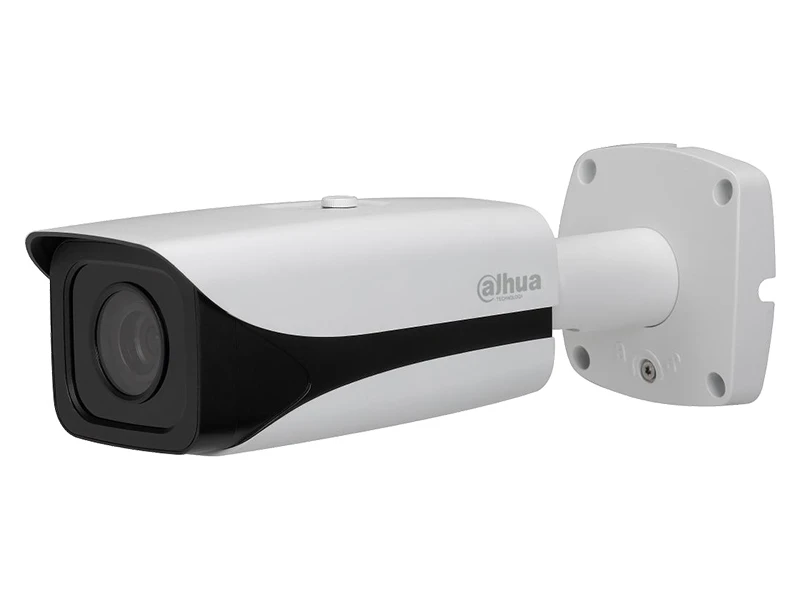

Dahua IPC HFW5221E Z IP HD Bullet Kamera
Özellikler
- 2.7-12 mm Motorize Zoom Lens,
- 1/2.7" 2MP Progressive Scan CMOS,
- 25fps @ 1080P(1920×1080),
- H.264/MJPEG Trible-Stream Encoding,
- Çoklu Network Görüntüleme,
- Ultra WDR (120dB), Gece/Gündüz (ICR),
- Oto Iris, AWB, AGC, BLC, HLC, 3D-DNR,
- Yüz Algılama, Dikenli Tel İhlali, Alan İhlali,
- Sahne Değişimi Algılama,
- IR LED G.Mesafesi: 50m, 1xRJ45(100M),
- Max. 64Gb Micro SD Memory,
- IP67, PoE, 2/1xAlarm, 1/1xSes
Teknik Özellikler
| Camera |
| Image Sensor : 1/2.7” 2Megapixel progressive scan CMOS |
| Effective Pixels : 1920(H) x 1080(V) |
| Scanning System : Progressive |
| Electronic Shutter Speed : Auto/Manual, 1/3(4)-1/100000s |
| Min. Illumination : 0.01Lux/F1.4(Color); 0Lux/F1.4(IR on) |
| S/N Ratio : More than 50dB |
| Video Output : 1 port |
| Camera Features |
| Max. IR LEDs Length : 50m |
| Day/Night : Auto(ICR) / Color / B/W |
| Backlight Compensation : BLC / HLC /WDR(120dB) |
| White Balance : Auto/Sunny/Night/Outdoor/Customized |
| Gain Control : Auto/Manual |
| Noise Reduction : 3D |
| Privacy Masking : Up to 4 areas |
| Lens |
| Focal Length : 2.7mm-12mm |
| Max Aperture : F1.4 |
| Focus Control : Motorized |
| Angle of View : H: 99°-34° |
| Lens Type : Motorized/ Auto Iris(DC) |
| Mount Type : Board-in Type |
| Video |
| Compression : H.264/H.264H/H.264B/MJPEG |
| Resolution : 1080P(1920x1080)/1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240) |
| Frame Rate : Main Stream : 1080P/720P(1 - 25/30fps) |
| Sub Stream : D1/CIF(1 - 25/30fps) |
| Third Stream 720P(1 - 13/4fps) |
| Bit Rate : H.264: 32K bps- 10Mbps |
| Audio |
| Compression : G.711a/ G.711u/ AAC |
| Interface : 1/1 channel In/Out |
| Smart Function(Optional) |
| Smart detection : Tripwire |
| Intrusion |
| Abandoned/Missing |
| Scene Change |
| Audio detect |
| Face detect |
| Network |
| Ethernet : RJ-45 (10/100Base-T) |
| Wi-Fi : N/A |
| Protocol : IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
| ONVIF : ONVIF,PSIA,CGI |
| Max. User Access : 20users |
| Smart Phone : iPhone, iPad, Android, Windows Phone |
| Auxiliary Interface |
| Memory Slot : Micro SD, Max 128GB |
| RS485 : N/A |
| Alarm : 2/1 channel In/Out |
| PIR Sensor Range : N/A |
| General |
| Power Supply : DC12V, PoE (802.3af) |
| Working Environment : -30°C-+60°C, Less than 95% RH |
| Ingress Protection : IP67 |
| Vandal Resistance : N/A |
| Dimensions : 272.9 mm × 94.9mm× 94.9mm |
| Weight : 1.1kg |
Dahua IPC HFW5221E Z IP HD Bullet Kamera Pdf Dosyası545.42 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
Irled : Var
Depolama : Var
