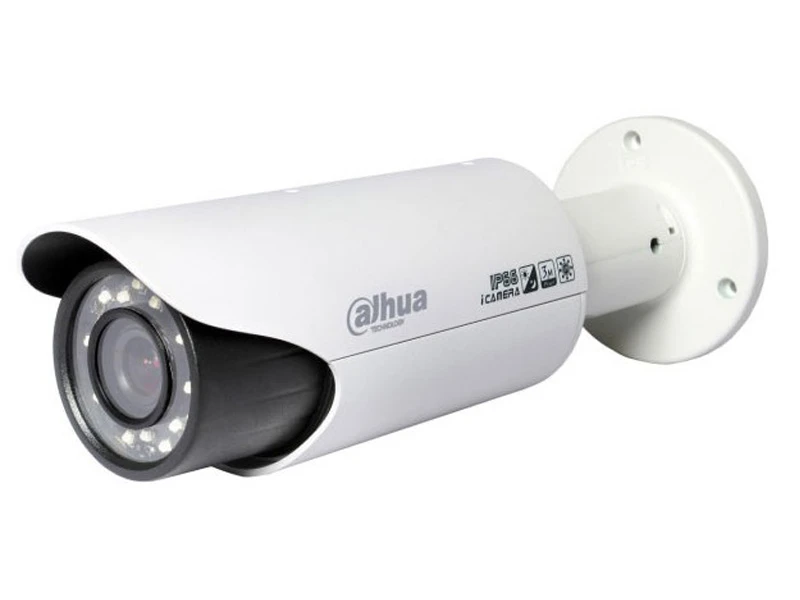

Dahua IPC HFW5502C IP HD Bullet Kamera
Özellikler
- 5 Megapiksel Full HD Waterproof IR Bullet IP Kamera
- 4- 9 mm Varifocal Motorize Zoom lens,
- 1/2.5" 5 MP Progressive CMOS,
- 12fps @ 5MP(2560×1920),
- H.264/MJPEG Dual Codec,
- Çoklu Network Görüntüleme,
- D-WDR, Gece/Gündüz (ICR),
- Oto Iris, AWB, AGC, BLC, 3D-DNR,
- IR LED G.Mesafesi: 30m, 1xRJ45(100M),
- Max. 64Gb Micro SD Memory, IP66, PoE, 2xAlarm, 1x Ses
Teknik Özellikler
| Camera |
| Image Sensor : 1/2.5”5Megapixel CMOS |
| Effective Pixels : 2560(H)x1920(V) |
| Scanning System : Progressive |
| Electronic Shutter Speed : Auto/Manual, 1/3(4)~1/10000s |
| Min. Illumination : Color: 0. 01Lux/F1.6; 0Lux/F1.6(IR on) |
| S/N Ratio : More than 50dB |
| Video Output : 1 channel, BNC(1.0Vp-p/75Ω) |
| Camera Features |
| Max. IR LEDs Length : 30m |
| Day/Night : Auto(ICR) / Color / B/W |
| Backlight Compensation : BLC / HLC / DWDR |
| White Balance : Auto |
| Gain Control : Auto/Manual |
| Noise Reduction : 3D |
| Privacy Masking : Up to 4 areas |
| Lens |
| Focal Length : 4~9mm motorized |
| Max Aperture : F1.6 |
| Focus Control : Auto |
| Angle of View : H: 82.4°(Wide)~36.1°(Tele) |
| Lens Type : Motorized /Auto Iris(DC) |
| Mount Type : Board-inType |
| Video |
| Compression : H.264 / MJPEG |
| Resolution : 5M(2560×1920)/3M(2048×1536)/1080P(1920×1080)/720P(1280×720) / D1(704×576) / CIF(352×288) / |
| Frame Rate : Main Stream 5M(1~12fps)/3M(1~20fps)/1080P/720P(1 ~ 25/30fps) |
| Sub Stream : D1/CIF(1 ~ 25/30fps) |
| Bit Rate : H.264H: 32K ~ 8192Kbps |
| Audio |
| Compression : G.711a / G.711u/ PCM |
| Interface : 1/1 channel In/Out |
| Network |
| Ethernet : RJ-45 (10/100Base-T) |
| Wi-Fi : N/A |
| Protocol : IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour |
| Compatibility : ONVIF,PSIA,CGI |
| Max. User Access : 20 users |
| Smart Phone : iPhone, iPad, Android, Windows Phone |
| Auxiliary Interface |
| Memory Slot : Micro SD, Max 64GB |
| RS485 : N/A |
| Alarm : 2/1 channel In/Out |
| PIR Sensor Range : N/A |
| General |
| Power Supply : DC12V(AC24V optional), PoE(802.3af) |
| Power Consumption : <8.5W |
| Working Environment : -30°C~+60°C(-H: -40°C~+60°C), Less than 95%RH |
| Ingress Protection : IP66 |
| Vandal Resistance : N/A |
| Dimensions : ф104mm × 306.7mm |
| Weight : 1.25Kg |
Teknik Kısa
Çözünürlük : 5MP
Irled : Var
Depolama : Var
