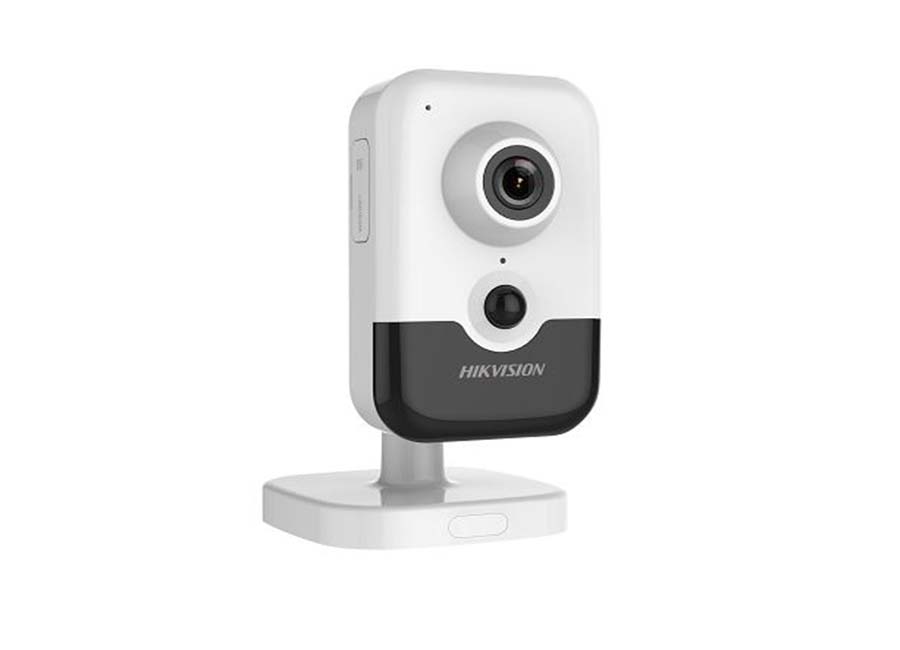

Hikvision DS 2CD2421G0 I IR IP Küp Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| İşaret Sistemi | PAL/NTSC |
| Minimum Aydınlatma | Color: 0.028 Lux @ (F2.0, AGC ON) |
| Slow shutter | Support |
| Objektif Hızı | 1/3 s to 1/100,000 s |
| Lens | 2 mm: horizontal FOV: 132°, vertical FOV: 77°, diagonal FOV: 153° |
| 2.8 mm: horizontal FOV: 107°, vertical FOV: 57°, diagonal FOV: 126° | |
| 4 mm: horizontal FOV: 85°, vertical FOV: 45°, diagonal FOV: 101° | |
| Lens Mount | M12 |
| Ayarlanan Aralık | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
| Day& Night | IR cut filter with auto switch |
| Wide Dynamic Range | 120 dB |
| Dijtal Gürültü Azaltma | 3D DNR |
| Focus | Fixed |
| Compression Standard | |
| Video bit rate | 32Kbps~8Mbps |
| Ses Bit Hızı | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2) |
| Image | |
| Max. Image Resolution | 1920 x 1080 |
| Ana Akış | 50Hz: 25fps (640 × 360) |
| 60Hz: 30fps (640 × 360) | |
| Çerçeve Hızı | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
| Görüntü İyileştirme | BLC, HLC, 3D DNR |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
| BLC | Yes, zone configurable |
| Gündüz / Gece Anahtarı | Day/Night/Auto/Schedule |
| Network | |
| Protokoller | TCP/IP, ICMP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, IPv6, UDP, QoS, Bonjour |
| General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, flash log |
| System Compatibility | ONVIF (Profile S, Profile G), ISAPI |
| Interface | |
| Audio | 1 built-in microphone, 1 built-in speaker |
| Communication Interface | 1 RJ45 10M / 100M Ethernet interface |
| Dahili Depolama | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Butonu | Yes |
| Audio | |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Wi-Fi Specification (-W) | |
| Kablosuz Standartlar | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Kanal Bant Genişliği | 20/40MHz Support |
| Modulation Mode | 802.11b: DQPSK, DBPSK, CCK 802.11g/n: 64-QAM, 16-QAM, QPSK, BPSK |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Transmission Rate | 11b: 11Mbps |
| 11g: 54Mbps | |
| 11n: up to 150Mbps | |
| Kablosuz Menzil | 50m(depend on environment) |
| General | |
| Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
| Humidity 95% or less (non-condensing) | |
| Power Supply | 12 VDC ± 25%, PoE (802.3af Class3) |
| GÜç Tüketimi | DS-2CD2421G0-IW: |
| 12 VDC, 0.54 A, max. 6.5 W | |
| PoE (802.3af, 36 V to 57 V), 0.21 A to 0.13 A, max. 7.5 W | |
| DS-2CD2421G0-IDW: | |
| 12 VDC, 0.54 A, max. 6.5 W | |
| DS-2CD2421G0-I: | |
| 12 VDC, 0.42 A, max. 5 W | |
| PoE (802.3af, 36 V to 57 V), 0.17 A to 0.11 A, max. 6 W | |
| IR Range | Up to 30m |
| Boyutlar | Camera: 102.9 × 65.2 × 32.6 mm (4'' × 2.6'' × 1.3'') |
| With package: 150 × 125 × 99 mm (5.9'' × 4.9'' × 3.9'') | |
Hikvision DS 2CD2421G0 I IR IP Küp Kamera Pdf Dosyası1.06 MB
Hikvision DS 2CD2421G0 I IR IP Küp Kamera Kullanıcı Kılavuzu (ing) Pdf Dosyası4.49 MB
Teknik Kısa
Çözünürlük : 2MP (1080P)
Irled : Var
