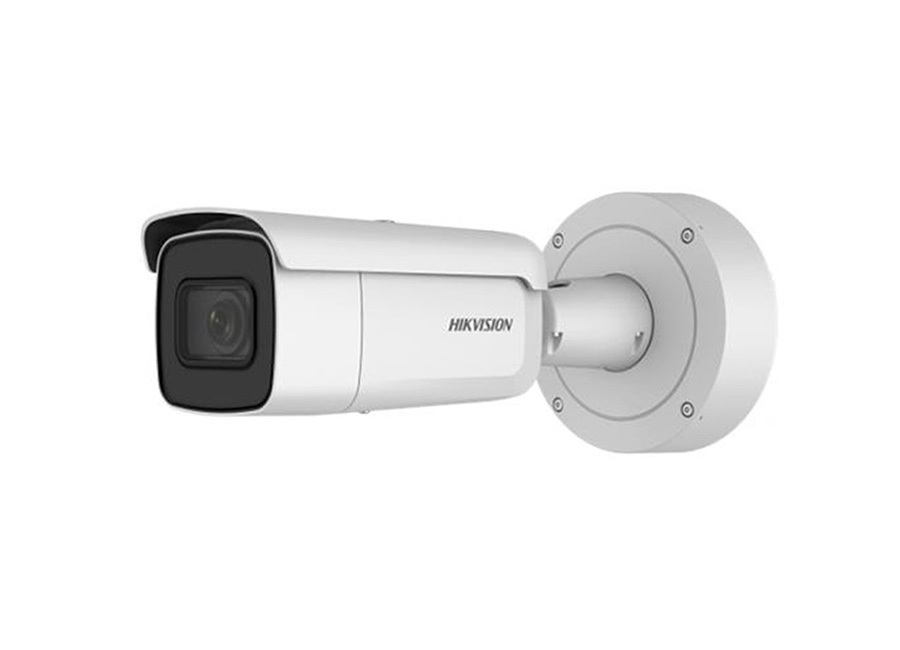

Hikvision DS 2CD3645G0 IZS IP Bullet Kamera
Özellikler
- 1/2.5" Progressive Scan CMOS
- 2688 × 1520@30 fps
- 2.7 to 13.5 mm motorized varifocal lens
- H.265+, H.265, H.264+, H.264
- 120dB WDR
- Powered by Darkfighter
- BLC/3D DNR/ROI/HLC
- IP66, IK10
- IR range: up to 60 m
- Built-in microSD/SDHC/SDXC card slot, up to 128 GB
- Color: 0.008 lux @(F1.2, AGC ON), 0.011 lux @(F1.4, AGC ON), 0 lux with IR
Teknik Özellikler
Camera | |
Image Sensor | 1/2.5" Progressive Scan CMOS |
Min. Illumination | Color 0.008 lux @(F1.2, AGC ON), 0.011 lux @(F1.4, AGC ON), 0 lux with IR |
Shutter time | 1/3 s to 1/100,000 s |
Slow shutter | Yes |
Lens | 2.7 to 13.5 mm |
Horizontal FOV 116° to 30°, vertical FOV 60° to 17°, diagonal FOV 144° to 33.5° | |
Lens Mount | φ14 |
Adjustment Range | Pan 0° to 360°, tilt 0° to 90°, rotate 0° to 360° |
Day& Night | IR Cut Filter |
Wide Dynamic Range | 120 dB |
Digital noise reduction | 3D DNR |
Focus | Auto |
Compression Standard | |
Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
H.264 code profile | Main Profile/High Profile |
Video bit rate | 32Kbps~16Mbps |
Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
Audio bit rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
Dual Stream | Yes |
Triple Streams | Yes |
Image | |
Max. Image Resolution | 2688 × 1520 |
Frame Rate | 50Hz 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080) |
60Hz 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080) | |
Sub Stream | 50Hz 25fps (640 × 480, 640 × 360, 320 × 240) |
60Hz 30fps (640 × 480, 640 × 360, 320 × 240) | |
Third Stream | 50Hz 25 fps (1280 × 720, 640 × 360, 352 × 288) |
60Hz 30 fps (1280 × 720, 640 × 360, 352 × 240) | |
Image Enhancement | BLC/3D DNR/HLC |
Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
BLC | Support |
HLC | Support |
3D DNR | Support |
ROI | Support 1 fixed region for main stream and sub stream |
Day/Night Switch | Day/Night/Auto/Schedule/Triggered by Alarm In |
Network | |
Network Storage | microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
General Function | One-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter |
System Compatibility | ONVIF (Profile S, Profile G), ISAPI |
Intelligent | |
Behavior analysis | Line crossing detection, intrusion detection, unattended baggage detection, object removal detection |
Interface | |
Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
Audio | 1-ch 3.5 mm input (line in), 1-ch 3.5mm output, mono |
Alarm | 1 input, 1 output (max. 12 VDC, 30 mA) |
Video Output | 1Vp-p composite output (75 Ω/BNC) (For adjustment only) |
On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
Reset Button | Yes |
Audio | |
Environment Noise Filtering | Support |
Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz |
Smart Feature-set | |
Exception Detections | Scene change detection |
Recognition | Face Detection |
General | |
IR Range | Up to 60 m |
Operation Condition | -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) |
Power Supply | 12 VDC ± 25%, PoE (802.3af Class3) |
Power Consumption | 12 VDC, 1.2 A, max. 14.4 W |
PoE (802.3at, 42.5V to 57V), 0.5 A to 0.3 A, max. 18 W | |
Impact Protection | IK10 |
Weather Proof | IP66 |
Dimension | Φ144.13×332.73 mm (Φ5.67"× 13.10") |
Weight | Camera approx. 1893 g (4.2 lb.) |
Hikvision DS 2CD3645G0 IZS IP Bullet Kamera Pdf Dosyası1.09 MB
Teknik Kısa
Depolama :
Var
Ses :
Var
Çözünürlük :
4MP
Irled :
Var
