Açıklama

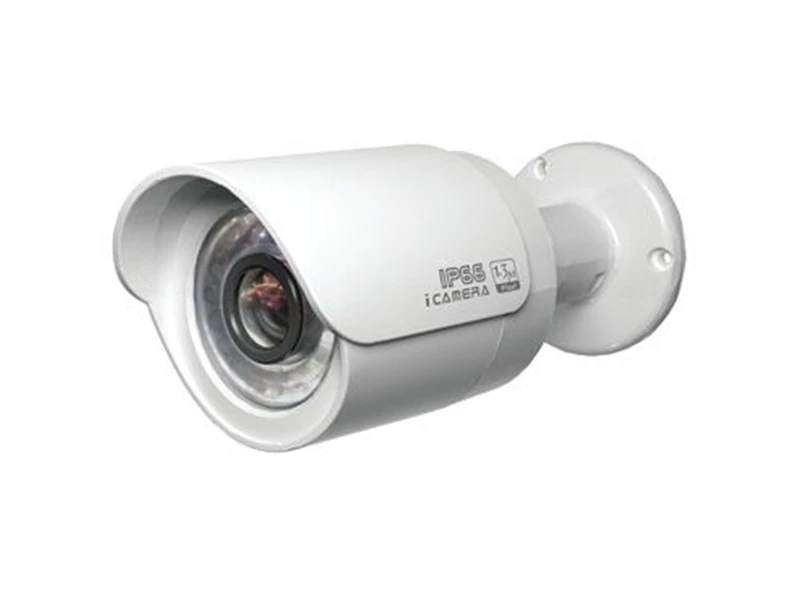

Neutron IPC HFW2100 IP HD Bullet Kamera

1/3” 1.3 Megapixel Aptina CMOS Görüntü Sensörü
High-performance TI DaVinci series DSP
H.264&MJPEG video compression and JPEG image capture
Max 25/30fps @720P(1280×720) , 15fps @1.3M(1280×960) Çözünürlük
Dual encoding streams supported
Lens: 6mm (3.6mm/8mm optional)
Max. IR Mesafesi: 20m
True Day/Night ICR
IP66 all-environments protection, 4000V thunder-proof, constant temperature automatic control & anti-fog
DC12V Güç Kaynağı PoE
Dahili Web server, NVR, CMS(PSS/DSS) & DMSS

Çözünürlük : 1.3MP

Ses : Var

DH-IPC-HFW2100P			DH-IPC-HFW2100N
Kamera
Görüntü Sensörü	1/3” 1.3Megapixel Aptina CMOS
Effective Pixels	1280(H)x960(V)
Scanning System	Progressive
Electronic ShutterSpeed	Auto/Manual, 1/3~1/10000s		Auto/Manual, 1/4~1/10000s
Min.Aydınlatma	Color: 0. 1LUX/F1.2, B/W: 0.005LUX/F1.2; 0LUX/F1.2(IR on)
S/N Oranı	>50dB
Kamera Özellikleri
Max. IR LEDs Length	20m
Day/Night	Auto(ICR) / Color / B/W
Backlight Compensation	BLC
Beyaz Denge	Auto
Kazanç Kontrolü	Auto/Manual
Gürültü Azaltma	2D
Gizlilik Maskesi	Up to 4 areas
Lens
Focal Length	6mm (3.6mm,8mm optional)
Max Aperture	F1.8
Angle of View	H: 46°(70°/35°)
Mount Type	Board-in Type
Video
Sıkıştırma	H.264 / MJPEG
Çözünürlük	1.3M(1280×960)/720P(1280×720)/ D1(704×576)/CIF(352×288)		1.3M(1280×960)/720P(1280×720)/ D1(704×480)/CIF(352×240)
Frame Hızı	Main Stream	1.3M(1~15fps)/720P(1 ~ 25/30fps)
	Sub Stream	D1/CIF(1 ~ 25/30fps)
Bit Rate	H.264: 32K ~ 8192Kbps, MJPEG: 32K ~ 12288Kbps
Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF	ONVIF Ver. 2.0
Max. User Access	10 Kullanıcı
Akıllı Telefon	iPhone, iPad, Android, Windows Phone
Genel
Güç Kaynağı	DC12V, PoE(802.3af)
Güç Tüketimi	<6W
Çalışma Sıcaklığı	-10°C~+60°C, 10%~90%
Koruma Sınıfı	IP66
Boyutlar	Φ64.43mm×145.02mm
