Açıklama

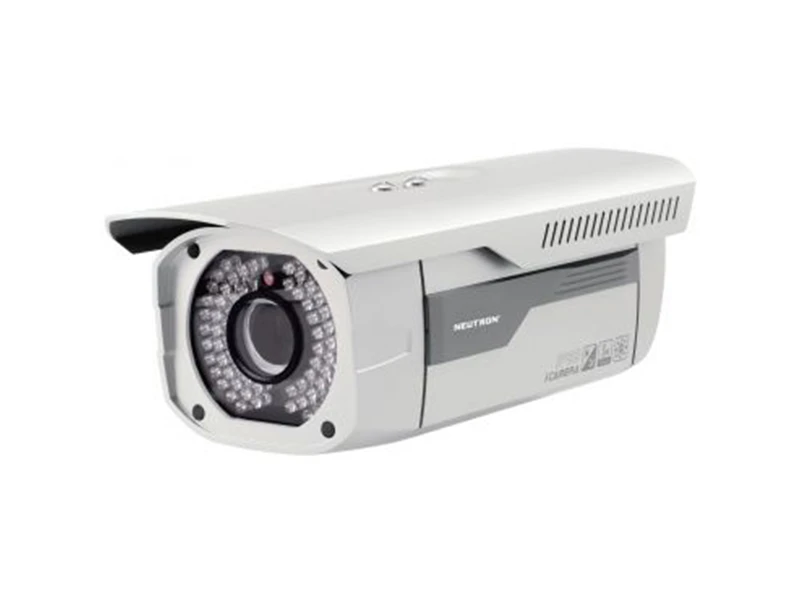

Neutron IPC HFW5200DP IP HD Box Kamera

Çözünürlük : 2MP (1080P)

Irled : Var

Camera
Image Sensor	1/3” 2 Megapixel progressive scan Exmor CMOS
Effective Pixels	1920(H)x1080(V)
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/3~1/10000s
Min. Illumination	0. 1Lux/F1.2 (Color), 0.01Lux/F1.2(B/W);0Lux/F1.2(IR on)
S/N Ratio	More than 50dB
Video Output	1 channel BNC(1.0Vp-p,75Ω)
Camera Features
Max. IR LEDs Length	50m
Day/Night	Auto(ICR)/Color/B/W
Backlight Compensation	BLC / HLC / DWDR
White Balance	Auto/Manual
Gain Control	Auto/Manual
Noise Reduction	3D
Privacy Masking	Up to 4 areas
Lens
Focal Length	3.6mm (6mm,8mm optional)
Max Aperture	F1.6
Focus Control	Manual
Angle of View	H:70°(48.8°/37°)
Lens Type	Fixed lens
Mount Type	Board-in Type
Video
Compression	H.264/ MJPEG
Resolution	1080P(1920×1080)/720P(1280×720)/D1(704×576)/CIF(352×288)
Frame Rate	Main Stream	1080P/720P(1 ~ 25/30fps)
	Sub Stream	D1/CIF(1 ~ 25/30fps)
Bit Rate	H.264: 32K ~ 8192Kbps
Audio
Compression	G.711a/ G.711u/ PCM
Interface	1/1 channel In/Out
Network
Ethernet	RJ-45 (10/100Base-T)
Wi-Fi	N/A
Protocol	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,
	RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF	ONVIF Profile S
Max. User Access	20 users
Smart Phone	iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot	Micro SD, Max 64GB
RS485	N/A
Alarm	2/1 channel In/Out
PIR Sensor Range	N/A
General
Power Supply	DC12V, PoE (802.3af)
Power Consumption
Working Environment	-20°C~+60°C, Less than 90% RH
Ingress Protection	IP66
Vandal Resistance	N/A
Dimensions	88mm×76mm×200.2mm
Weight	0.92kg
