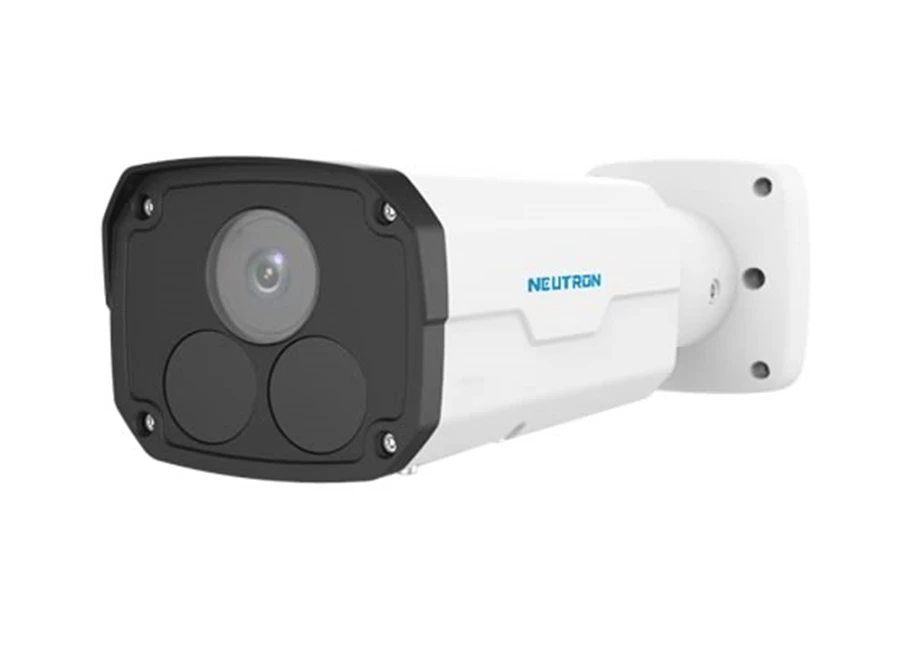

Neutron IPC2224SR5 DPF40 B IP Bullet Kamera

Özellikler

Smart IR , up to 50 m (164 ft) IR distance
Up to 120 dB Optical WDR(Wide Dynamic Range)
Ultra 265, H.265, H.264, MJPEG
ROI (Region of Interest)
9:16 corridor format
ONVIF Conformance

Teknik Özellikler

	IPC2224SR5-DPF40-B				IPC2224SR5-DPF60-B
Camera
Sensor	1/3", 4.0 megapixel, progressive scan, CMOS
Lens	4.0mm@F2.0				6.0mm@F2.0
DORI Distance	Lens (mm)	Detect (m)		Observe (m)	Recognize (m)	Identify (m)
	4.0	90		36	18	9
	6.0	135		54	27	13.5
Angle of View (H)	78.9°				49.9°
Angle of View (V)	39.6°				27°
Angle of View (O)	97.1°				61.4
Adjustment angle	Pan: 0° ~ 360°		Tilt: 0° ~ 90°		Rotate: 0° ~ 360°
Shutter	Auto/Manual, 1 ~ 1/100000s
Minimum Illumination	Colour: 0.03Lux (F2.0, AGC ON)
	0Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
S/N	>55dB
IR Range	Up to 50m (164ft) IR range
· Defog	Digital Defog
WDR	120dB
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main Profile, High Profile
Frame Rate	Main Stream: 4MP (25921520), Max 20fps; 4MP (25601440), Max 25fps; 3MP (2048*1520), Max 30fps;
	Sub Stream: 2MP (1920*1080), Max 30fps;
	Third Stream: D1 (720*576), Max 30fps
9:16 Corridor Mode	Supported
HLC	Supported
BLC	Supported
OSD	Up to 8 OSDs
Privacy Mask	Up to 8 areas
ROI	Up to 8 areas
Motion Detection	Up to 4 areas
Smart
Behavior Detection	Intrusion, cross line, motion detection
Intrusion	Enter and loiter in a pre-defined virtual region
cross line	Cross a pre-defined virtual line
motion detection	Moving within a pre-defined virtual region
Recognition	Face detection, Audio detection
Intelligent Identification	Defocus, Scene Change, Object Left, Object Moving
Statistical Analysis	People counting
General Function	Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Storage
Edge Storage	Micro SD, up to 256GB
Network Storage	ANR
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API
Interface
Network	1 RJ45 10M/100M Base-TX Ethernet
General
Power	DC 12V±25%, PoE (IEEE 802.3af)
	Power consumption: Max 9W
Dimensions (L × W × H)	253.4 × 86 × 71.7mm (9.98” × 3.4” × 2.8”)
Weight	1.0kg (2.2lb)
Working Environment	-35°C ~ 60°C (-31°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress Protection	IP67
Vandal Resistant	IK10
