Açıklama

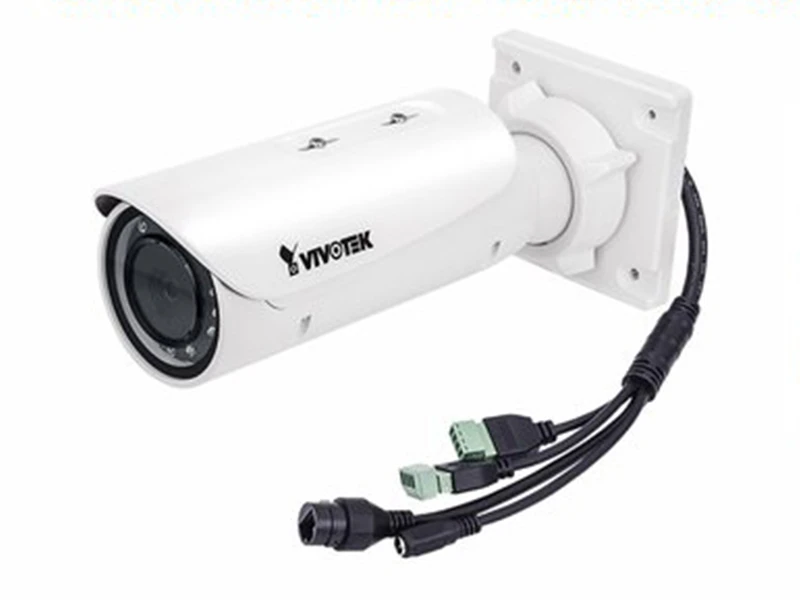

Vivotek IB8382 F3 IP HD Bullet Kamera
Özellikler
- 5-Megapixel CMOS Sensor
- 15 fps @ 2560x1920, 30 fps @ 1920x1080
- 3.6 mm Fixed-focal Lens
- Removable IR-cut Filter for Day & Night Function
- Built-in IR Illuminators, Effective up to 30 Meters
- Smart IR Technology to Avoid Overexposure
- Smart Stream to Optimize Bandwidth Efficiency
- WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments
- 3D Noise Reduction for Low-light Conditions
- Video Rotation for Corridor View
- Two-way Audio
- Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
- VIVOTEK VCA (Video Content Analysis) Support
Teknik Özellikler
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 1Gb |
| RAM | 4Gb |
| Camera Features | |
| Image Sensor | 1/3.2" Progressive CMOS |
| Maximum Resolution | 2560x1920 (5MP) |
| Lens Type | Fixed-focal |
| Focal Length | f = 3.6 mm |
| Aperture | F2.1 |
| Field of View | 68° (Horizontal) |
| 51° (Vertical) | |
| 89° (Diagonal) | |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Enhanced |
| Day/Night | Removable IR-cut filter for day & night function |
| Minimum Illumination | 0.089 Lux @ F2.1 (Color) |
| 0.001 Lux @ F2.1 (B/W) | |
| Pan/tilt/zoom Functionalities | ePTZ: |
| 48x digital zoom (4x on IE plug-in, 12x built in) | |
| IR Illuminators | Built-in IR illuminators, effective up to 30 meters |
| with Smart IR | |
| IR LED*8 | |
| On-board Storage | Slot type: SD/SDHC/SDXC card slot |
| Seamless Recording | |
| Video | |
| Compression | H.264 & MJPEG |
| Maximum Frame Rate | 15 fps @ 2560x1920 |
| 15 fps @ 2048x1536 | |
| 30 fps @ 1920x1080 | |
| In both compression modes | |
| Maximum Streams | 4 simultaneous streams |
| S/N Ratio | Above 65 dB |
| Dynamic Range | 70 dB |
| Video Streaming | Adjustable resolution, quality and bitrate, Smart Stream |
| Image Settings | Adjustable image size, quality and bit rate, time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, 3D Noise Reduction, Video Rotation, Defog |
| Audio | |
| Audio Capability | Two-way audio (full duplex) |
| Compression | G.711, G.726 |
| Interface | External microphone input |
| Audio output | |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS |
| Interface | 10 Base-T/100 BaseTX Ethernet (RJ-45) |
| *It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard. | |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Five-window video motion detection |
| VCA* | Line crossing detection, field detection, loitering detection |
| Alarm and Event | |
| Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection |
| Alarm Events | Event notification using digital output, HTTP, SMTP, FTP, NAS server and SD Card |
| File upload via HTTP, SMTP, FTP, NAS server and SD card | |
| General | |
| Smart Focus System | Fixed focus |
| Connectors | RJ-45 cable connector for Network/PoE connection |
| Audio input | |
| Audio output | |
| DC 12V power input | |
| Digital input*1 | |
| Digital output*1 | |
| LED Indicator | System power and status indicator |
| Power Input | DC 12V |
| IEEE 802.3af/at PoE Class 0 | |
| Power Consumption | Max. 9 W |
| Dimensions | Ø 88 x 293 mm |
| Weight | Net: 1264 g |
| Casing | Weather-proof IP66-rated housing |
| Vandal-proof IK10-rated metal housing (Casing Only) | |
| Safety Certifications | CE, LVD, FCC Class A, VCCI, C-Tick |
| Operating Temperature | Starting Temperature: -10°C ~ 50°C (14°F~ 122°F) |
| Working Temperature: -20°C ~ 50°C (-4°F~ 122°F) | |
| Warranty | 24 months |
| System Requirements | |
| Operating System | Microsoft Windows 7/8/Vista/XP/2000 |
| Web Browser | Mozilla Firefox 7~43 (Streaming only) |
| Internet Explorer 7/8/9/10/11 | |
| Other Players | VLC: 1.1.11 or above |
| Quicktime: 7 or above | |
| Included Accessories | |
| CD | User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software |
| Others | Quick installation guide, warranty card, sun shield, wall mount bracket, waterproof RJ45 Ethernet enclosure, alignment sticker / desiccant bag, waterproof connector, screw |
Video
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 5MP
Irled : Var
