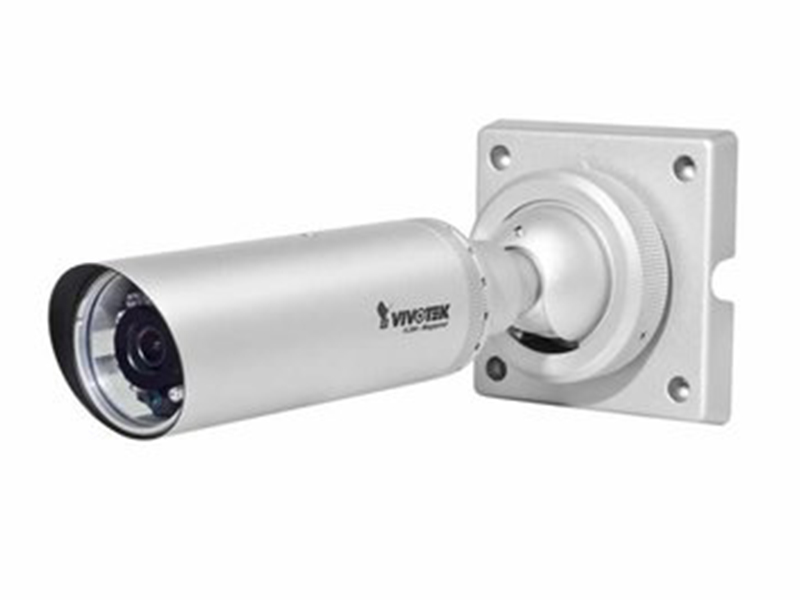

Vivotek IP8364C IP HD Bullet Kamera
Özellikler
- 2-Megapixel CMOS Sensor
- 30 fps @ 1920x1080
- Removable IR-cut Filter for Day and Night Function
- Built-in IR Illuminators, Effective up to 20 Meters
- Real-time H.264 & MJPEG Compression (Dual Codec)
- Weather-proof IP66-rated Housing
- Mounting Bracket with Cable Management for Protected Installation
- Built-in 802.3af Compliant PoE
- Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
- 3D Noise Reduction
Teknik Özellikler
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128 MB |
| RAM | 256 MB |
| Camera Features | |
| Image sensor | 1/2.7" Progressive CMOS |
| Maximum Resolution | 1920x1080 |
| Lens Type | Fixed-focal |
| Focal Length | f = 6 mm |
| Aperture | F1.6 |
| Field of View | 59° (horizontal) |
| 32° (vertical) | |
| 70° (diagonal) | |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| Day & Night | Removable IR-cut filter for day & night function |
| Minimum Illumination | 0.18 Lux @ F1.6, 50 IRE ( Color ) |
| 0.001 Lux @ F1.6, 50 IRE ( B/W ) | |
| Pan / Tilt / Zoom | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| IR Illuminators | Built-in IR illuminators, effective up to 20 meters |
| IR LED*12 | |
| On-board Storage | MicroSD/SDHC/SDXC card slot |
| Video | |
| Compression | H.264 &MJPEG |
| Maximum Frame Rate | H.264: 30 fps @ 1920x1080 |
| MJPEG: 30 fps @ 1920x1080 | |
| Maximum Streams | 2 simultaneous streams |
| S/N Ratio | Above 53 dB |
| Video Streaming | Adjustable resolution, quality and bit rate |
| Configurable video cropping for bandwidth saving | |
| Image Settings | Adjustable image size, quality and bit rate |
| Time stamp, text overlay, flip & mirror | |
| Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks | |
| Scheduled profile settings | |
| 3D Noise Reduction | |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X |
| Interface | 10Base-T / 100BaseTX Ethernet (RJ-45) |
| * It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard. | |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Triple-window video motion detection |
| Alarm and Event | |
| Alarm Triggers | Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection |
| Alarm Events | Event notification using digital output, HTTP, SMTP, FTP and NAS server |
| File upload via HTTP, SMTP, FTP and NAS server | |
| General | |
| Connectors | RJ-45 for Network/PoE connection |
| Digital input*1 | |
| LED Indicator | System power and status indicator |
| Power input | IEEE 802.3af PoE Class 3 |
| Power consumption | Max. 7 W |
| Dimensions | Ø: 60 mm x 294 mm |
| Weight | Net: 1,190 g |
| Casing | Weather-proof IP66-rated housing |
| Mounting bracket with cable management | |
| Safety Certifications | CE, LVD, FCC Class A, VCCI, C-Tick |
| Operating Temperature | Starting Temperature: -10°C ~ 50°C (14°F~122°F) |
| Working Temperature: -20°C ~ 50°C (-4°F ~ 122°F) | |
| Warranty | 24 months |
| System Requirements | |
| Operating System | Microsoft Windows 7/Vista/XP/2000 |
| Browser | Mozilla Firefox 7~10 (streaming only) |
| Internet Explorer 7.x or 8.x | |
| Other Players | VLC: 1.1.11 or above |
| QuickTime: 7 or above | |
Video
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 2MP (1080P)
Irled : Var
