Açıklama

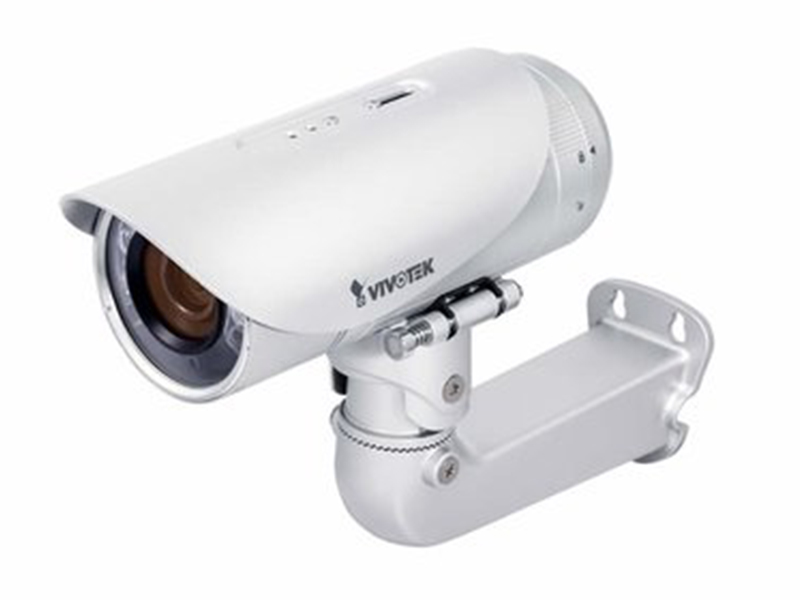

Vivotek IP8355 EH IP HD Bullet Kamera
Özellikler
- 1.3-Megapixel CMOS Sensor
- 30 fps @ 1280x1024, 60 fps @ 1280x1024 (one-stream mode only)
- Motorized P-iris Lens
- Removable IR-cut Filter for Day & Night Function
- Built-in IR Illuminators, Effective up to 30 Meters
- Smart IR Technology to Avoid Overexposure
- 3D Noise Reduction for Low-light Conditions
- WDR Pro II (140dB) to Provide Extreme Visibility in Extremely Bright and Dark Environments
- Weather-proof IP67-rated Housing
- Supreme Night Visibility
- Video Rotation for Corridor Format
- EIS (Electronic Image Stabilization) to Control Image Stability
Teknik Özellikler
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 256 MB |
| RAM | 384 MB |
| Camera Features | |
| Image sensor | 1/3" Progressive CMOS |
| Maximum Resolution | 1280x1024 (1.3MP) |
| Lens Type | Vari-focal, Remote Focus |
| Focal Length | f = 3 ~ 9 mm |
| Aperture | F1.2 ~ F2.3 |
| Auto-iris | P-iris |
| Field of View | 34° ~ 80° (horizontal) |
| 27° ~ 62° (vertical) | |
| 44° ~ 101° (diagonal) | |
| Shutter Time | 1/5 sec. to 1/10,000 sec. |
| WDR Technology | WDR Pro II |
| Day & Night | Removable IR-cut filter for day & night function |
| Smart IR Technology to avoid overexposure | |
| Minimum Illumination | 0.04 Lux @ F1.2 (Color) |
| 0.001 Lux @ F1.2 (B/W) | |
| Pan / Tilt / Zoom | ePTZ: |
| 48x digital zoom (4x on IE plug-in,12x built in) | |
| IR Illuminators | Built-in IR illuminators, effective up to 30 meters |
| IR LED*4, with Smart IR Technology | |
| On-board Storage | SD/SDHC/SDXC card slot |
| Video | |
| Compression | H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ 1280x1024 |
| 60 fps @ 1280x1024 (one-stream mode only) | |
| In both compression modes | |
| Maximum Streams | 2 simultaneous streams |
| S/N Ratio | 64 dB |
| Dynamic Range | 140 dB |
| Video Streaming | Adjustable resolution, quality and bitrate |
| Image Settings | Time stamp, text overlay, flip & mirror |
| configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings | |
| 3D noise reduction, EIS, video rotation | |
| Audio | |
| Audio Capability | Two-way audio (full duplex) |
| Compression | AAC, G.711, G.726 |
| Interface | External microphone input |
| Audio output | |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP |
| Interface | 10Base-T / 100BaseTX Ethernet (RJ-45) |
| * It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard. | |
| ONVIF | Supported, specification available at www.onvif.org |
| Intelligent Video | |
| Video Motion Detection | Triple-window video motion detection |
| Alarm and Event | |
| Alarm Triggers | Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection |
| Alarm Events | Event notification using digital output, HTTP, SMTP, FTP and NAS server |
| File upload via HTTP, SMTP, FTP and NAS server | |
| General | |
| Smart Focus System | Remote focus |
| Connectors | RJ-45 for Network/PoE connection |
| Audio input/output | |
| TV output | |
| AC 24V power input | |
| DC 12V power input | |
| Digital input*1 | |
| Digital output*1 | |
| LED Indicator | System power and status indicator |
| Power input | DC12V/AC24V |
| IEEE 802.3af PoE | |
| Power consumption | DC Max. 30W (Heater on) 8W (Heater off) |
| AC Max. 30W (Heater on) 8.8W (Heater off) | |
| PoE Max. 11W | |
| Dimensions | Ø: 91mm x 221 mm |
| Weight | Net: 1,314g (Body only) |
| Net: 1,911g (with stand and sunshield) | |
| Casing | Weather-proof IP67-rated housing |
| Safety Certifications | CE, LVD, FCC Class A, VCCI, C-Tick, UL |
| Operating Temperature | PoE |
| Working Temperature: -10°C ~ 50°C (14°F ~ 122°F) | |
| Cold Startup Temperature: -10°C (14°F) | |
| DC12V/AC24V | |
| Working Temperature: -50°C ~ 50°C (-58°F ~ 122°F) | |
| Cold Startup Temperature: -40°C (-40°F) | |
| Warranty | 36 months |
| System Requirements | |
| Operating System | Microsoft Windows 8/7/Vista/XP/2000 |
| Browser | Mozilla Firefox 7~10 (Streaming only) |
| Internet Explorer 7/8/9/10 | |
| Other Players | VLC: 1.1.11 or above |
| QuickTime: 7 or above | |
| Included Accessories | |
| CD | User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software |
| Others | Quick installation guide, warranty card, sun shield, wall mount bracket, waterproof RJ45 Ethernet enclosure, alignment sticker, desiccant bag, waterproof connector |
Video
Teknik Kısa
Depolama : Var
Çözünürlük : 1.3MP
Ses : Var
Irled : Var
