Açıklama

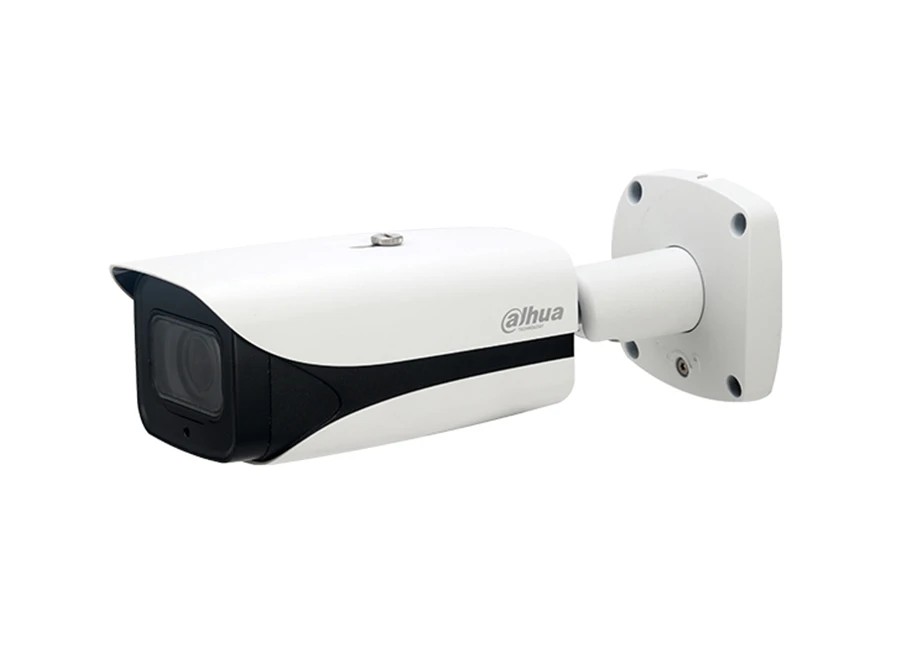

Dahua IPC HFW5442E ZHE 2712 IP Bullet Kamera
Özellikler
- 1/1.8” 4Megapixel progressive scan CMOS
- H.265 & H.264 triple-stream encoding, Support H.265+/H.264+
- 25/30 fps@2688 × 1520, 50/60 fps@1080 (1920 × 1080)
- WDR (140 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
- 2.7 mm–12.0 mm motorized lens
- 2/1 Alarm in/out, 1/1 audio in/out
- Max. IR LEDs Length 50 m
- Micro SD memory, IP67, IK10, PoE+
Teknik Özellikler
| Camera | |||||
| Image Sensor | 1/1.8” 4Megapixel progressive scan CMOS | ||||
| Effective Pixels | 2688 (H) × 1520 (V) | ||||
| RAM/ROM | 1 GB/128 MB | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | Auto/Manual, 1/3 s–1/100000 s | ||||
| Minimum Illumination | 0.003 Lux@F1.8 | ||||
| IR Distance | Distance up to 50 m (164 ft) | ||||
| IR On/Off Control | Auto/Manual | ||||
| IR LEDs | 4 | ||||
| Lens | |||||
| Lens Type | Motorized vari-focal | ||||
| Mount Type | Board-in | ||||
| Focal Length | 2.7 mm–12.0 mm | ||||
| Max. Aperture | F1.8 | ||||
| Angle of View | H: 114°–47°, V: 62°–26° | ||||
| Aperture Type | Auto | ||||
| Close Focus Distance | 1.2 m (3.94 ft) | ||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| W | 58m(190ft) | 23m(75ft) | 12m(39ft) | 6m(20ft) | |
| T | 131m(430ft) | 52m(171ft) | 26m(85ft) | 13m(43ft) | |
| Pan/Tilt/Rotation | |||||
| Pan/Tilt/Rotation Range | Pan: 0˚–360˚; Tilt: 0˚–90˚; Rotation: 0˚–360˚ | ||||
| Artificial Intelligence | |||||
| Face Detection | Support face image capture | ||||
| Face Attributes | Support 6 kinds of face attributes extraction: Age, Gender,Expression (Jolly, Surprise, Normal, Rage, Sad, Disgusted, Confused, Frightened), Glasses, Mouth Mask, Moustache & Beard | ||||
| Perimeter Protection | Tripwire, intrusion (Recognition of vehicle and people), fast moving, loitering detection, parking detection and people gathering | ||||
| People Counting | Support Line crossing/Region/Queueing people counting; Support 4 accesses independent detection, 4 areas independent detection | ||||
| General Intelligence | |||||
| Event Trigger | Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access, Storage anomaly | ||||
| General Intelligence | Object Abandoned/Missing | ||||
| Heat Map | Yes | ||||
| Video | |||||
| Compression | H.265,H.264,H.264B,H.264H, | ||||
| MJPEG (sub stream) | |||||
| Smart Codec | Support H.265+/H.264+ | ||||
| Streaming Capability | 3 Streams | ||||
| Resolution | 2688 × 1520/2560 × 1440/2304 × 1296/1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/ D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240) | ||||
| Frame Rate | Main Stream: 2688×1520 (1 fps–25/30 fps) | ||||
| 2560×1440 (1 fps–25/30 fps) | |||||
| 1920×1080 (1 fps–50/60 fps) | |||||
| Sub Stream: D1 (1 fps–25/30 fps) | |||||
| D1 (1 fps–50/60 fps) | |||||
| Third Stream: 1080P (1 fps–16 fps) | |||||
| Bit Rate Control | CBR/VBR | ||||
| Bit Rate | H.264: 32 Kbps–8192 Kbps | ||||
| H.265: 19 Kbps–8192 Kbps | |||||
| Day/Night | Auto(ICR)/Color/B/W | ||||
| BLC Mode | BLC/HLC/WDR (140 dB) | ||||
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual | ||||
| Gain Control | Auto/Manual | ||||
| Noise Reduction | 3D DNR | ||||
| Motion Detection | Off/On (4 Zone, Rectangle) | ||||
| Region of Interest | Off/On (4 Zone) | ||||
| Electronic Image Stabilization (EIS) | Yes | ||||
| Smart IR | Yes | ||||
| Defog | Yes | ||||
| Flip | °/90°/180°/270° | ||||
| Mirror | Off/On | ||||
| Privacy Masking | Off/On (4 Area, Rectangle) | ||||
| Audio | |||||
| Compression | G.711a, G.711Mu, AAC, G.726, G.723 | ||||
| Network | |||||
| Ethernet | RJ-45 (10/100Base-T) | ||||
| Protocol | |||||
| Interoperability | ONVIF (Profile S/Profile G/Profile T), CGI, Milstone, Genetec, P2P | ||||
| Streaming Method | Unicast/Multicast | ||||
| Max. User Access | 20 Users | ||||
| Edge Storage | NAS;FTP;SFTP | ||||
| Micro SD card 256 GB | |||||
| Web Viewer | IE (versions newer than IE8), Chrome, | ||||
| Firefox, Safari (versions newer than Safari 12) | |||||
| Management Software | Smart PSS, DSS, DMSS | ||||
| Smart Phone | iOS, Android | ||||
| Certifications | |||||
| Certifications | CE-LVD: EN60950-1 | ||||
| CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU | |||||
| FCC: 47 CFR FCC Part 15, Subpart B | |||||
| UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 | |||||
| Interface | |||||
| Audio Interface | 1/1 channel In/Out | ||||
| RS485 | N/A | ||||
| Alarm | 2 channel In: 5mA 5V DC | ||||
| 1 channel Out: 300mA 12V DC | |||||
| Electrical | |||||
| Power Supply | DC 12V (±30%), PoE+ (802.3at) (Class 4) | ||||
| Power Consumption | <15.2W | ||||
| Environmental | |||||
| Operating Conditions | -40° C to +60° C (-40° F to +140° F)/Less than 95% RH | ||||
| Storage Conditions | -30° C to +60° C (-22° F to +140° F) | ||||
| Ingress Protection | IP67 | ||||
| Vandal Resistance | IK10 | ||||
| Construction | |||||
| Casing | Metal, plastic | ||||
| Dimensions | 273.2 mm × 95.0 mm × 95.0 mm (10.76” × 3.74” × 3.74”) | ||||
| Net Weight | 1.11 kg (2.44 lb) | ||||
| Gross Weight | 1.51 kg (3.33 lb) | ||||
Dahua IPC HFW5442E ZHE 2712 IP Bullet Kamera Pdf Dosyası398.54 KB
Teknik Kısa
Depolama : Var
Çözünürlük : 4MP
Depolama : Var
