Açıklama

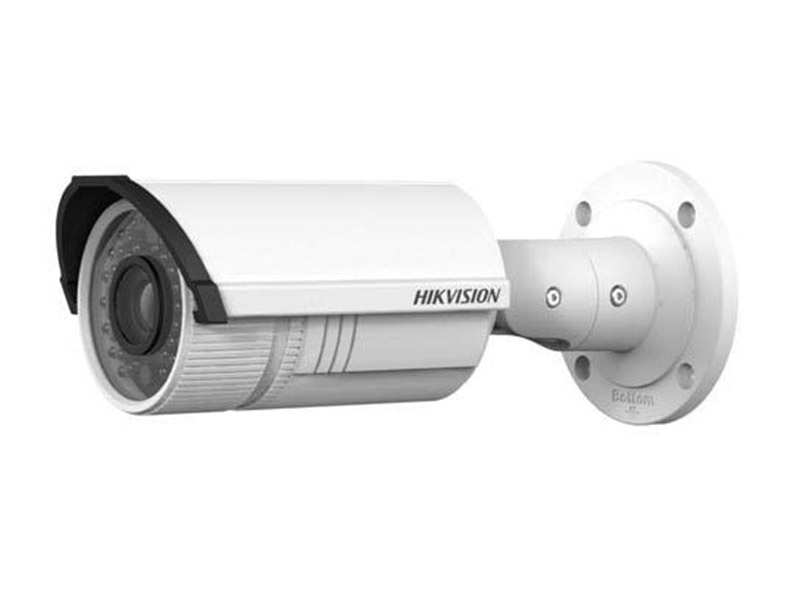

Hikvision DS 2CD2632F IS IP Bullet Kamera

Özellikler

3 megapixel high resolution
2.8-12mm varifocal lens
3D DNR & DWDR & BLC
IP66 rating
IR range: up to 30m
Audio and alarm optional
True day / night

Teknik Özellikler

Camera
Image Sensor	1/3" Progressive Scan CMOS
Min. Illumination	0.07Lux @(F1.2,AGC ON) ,0 Lux with IR
	0.1Lux @(F1.4,AGC ON), 0 Lux with IR
Shutter time	1/3s ~ 1/100,000s
Lens	2.8 - 12 mm @ F1.4,Angle of view: 105.2°-31.9°
Lens Mount	φ14
Day& Night	IR cut filter with auto switch
Wide Dynamic Range	Digital WDR
Digital noise reduction	3D DNR
Compression Standard
Video Compression	H.264/MJPEG
Video bit rate	32Kbps~12Mbps
Audio Compression	G.711/G.722.1/G.726/MP2L2
Dual Stream	Yes
Max. Image Resolution	2048×1536
Frame Rate	50Hz: 20fps (2048 × 1536), 25fps (1920 × 1080), 25fps (1280 × 720)
	60Hz: 20fps (2048 × 1536), 30fps (1920 × 1080), 30fps (1280 × 720)
Image Settings	Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
BLC	Yes, zone configurable
ROI	Support
Network
Network Storage	NAS (Support NFS,SMB/CIFS)
Alarm Trigger	Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception
Protocols	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
	PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
General Function	User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask
System Compatibility	ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface
Communication Interface	1 RJ45 10M / 100M Ethernet interface
On-board storage	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button	Yes
General
Operating Conditions	-30 °C ~ 60 °C (-22 °F ~ 140 °F)
	Humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 10%, PoE (802.3af)
Power Consumption	Max. 5.5 W (Max. 7.5 W with IR cut filter on)
Weather Proof	IP66
IR Range	Up to 30m
Dimensions	95×105×258.6 mm (3.74” × 4.13” × 10.18”)
Weight	1200g
NOTE	* “-S” series support 1-ch audio I/O and 1-ch alarm I/O
