Açıklama

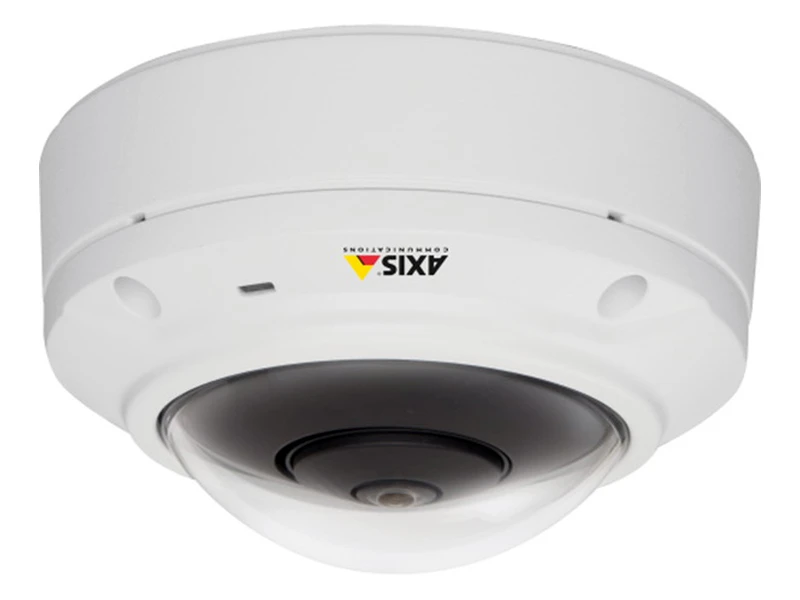

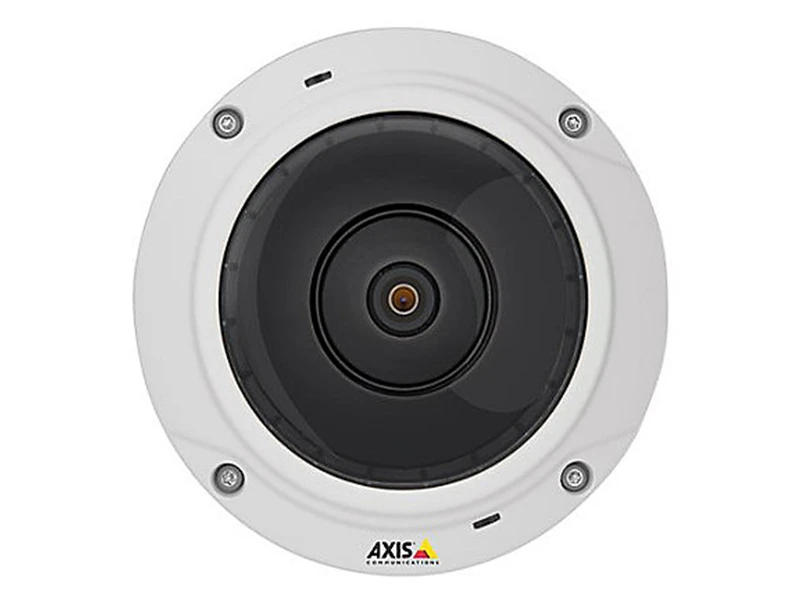

Axis M3037 PVE IP HD Dome Kamera
Özellikler
- 1/3.2” progressive scan RGB CMOS
- Overview: 2592x1944 (5 MP) to 160x120
- Fixed, 1.27 mm, F2.0, M12 mount, Fixed iris, IR corrected
- Horizontal angle of view: 187°
- Vertical angle of view: 168°
- Day Night Automatically removable infrared-cut filter
- Color: 0.3-200000 lux
- H.264 (MPEG-4 Part 10/AVC)
- H.264 Baseline and Main Profile, Motion JPEG
- Multiple, individually configurable streams in H.264 and Motion JPEG
- Audio streaming Two-way, full duplex
- Echo cancellation and noise reduction
- Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3, max. 5.1 W, typical: 3.4 W
- microSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included)
- Built-in weather-proof speaker and microphone
- SIP for IP phone system integration
- Digital PTZ and multi-view streaming with de-warped views
- Enhanced capacity for video analytics
Teknik Özellikler
| Video Input |
| Audio Support : Yes |
| Audio Support Features : Built-in microphone , Built-in speaker , Two-way audio capability |
| Camera Mechanical Design : Fixed dome |
| Camera Type : Network surveillance camera |
| Color or B&W : Color |
| Connectivity Technology : Wired |
| Day & Night Functionality : Yes |
| Digital Video Format : H.264 , MJPEG |
| Features : Backlight compensation , Brightness control , Color control , Contrast control , Exposure compensation , Image mirror , ONVIF support , Power over Ethernet , Privacy Mask Function , White balance , Wide Dynamic Range (WDR) |
| Max Digital Video Resolution : 2592 X 1944 |
| Panning Range (degree) : 360 |
| Shutter Speed (Max) : 1/24500 sec |
| Shutter Speed (Min) : 2 sec |
| Tilting Range (degree) : 180 |
| Optical Sensor |
| Optical Sensor Type : CMOS |
| Sensor Size : 1/3.2" |
| Sensor Size (metric) : 7.9 mm ( 1/3.2" ) |
| Networking |
| Network Interface : Ethernet 10Base-T/100Base-TX |
| Network Protocols : ARP , Bonjour , CIFS , DDNS , DHCP , DNS , FTP , HTTP , HTTPS , ICMP , IGMP , IPv4 , IPv6 , NTP , QOS , RTCP , RTP , RTSP , SFTP , SMB , SMTP , SNMP 1 , SNMP 2c , SNMP 3 , SOCKS , SSH , SSL , TCP/IP , TLS , UDP/IP , UPnP |
| Environmental Parameters |
| Humidity Range Operating : 10 - 100% |
| Max Operating Temperature : 122 °F |
| Min Operating Temperature : -22 °F |
| Header |
| Brand : Axis |
| Compatibility : PC |
| Manufacturer : Axis Communications |
| Model : M3037-PVE |
| Packaged Quantity : 1 |
| Product Line : AXIS |
| Lens System |
| Angular Field of View (H, max, degree) : 187 |
| Angular Field of View (V, max, degree) : 168 |
| Lens Aperture : F/2.0 |
| Lens Iris : Fixed iris |
| Lens Mount : M12 mount |
| Max Focal Length : 1.27 mm |
| Miscellaneous |
| Color : White |
| Color Category : White |
| Compliant Standards : CISPR 22 Class B , EN 61000-6-1 , EN 61000-6-2 , EN55022 Class B , EN55024 , FCC CFR47 Part 15 B , ICES-003 Class B , IEC 60529 IP66 , IEC 62262 IK10 , KN22 , KN24 , NEMA Type 4X , VCCI Class B |
| Included Accessories : Mounting kit |
| Power Device |
| Power Consumption Operational : 3.4 Watt |
| Service |
| Support Details Full Contract Period : 1 year |
| Support Details Type : Limited warranty |
| Digital Camera |
| Supported Flash Memory : microSD Card , microSDHC Card , microSDXC Card |
| Dimensions & Weight |
| Depth : 5.2 in |
| Height : 2.9 in |
| Weight : 26.1 oz |
| Width : 5.2 in |
| CCTV |
| Equipment Category : CCTV cameras |
| CCTV Camera |
| Alarm Inputs Qty : 1 |
| Alarm Outputs Qty : 1 |
| Outdoor : Yes |
| Protection : Vandal / weatherproof |
| CCTV Camera Sensitivity |
| F-number : F2.0 |
| Minimum Illumination (lux) : 0.3 |
| Mode : Color |
| Minimum Illumination (lux) : 0.06 |
| Mode : B&W |
| Flash Memory |
| Installed Size : 128 MB |
| Interfaces |
| Connector : RJ-45 |
| Type : LAN |
| Power |
| Low Voltage Power : PoE Class 3 |
| RAM |
| Installed Size : 512 MB |
| Service & Support |
| Type : 1 year warranty |
Axis M3037 PVE IP HD Dome Kamera Pdf Dosyası493.32 KB
Axis M3037 PVE IP HD Dome Kamera Kullanıcı Kılavuzu (ing) Pdf Dosyası1.17 MB
Teknik Kısa
Depolama : Var
Çözünürlük : 5MP
