Açıklama

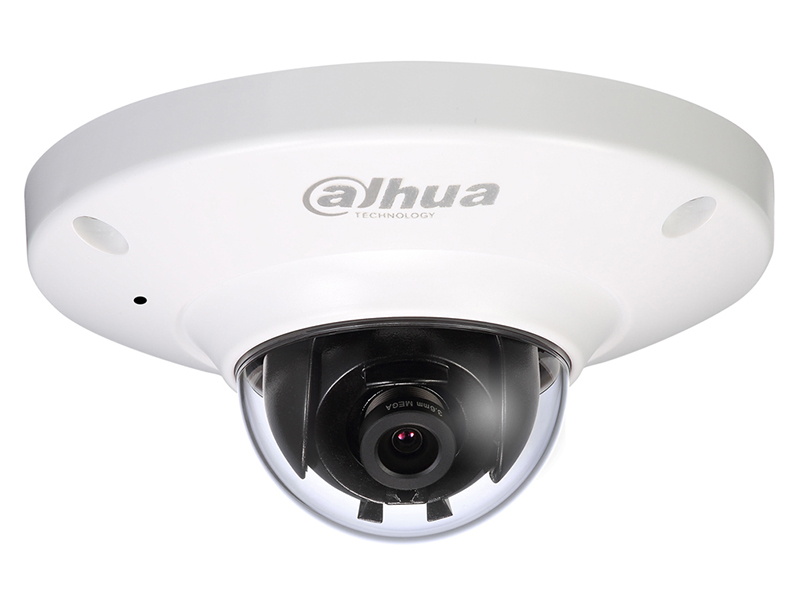

Dahua IPC HDB4300CP 600B IP HD Dome Kamera

Depolama : Var

Çözünürlük : 3MP

Camera
Image Sensor		1/3” 3Megapixel progressive scan CMOS
Effective Pixels		2052(H)x1536(V)
Scanning System		Progressive
Electronic ShutterSpeed		Auto/Manual 1/3(4)-1/10000
Min. Illumination		0.01lux/F1.2(color)
S/N Ratio		More than 50db
Video Output		N/A
Camera Features
Max. IR LEDs Length		N/A
Day/Night		Auto(Electronic)/Color/B/W
Backlight Compensation		Off/BLC/HLC/DWDR
White Balance		Auto/Manual
Gain Control		Auto/Manual
Noise Reduction		3D
Privacy Masking		Up to 4 areas
Lens
Focal Length		3.6mm (2.8mm,6mm optional)
Max Aperture		F1.8
Focus Control		Manual
Angle of View		H:71.9°(89.8°/53.5°)
Lens Type		Fixed lens
Mount Type		Board-in Type
Video
Compression		H.264/ MJPEG
Resolution		3.0M(2048´1536)/1080P(1920×1080) / 720P(1280×720) /
		D1(704×576/704×480) / CIF(352×288/352×240)
Frame Rate	Main Stream	3M(1~20fps)/1080P/720P(1 - 25/30fps)
Frame Rate	Sub Stream	D1/CIF(1 - 25/30fps)
Bit Rate		H.264: 32K - 8192Kbps
Audio
Compression		G.711a/G.711u/PCM(-A)
Interface		Buil-in Mic(-A)
Network
Ethernet		RJ-45 (10/100Base-T)
Wi-Fi		N/A
Protocol		IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF		ONVIF Profile S
Max. User Access		20 users
Smart Phone		iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot		Micro SD, Max 64GB
RS485		N/A
Alarm		1/1 channel In/Out(-A)
PIR Sensor Range		N/A
General
Power Supply		DC12V, PoE(802.3af)
Power Consumption		<3W
Working Environment		-20°C-+60°C, Less than 95% RH
Ingress Protection		IP66
Vandal Resistance		IK10
Dimensions		Φ110mm×54mm
Weight		0.25kg
