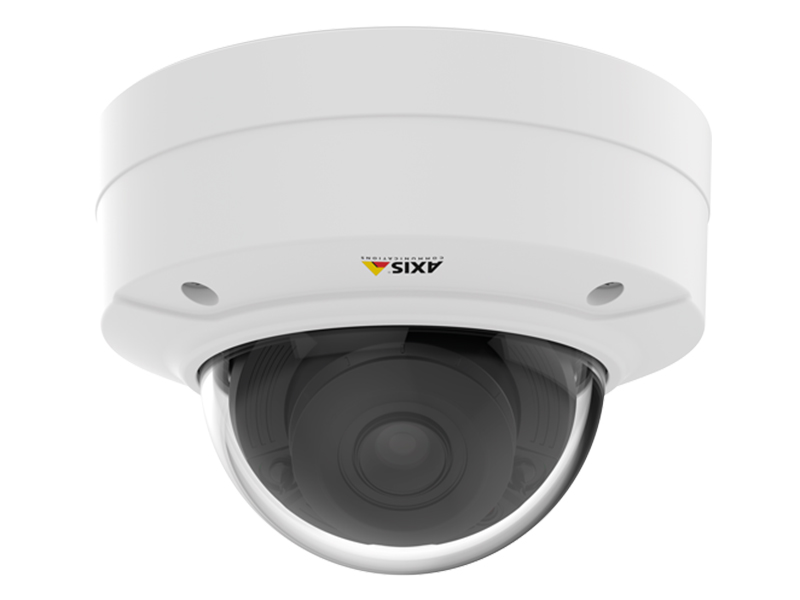

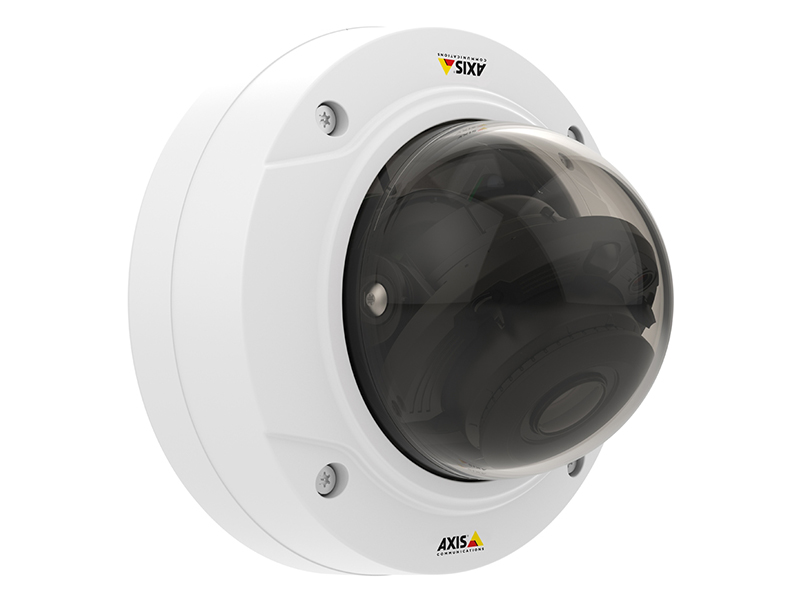

Axis P3224 LV IP HD Dome Kamera
Özellikler
- Day/night fixed dome with support for Optimized IR with built-in adaptable IR illuminators,
- WDR – Forensic Capture.
- Discreet, dust and IK08 vandal-resistant indoor casing.
- Varifocal 2.8-10 mm P-Iris lens, remote focus and zoom.
- Multiple, individually configurable H.264 and Motion JPEG streams;
- Max HDTV 720p or 1MP resolution at 60 fps.
- Axis’ Zipstream technology for reduced bandwidth and storage needs.
- Video motion detection and active tampering alarm.
- Memory card slot for optional local video storage.
- Power over Ethernet. Midspan not included.
- Includes mounting bracket for wall/ceiling or junction boxes.
Teknik Özellikler
| Video Input |
| Camera Mechanical Design : Pan / tilt / zoom |
| Camera Type : Network surveillance camera |
| Color or B&W : Color |
| Connectivity Technology : Wired |
| Day & Night Functionality : Yes |
| Digital Video Capture Resolution : 1280 x 960 , 160 x 90 |
| Digital Video Format : H.264 , MJPEG , MPEG-4 |
| Features : Auto exposure control , Backlight compensation , Brightness control , Color control , Contrast control , Digital PTZ function , Infrared cut filter , IR Corrected lens , P-Iris control , Password protection , Sharpness control , White balance , Wide Dynamic Range (WDR) , Zipstream technology |
| Max Digital Video Resolution : 1280 x 960 |
| Panning Range (degree) : -180 to +180 |
| Shutter Speed (Max) : 1/142850 sec |
| Shutter Speed (Min) : 2 sec |
| Tilting Range (degree) : -5 to 175 |
| Video Modes : 720p |
| Optical Sensor |
| Optical Sensor Type : CMOS |
| Sensor Size : 1/2.8" |
| Sensor Size (metric) : 9.1 mm ( 1/2.8" ) |
| Networking |
| Network Interface : Ethernet 10Base-T/100Base-TX |
| Network Protocols : ARP , Bonjour , CIFS , DDNS , DHCP , DNS , FTP , HTTP , HTTPS , ICMP , IGMP , IPv4 , IPv6 , NTP , QOS , RTCP , RTP , RTSP , SFTP , SMB , SMTP , SNMP 1 , SNMP 2c , SNMP 3 , SOCKS , SSH , SSL , TCP/IP , TLS , UDP/IP , UPnP |
| Header |
| Brand : Axis |
| Compatibility : PC |
| Manufacturer : Axis Communications |
| Model : P3224-LV Network Camera |
| Packaged Quantity : 1 |
| Product Line : AXIS |
| Lens System |
| Angular Field of View (H, max, degree) : 92 |
| Angular Field of View (H, min, degree) : 34 |
| Angular Field of View (V, max, degree) : 50 |
| Angular Field of View (V, min, degree) : 20 |
| Auto Iris Control : P-Iris |
| Focal Length Control : Vari-focal |
| Lens Aperture : F/1.4 |
| Max Focal Length : 10.5 mm |
| Min Focal Length : 3 mm |
| Miscellaneous |
| Color : White |
| Color Category : Black , White |
| Compliant Standards : AS/NZS CISPR 22 Class B , C-Tick , EN 50121-4 , EN 55024 , EN 60950-1 , EN 60950-22 , EN 61000-6-1 , EN 61000-6-2 , EN 62471:2008 , EN55022 Class B , FCC Part 15 , ICES-003 Class B , IEC 60068-2-1 , IEC 60068-2-14 , IEC 60068-2-2 , IEC 60068-2-27 , IEC 60068-2-30 , IEC 60068-2-6 , IEC 60068-2-78 , IEC 60950-1 , IEC 60950-22 , IEC 62236-4 , IEC 62262 IK08 , IEC 62471 , IP52 , KCC KN22 , KN24 , UL 60950-1 , UL 60950-22 , VCCI Class B |
| Included Accessories : Mounting kit |
| Power Device |
| Power Consumption Operational : 10.2 Watt |
| Service |
| Support Details Full Contract Period : 3 years |
| Support Details Type : Limited warranty |
| Digital Camera |
| Supported Flash Memory : SD Memory Card , SDHC Memory Card , SDXC Memory Card |
| Dimensions & Weight |
| Depth : 5.9 in |
| Height : 4 in |
| Weight : 20.46 oz |
| Width : 5.9 in |
| CCTV |
| Equipment Category : CCTV cameras |
| CCTV Camera |
| Infrared Distance : 82 ft |
| Protection : Dustproof / vandal-proof |
| CCTV Camera Sensitivity |
| F-number : F1.4 |
| Minimum Illumination (lux) : 0.25 |
| Mode : Color |
| Minimum Illumination (lux) : 0.05 |
| Mode : B&W |
| Minimum Illumination (lux) : 0 |
| Mode : IR |
| Flash Memory |
| Installed Size : 256 MB |
| Interfaces |
| Connector : RJ-45 |
| Type : LAN |
| Power |
| Low Voltage Power : PoE Plus |
| RAM |
| Installed Size : 512 MB |
| Service & Support |
| Type : 3 years warranty |
Teknik Kısa
Çözünürlük : 1MP (720P)
Depolama : Var
