Açıklama

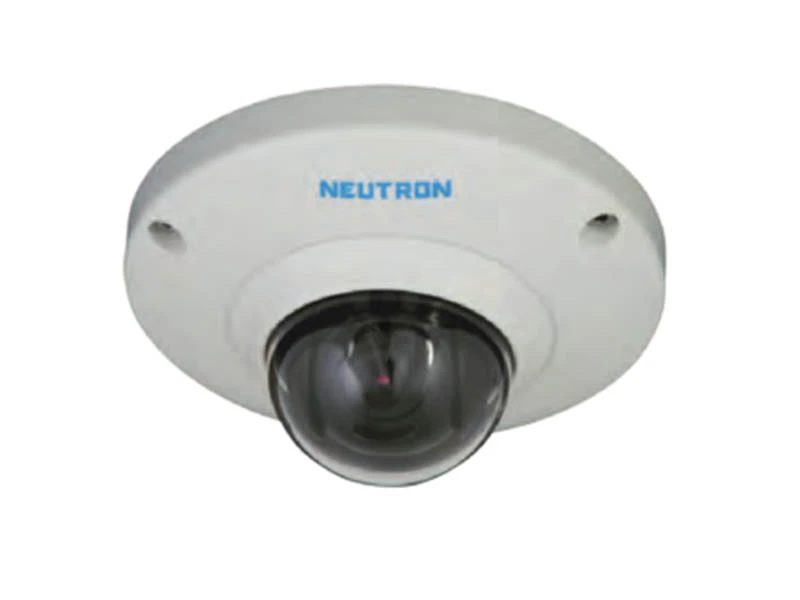

Neutron IPC HD1105 C IP Dome Kamera

Özellikler

1/4” 1Megapixel aşamalı tarama Aptina CMOS
H.264 & MJPEG dual-stream encoding
Max 25/30fps @ 720P(1280×720)
DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & NMSS
3.6mm fixed lens (2.8mm,6mm optional)
DC12V

Camera
Image Sensor		1/4” 1Megapixel progressive scan CMOS
Effective Pixels		1280(H)´720(V)
Scanning System		Progressive
Electronic Shutter Speed		Auto/Manual, 1/3(4)~1/10000s
Min. Illumination		Renk : 0.1 Lux/F1.2
S/N Ratio		More than 50dB
Video Output		N/A
Camera Features
Max. IR LEDs Length		N/A
Day/Night		Auto(ICR)/Color/B/W
Backlight Compensation		BLC / HLC / DWDR
White Balance		Auto/Manual
Gain Control		Auto/Manual
Noise Reduction		3D
Privacy Masking		Up to 4 areas
Lens
Focal Length		3.6mm (2,8,6mm optional)
Max Aperture		F1.8(F2.0/F1.8)
Focus Control		Manual
Angle of View		H:70°(114°/46°/)
Lens Type		N/A
Mount Type		Board-in Type
Video
Compression		H.264/MJPEG
Resolution		720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate	Main Stream	720P(1 ~ 25/30fps)
	Sub Stream	D1/CIF(1~25/30fps)
Bit Rate		H.264:16K ~ 8192Kbps
Audio
Compression		N/A
Interface		N/A
Network
Ethernet		RJ-45 (10/100Base-T)
Wi-Fi		N/A
Protocol		IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour,
ONVIF		ONVIF Profile S
Max. User Access		10 users
Smart Phone		iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot		N/A
RS485		N/A
Alarm		N/A
PIR Sensor Range		N/A
General
Power Supply		DC12V,Poe
Power Consumption		<1.5W
Working Environment		-30°C~+60°C, Less than 95% RH
Ingress Protection		N/A
Vandal Resistance		N/A
Dimensions		Φ110mm×54mm
Weight		0.2kg
