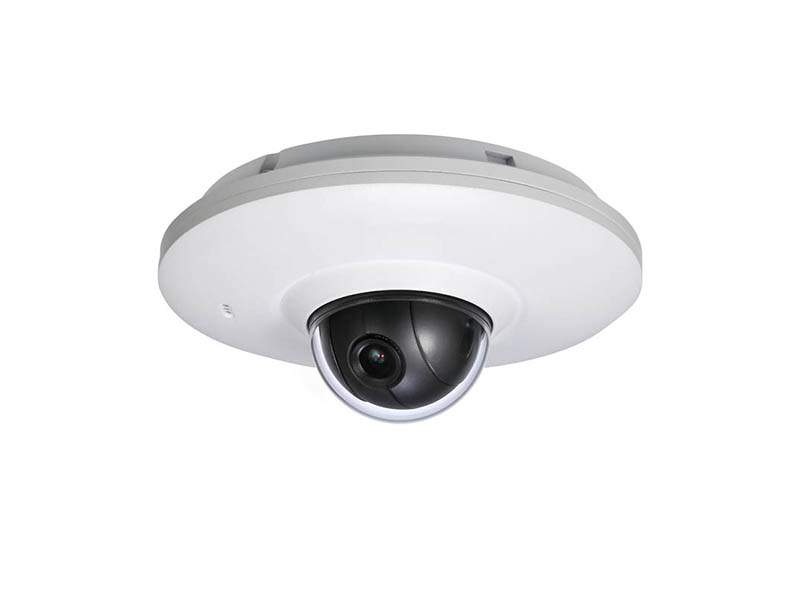

Neutron IPC HDB4100FN PT IP HD Dome Kamera
Özellikler
- 1/3” 1.3Megapixel progressive scan CMOS
- H.264 & MJPEG dual-stream encoding
- Max 25/30fps @ 1.3MP (1280x960)
- Day/Night(Electronic), 3DNR, AWB,AGC,BLC
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
- Max 100°/s preset speed, ±180° Pan range, 90°Tilt range
- 3.6mm fixed lens
- Micro SD memory, IP66, IK10
Teknik Özellikler
| Camera | ||
| Image Sensor | 1/3” 1.3Megapixel progressive scan CMOS | |
| Effective Pixels | 1280(H)x960(V) | |
| Scanning System | Progressive | |
| Electronic ShutterSpeed | Auto/Manual 1/3(4)~1/10000 | |
| Min. Illumination | 0.01Lux/F1.2(color) | |
| S/N Ratio | More than 50db | |
| Video Output | N/A | |
| Camera Features | ||
| Max. IR LEDs Length | N/A | |
| Day/Night | Auto(Electronic)/Color/B/W | |
| Backlight Compensation | Off/BLC/HLC/DWDR | |
| White Balance | Auto/Manual | |
| Gain Control | Auto/Manual | |
| Noise Reduction | 3D | |
| Privacy Masking | Up to 4 areas | |
| Digital Zoom | 3x | |
| Lens | ||
| Focal Length | 3.6mm | |
| Max Aperture | F1.2 | |
| Focus Control | Manual | |
| Angle of View | H:70° | |
| Lens Type | Fixed lens | |
| Mount Type | Board-in Type | |
| PT | ||
| Pan/ Tilt Range | Pan: 0°~±180°; Tilt: 0°~90° | |
| Preset Speed | 100°/s | |
| Preset | 25 | |
| Video | ||
| Compression | H.264/ MJPEG | |
| Resolution | 1.3M(1280x960)/720P(1280×720) / | |
| D1(704×576/704×480) /CIF(352×288/352×240) | ||
| Frame Rate | Main Stream | 1.3M/720P(1 ~ 25/30fps) |
| Sub Stream | D1/CIF(1 ~ 25/30fps) | |
| Bit Rate | H.264: 32K ~ 8192Kbps | |
| Audio | ||
| Compression | G.711a/G.711u/PCM | |
| Interface | Bulit-in Mic | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Wi-Fi | N/A | |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour | |
| ONVIF | ONVIF Profile S | |
| Max. User Access | 20 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Auxiliary Interface | ||
| Memory Slot | Micro SD, Max 64GB | |
| RS485 | N/A | |
| Alarm | N/A | |
| PIR Sensor Range | N/A | |
| General | ||
| Power Supply | DC12V, PoE(802.3af) | |
| Power Consumption | Max 2.5W | |
| Working Environment | -20°C~+60°C, Less than 95% RH | |
| Ingress Protection | IP66 | |
| Vandal Resistance | IK10 | |
| Dimensions | Φ130mm×57.5mm | |
| Weight | 0.25kg | |
Teknik Kısa
Çözünürlük : 1.3MP
Depolama : Var
