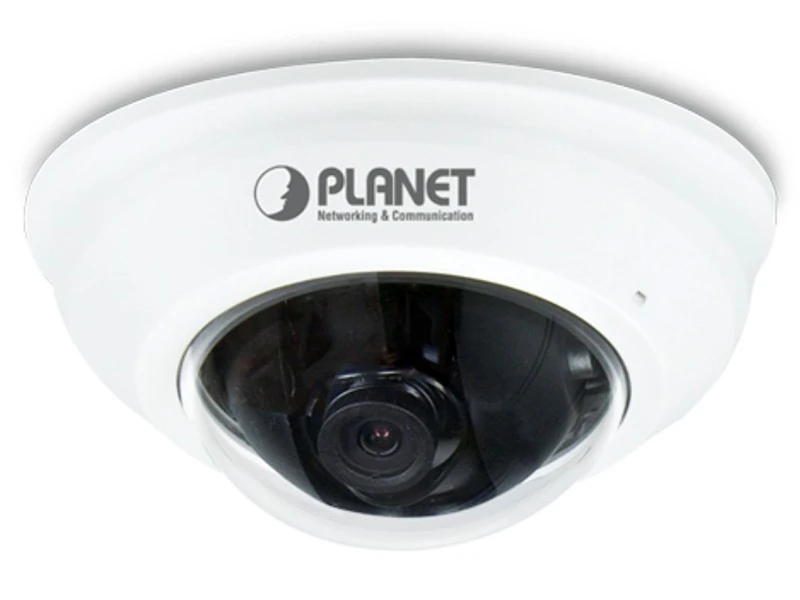

Planet ICA 4200 IP HD Dome Kamera
Teknik Özellikler
| Camera |
| Image device |
| 1/2.5" 2 mega-pixel progressive scan CMOS sensor |
| Lens |
| 3.6 mm fixed lens |
| Angle of view: |
| H: 60.79 degrees |
| V: 36.52 degrees |
| D: 67.88 degrees |
| Min. Illumination |
| 0.5 lux @ F1.8 |
| Effective Pixels |
| 1920 x 1080 pixels |
| Image |
| Video Encoder |
| H.264 / MPEG-4 / M-JPEG |
| High Resolution Mode |
| H.264@ 1080p |
| MPEG4@ 1080p |
| MJPEG@ D1 |
| Frame Rate |
| Up to 30fps for all resolutions |
| Image Setting |
| Brightness, sharpness, contrast, saturation, mirror, AWB, WDR, BLC, text, time and image overlay |
| Streaming |
| Simultaneous multi-profile streaming |
| Streaming over UDP, TCP, HTTP, or HTTPS |
| M-JPEG streaming over HTTP |
| Controllable frame rate and bandwidth |
| Constant and variable bit rate (H.264) |
| Audio |
| Audio Streaming |
| Built-in microphone |
| Audio Compression |
| G.711 |
| Audio Input |
| Adjustable audio input gain |
| Network and Configuration |
| Standard |
| IEEE 802.3 10BASE-T |
| IEEE 802.3u 100BASE-TX |
| IEEE 802.3af |
| Protocol |
| TCP/IP, IPv4, IPv6, UDP, ICMP, DHCP, NTP, DNS, PLANET DDNS/PLANET Easy DDNS, SMTP, FTP, HTTP, HTTPS, Samba, PPPoE, UPnP, Bonjour, RTP, RTSP, RTCP |
| Security |
| Password protection, IP address filtering, HTTPS, |
| QoS/DSCP |
| Users |
| 5 clients on-line monitoring at the same time |
| System Integration |
| Application Programming Interface |
| Open API for software integration |
| ONVIF Compliant |
| Alarm Triggering |
| Intelligent video motion detection and external input |
| 3-zone video motion detection |
| Alarm Events |
| File upload via SD card, FTP, email and SAMBA. |
| Video Buffering |
| Configurable Pre/Post alarm buffering |
| General |
| Power Requirements |
| IEEE 802.3af Class 3 |
| Power Consumption |
| 4W max. |
| Operating Temperature |
| -10 ~ 45 degrees C |
| Operating Humidity |
| 20 ~ 80% (non-condensing) |
| Weight |
| 180g |
| Dimensions |
| 95 x 50 mm |
| Emission |
| CE, FCC |
| Connectors |
| 10/100 Mbps Ethernet, RJ45 |
| Built-in microphone |
| Digital in |
| Micro SD/SDHC card slot (Max. 32GB, Class 10) |
| Factory default reset button |
Teknik Kısa
Depolama : Var
Çözünürlük : 2MP (1080P)
