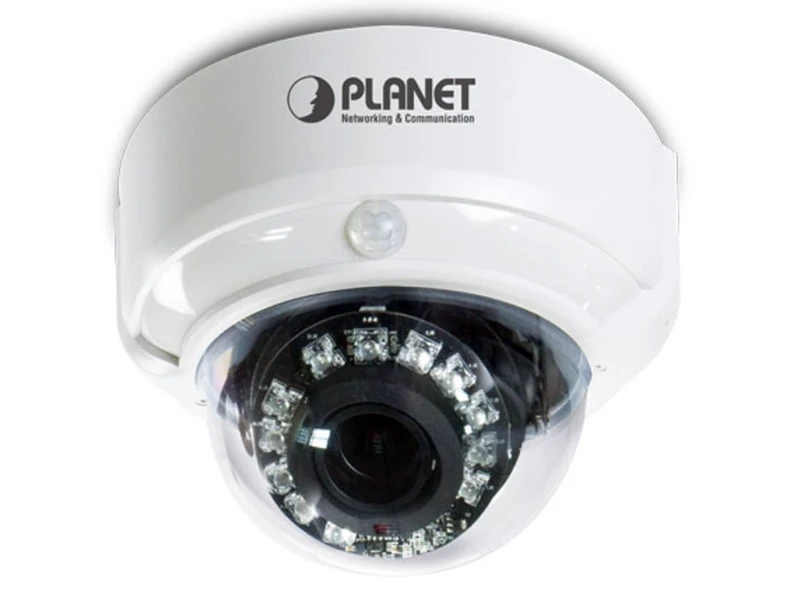

Planet ICA 4200V IP HD Dome Kamera
Teknik Özellikler
| Camera |
| Image device |
| 1/2.7" 2 mega-pixel progressive scan CMOS sensor |
| Lens |
| Vari-focal 2.8~12.0mm, DC auto-iris |
| Mechanical IR-cut filter |
| Angle of view : horizontal: 35.8 ~ 100.5 degrees / vertical: 26.8 ~ 73.4 degrees |
| Min Illumination |
| 0.5 lux (color) @ F1.2 |
| 0.1 lux (B/W) |
| IR Illuminations |
| IR LED x 12, 850nm |
| Built-in IR illuminators, effective up to 20 meters |
| *The IR distance is based on the environment |
| Effective Pixels |
| 1920 x 1080 pixels |
| Image |
| Video Compression |
| H.264 / M-JPEG |
| Video Resolution |
| 1080p mode |
| H.264: 1080p, 720p, 640 x 360, 320 x 180 |
| M-JPEG: 1080p, 720p, 640 x 360, 320 x 180 |
| 720p mode |
| H.264: 720p, 640 x 360, 320 x 180, 160 x 80 |
| M-JPEG: 720p, 640 x 360, 320 x 180, 160 x 80 |
| Frame Rate |
| Up to 30fps for all resolutions |
| Image Setting |
| AE, AWB |
| 3D noise reduction |
| WDR |
| Color, hue, brightness, sharpness, contrast |
| Mirror/Flip |
| 90o rotation |
| De-fog |
| Anti-false color |
| Lens distortion correction |
| 10 privacy masks |
| Text, time and date overlay |
| Overlay image on video |
| Streaming |
| Simultaneously multi-profile streaming |
| Streaming over UDP, TCP, HTTP, or HTTPS |
| M-JPEG streaming over HTTP (server push) |
| Controllable frame rate and bandwidth |
| Constant and variable bit rate (H.264) |
| AOI |
| ROI |
| Audio |
| Audio Streaming |
| Two-way audio |
| Audio Compression |
| RTSP: G.711 64kbps, G.726 32kbps |
| Microphone |
| External microphone input |
| Audio Output |
| Adjustable audio output gain |
| Network and Configuration |
| Standard |
| IEEE 802.3 10BASE-T |
| IEEE 802.3u 100BASE-TX |
| Protocol |
| IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, DIPS, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, Samba, ICMP, SNMP, QoS |
| Security |
| Password protection, IP address filtering, HTTPS encrypted data transmission, user access log |
| Users |
| 8 clients on-line monitoring at the same time |
| System Integration |
| Application Programming Interface |
| Open API for software integration |
| ONVIF Compliant |
| Alarm Triggers |
| Intelligent motion, tampering, audio detection, network disconnect and external input |
| Alarm Events |
| File upload via FTP, Samba to NAS, SD card or email |
| Notification via email, HTTP, and TCP |
| External output activation |
| Audio alerting output |
| Video Buffer |
| Pre- and post-alarm buffering |
| General |
| Power Requirement |
| 12V DC, 1A |
| IEEE 802.3af Class 3 |
| Power Consumption |
| 8W max. |
| Operating Temperature |
| 0 ~ 50 degrees C |
| Operating Humidity |
| 20 ~ 80% (non-condensing) |
| Weight |
| 635g |
| Dimensions |
| 152 x 109 mm |
| Emission |
| CE, FCC |
| Connectors |
| 10/100 Mbps Ethernet, RJ45 |
| DC power jack |
| Terminal block for 1 alarm input and 1 output |
| External mic input |
| Audio out |
| Composite video out (max. resolution: D1 720 x 480 pixel)) |
| Micro SD/SDHC card (Max. 32GB, Class 6) |
| Factory default reset button |
Teknik Kısa
Çözünürlük : 2MP (1080P)
Irled : Var
Ses : Var
Depolama : Var
