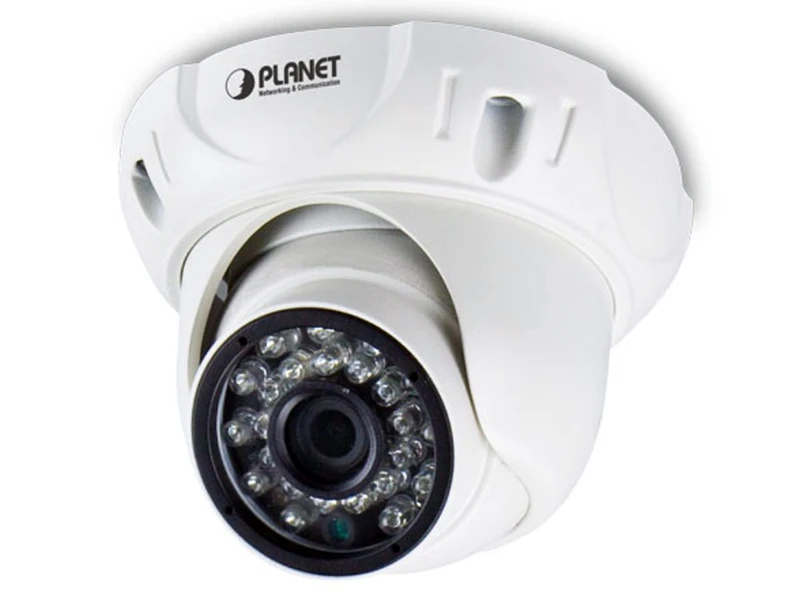

Planet ICA 4150 IP HD Dome Kamera
Teknik Özellikler
| Camera |
| Image device |
| 1/4" 1 mega-pixel progressive scan CMOS sensor |
| Lens |
| Fixed lens 3.6mm, F1.4 |
| Angle of view |
| Horizontal: 75 degrees |
| Vertical: 55 degrees |
| Min Illumination |
| 0.1 lux (color) @ F1.2 |
| lux (B/W) |
| IR Illuminations |
| IR LED x 24, 850nm |
| Built-in IR illuminators, effective up to 20 meters |
| *The IR distance is based on the environment |
| Effective Pixels |
| 1280 x 720 pixels |
| Image |
| Video Compression |
| H.264 |
| Video Resolution |
| 720p / 720 x 576 / 640 x 480 / 352 x 288 / 320 x 240 / 174 x 144 |
| Frame Rate |
| Up to 30fps for all resolutions |
| Image Setting |
| 2D noise reduction |
| WDR |
| Brightness, saturation, contrast |
| Mirror/Rotate |
| Privacy mask |
| Text, time and date overlay |
| Streaming |
| Simultaneous multi-profile streaming |
| Streaming over TCP, HTTP, or HTTPS |
| Controllable frame rate and bandwidth |
| Constant and variable bit rate (H.264) |
| Network and Configuration |
| Standard |
| IEEE 802.3 10BASE-T |
| IEEE 802.3u 100BASE-TX |
| IEEE 802.3af Power over Ethernet |
| Protocol |
| IPv4, TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, SMTP |
| Security |
| Password protection, HTTPS encrypted data transmission, user access log |
| Users |
| 3 clients on-line monitoring at the same time |
| System Integration |
| Application Programming Interface |
| ONVIF Compliant |
| Alarm Triggering |
| Motion detection |
| Alarm Events |
| File upload via FTP |
| Notification via email, HTTP and TCP |
| General |
| Power Requirements |
| 12V DC, 6W max. |
| IEEE 802.3af Class |
| 3 |
| Power Consumption |
| 6.5W max. |
| Operating Temperature |
| -10 ~ 50 degrees C |
| Operating Humidity |
| 20 ~ 80% (non-condensing) |
| Weight |
| 348g |
| Dimensions |
| 110 x 86 mm |
| Emission |
| CE, FCC |
| Connectors |
| 10/100 Mbps Ethernet, RJ-45 |
| DC power jack |
Teknik Kısa
Çözünürlük : 1MP (720P)
Irled : Var
