Açıklama

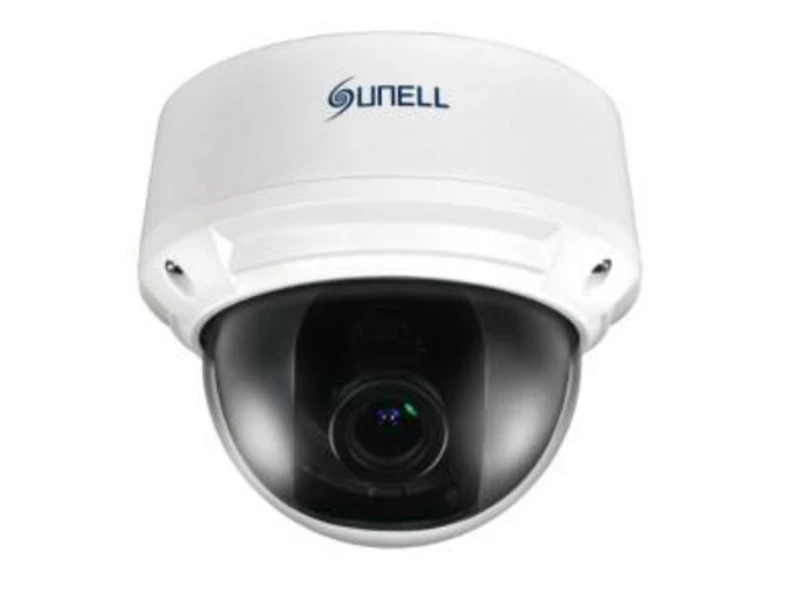

Sunell IPV56/20UDN IP Dome Kamera

Özellikler

1/2.9" Progressive Scan CMOS
VF Lens 3.0-12mm
Full HD 1080P
Triple Streams
Low bitrate ,Excellent low light performance
3D DNR, dWDR ,ICR
ROI, Defog, HLC, Corridor mode, DIS
Multiple Video Analytics
IP67,IK10

Teknik Özellikler

CAMERA
Image Sensor	1/2.9” Progressive Scan CMOS
Min. illumination	Color:0.01Lux@(F1.2,AGC ON) ;B/W:0.001Lux@(F1.2,AGC ON)
Day & Night	ICR
Shutter Speed	1/5-1/20000s
Auto Iris	Yes
Wide Dynamic Range	dWDR
Digital Noise Reduction	2D/3D
Lens	3.0-12mm Lens
FOV	87°~ 35°
IR LED	N/A
IR Range	N/A
Video Compression	H.264 High/Main/Baseline Profile, MJPEG
Bit Rate (CBR/VBR)	Main stream:500kb-12000kb ;Sub stream 100kb-6000kb
Audio Compression	G.711 ,RAW_PCM
Max.Resolution	1920x1080/30fps
Stream	Stream1 1920x1080/1280x720
Stream	Stream 2 D1 to QVGA
Image Setting	Rotate Mode,Saturation,Brightness,Contrast,Sharpness
HLC	Yes
9/16 Corridor Mode	Yes
DIS	Auto
ROI	Yes
Defog	Yes
NETWORK
Network Protocols	IPv4,802.1x,HTTP,HTTPS,TCP/IP,UDP/IP,RTSP,DHCP,NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ICMP ,IGMP, Unicast and Multicast
Alarm Trigger	Default Base:Motion Detection,Line Crossing,Tamper, Area Instrusion, Network disconnect,Disk alarm,I/O alarm;
Alarm Trigger	Optional Advance: Motion Detection, Line Crossing, Tamper, Area Instrusion, Camera Move, Dwell, Multiple Dwell, Retrograde Detection, Object Left, Object Remove,Abnormal Speed,Illegal Parking,Network disconnect,Disk alarm,I/O alarm
RTSP Video	Standard RFC2326, Support QuickTime / VLC Player.
Security	User security authentication, Reset, Hardware Watch Dog
Web Language	English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian (Sunell Brand)
System Compatibility	Onvif
INTERFACE
Ethernet	1 Ethernet (10/100 Base-T) RJ-45 Connector
Audio I/O	1ch Audio In,1ch Audio Out
Alarm I/O	1ch Alarm In,1ch Alarm Out
RS485	N/A
BNC Output	Yes
Reset Button	Yes
Edge Storage	Micro SD/SDHC/SDXC slot ,Max 64GB
GENERAL
Power Supply	AC24V/DC12V/POE
Power Consumption	3W(IR LED OFF)；5W（IR LED ON）
OperatingTemperature	Starting Temperature: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
OperatingTemperature	Working Temperature:-40 °C ~ 60 °C (-40 °F ~ 140 °F)
Operating Humidity	0% - 90% RH
Ingress Protection	IP67,IK10
Approvals	CE / FCC
Product Dimensions	φ130×112mm
Product Weight	900g
