Açıklama

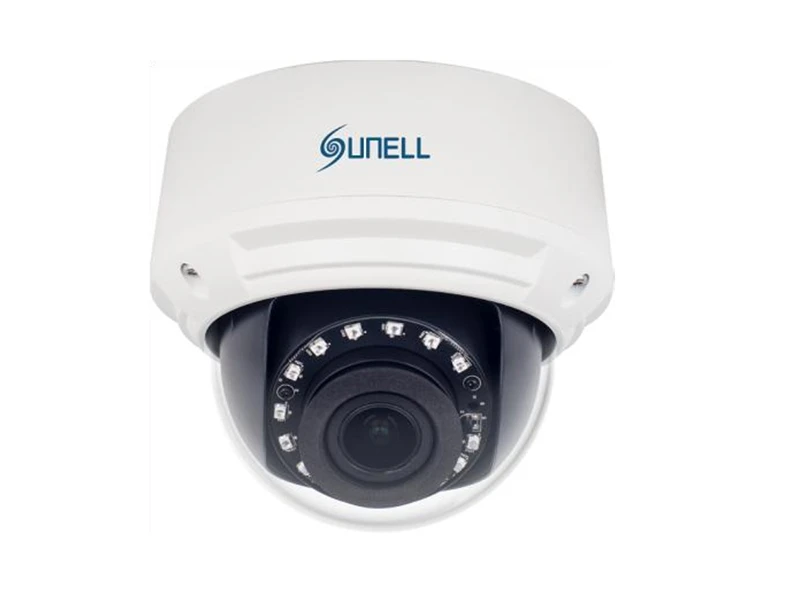

Z IP Dome Kamera

Özellikler

1/2.8" Progressive Scan CMOS
Motorized Lens 2.7-12mm
50fps/60fps@1080P(1920*1080)
Triple Streams
Smart IR Up to 30m
Low bitrate ,Excellent low light performance
WDR,3D DNR,ICR
ROI, Defog, HLC, Corridor mode, DIS
IP67,IK10

Teknik Özellikler

CAMERA
Image Sensor	1/2.8” Progressive Scan CMOS
Min. illumination	Color:0.001Lux@(F1.2,AGC ON) ;B/W:0Lux@(IR LED ON)
Day & Night	ICR
Shutter Speed	1/5s-1/20000s
Auto Iris	Yes
Wide Dynamic Range	WDR>120dB
Digital Noise Reduction	2D/3D
Lens	Motorized Lens 2.7-12mm
Auto Back Focus	Yes
FOV	105°~ 32°
IR LED	15pcs
IR Range	Up to 30m
Video Compression	H.264/265, MJPEG
Bit Rate (CBR/VBR)	Main stream:500kb-12000kb ;Sub stream 100kb-6000kb
Audio Compression	G.711 ,RAW_PCM
Max.Resolution	1920x1080/60fps
Stream	Stream1 1920x1080/1280x960/1280x720
	Stream 2 D1 to QVGA
	Stream 3 1920x1080/1280x720/D1/VGA/640X360/CIF/QVGA
Image Setting	Rotate Mode,Saturation,Brightness,Contrast,Sharpness
3 Axis	Pan: 0-320° , Tilt : 0-60°, Rotation: 0-320°
HLC	Yes
9/16 Corridor mode	Yes
DIS	Auto
ROI	Yes
Defog	Yes
NETWORK
Network Protocols	IPv4,802.1x,HTTP,HTTPS,TCP/IP,UDP/IP,RTSP,DHCP,NTP, RTCP/RTP, PPPoE,SMTP,DNS,UPnP,FTP,ICMP,IGMP,Unicast and Multicast.
Alarm Trigger	Perimeter ,Single Virtual Fences ,Double Virtual Fences ,Loiter ,Multi Loiter ,Object Left ,Object Removed, Abnormal Speed ,Converse, Illegal Parking ,Signal Bad , Motion Detection, Network disconnect, Disk alarm, I/O alarm
RTSP Video	Standard RFC2326, Support QuickTime / VLC Player.
Security	User security authentication, Reset, Hardware Watch Dog
Web Language	English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian (Sunell Brand)
System Compatibility	Onvif
INTERFACE
Ethernet	1 Ethernet (10/100 Base-T) RJ-45 Connector
Audio I/O	1ch Audio In&1ch Audio Out
Alarm I/O	1ch Alarm In&1ch Alarm Out
RS485	Yes
BNC Output	Yes
Reset Button	Yes
Edge Storage	Micro SD/SDHC/SDXC slot ,Max 128GB
GENERAL
Power Supply	DC12V/POE/AC24V
Power Consumption	3W(IR LED OFF)；5W（IR LED ON）
OperatingTemperature	Starting Temperature: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
OperatingTemperature	Working Temperature:-40 °C ~ 60 °C (-40 °F ~ 140 °F)
Operating Humidity	0% - 90% RH
Ingress Protection	IP67,IK10
Approvals	CE / FCC
