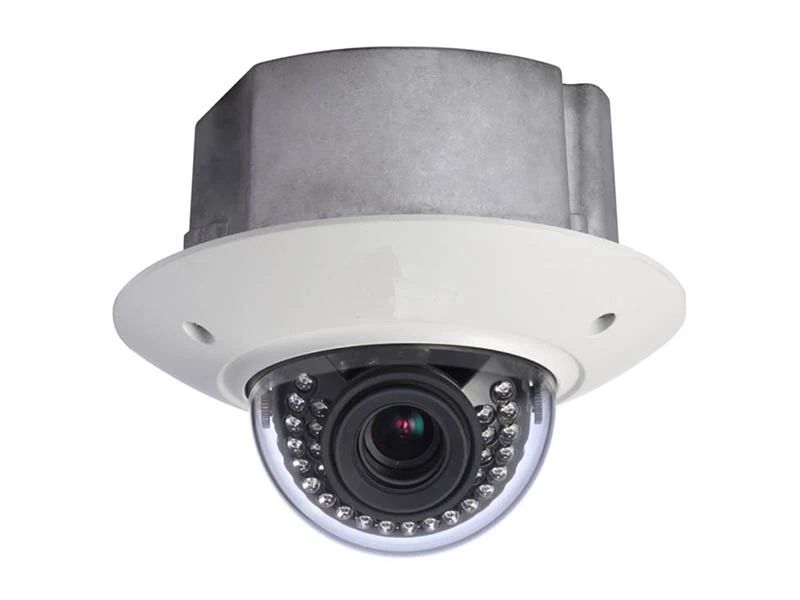

Dahua DH IPC HDB5202-DI IP HD Dome Kamera

Özellikler

1/2.8” 2Megapixel progressive scan Exmor CMOS
H.264 & MJPEG dual-stream encoding
25/30fps @ 1080P(1920×1080)
DWDR, Day/Night(ICR), 3DNR, Auto iris, AWB, AGC, BLC
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
3~9mm varifocal motorized lens
Built-in 1/1 alarm in/out
Micro SD memory, IP66, IK10, PoE

Teknik Özellikler

Model	DH-IPC-HDB5200P-DI	DH-IPC-HDB5200N-DI
Camera
Image Sensor	1/2.8” 2Megapixel progressive scan Exmor CMOS
Effective Pixels	1920(H)x1080(V)
Scanning System	Progressive
Electronic ShutterSpeed	Auto/Manual 1/3~1/10000	Auto/Manual 1/4~1/10000
Min. Illumination	Color: 0. 1Lux/F1.4, B/W: 0.01Lux/F1.4
S/N Ratio	More than 50dB
Video Output	1 Port
Camera Features
Max. IR LEDs Length	N/A
Day/Night	Auto(ICR)/Color/B/W
Backlight Compensation	BLC / HLC / DWDR
White Balance	Auto
Gain Control	Auto/Manual
Noise Reduction	3D
Privacy Masking	Up to 4 areas
Lens
Focal Length	3~9mm motorized	3~9mm motorized
Max Aperture	F1.2	F1.2
Focus Control	Auto	Auto
Angle of View	H: 103.9°(Wide)	H: 103.9°(Wide)
	~ 34.1°(Tele)	~ 34.1°(Tele)
Lens Type	Motorized /	Motorized /
	Auto Iris(DC)	Auto Iris(DC)
Mount Type	Board-in Type
Video
Compression	H.264 / MJPEG
Resolution	1080P(1920×1080) / 720P(1280×720) / D1(704×576) / CIF(352×288)	1080P(1920×1080) / 720P(1280×720) / D1(704×480) / CIF(352×240)
Frame Rate	1080P/720P(1 ~ 25/30fps)
	D1/CIF(1 ~ 25/30fps)
Bit Rate	H.264: 32K ~ 8192Kbps
Audio
Compression	G.711a / G.711u / PCM
Interface	1/1 channel In/Out
Network
Ethernet	RJ-45 (10/100Base-T)
Wi-Fi	N/A
Protocol	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF	ONVIF Profile S
Max. User Access	20 users
Smart Phone	iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot	Micro SD, Max 64GB
RS485	N/A
Alarm	1/1 channel In/Out
PIR Sensor Range	N/A
General
Power Supply	DC12V/AC24V, PoE(802.3af)
Power Consumption	Max 6W	Max 6W
Working Environment	-20°C~+60°C, Less than 90%RH
Ingress Protection	IP66
Vandal Resistance	IK10
Dimensions	Φ168mm×139.5mm
Weight	1.18Kg
