Açıklama

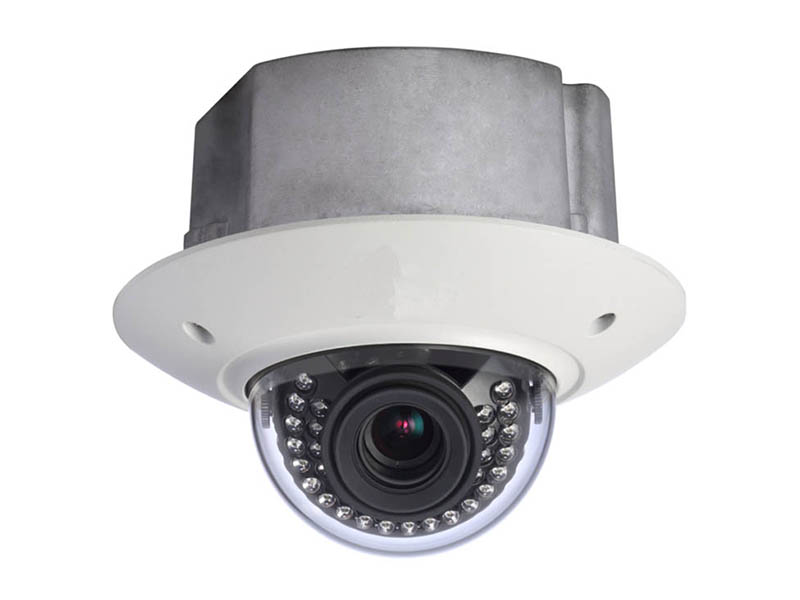

Dahua DH IPC HDBW3202 DI IP HD Dome Kamera

Name: Dahua DH IPC HDBW3202 DI IP HD Dome Kamera
Brand: Dahua

Çözünürlük : 2MP (1080P)

Irled : Var

Depolama : Var

Model		DH-IPC-HDBW3202P-DI
Camera
Image Sensor	1/3” 2Megapixel Exmor CMOS
Effective Pixels	1920(H)x1080(V)
Scanning System	Progressive
Electronic ShutterSpeed	Auto/Manual 1/3~1/10000
Min. Illumination	Color: 0. 1Lux/F1.2, B/W: 0.01Lux/F1.2; 0Lux/F1.2(IR on)
S/N Ratio	>50dB
Video Output	1 Port
Camera Features
Max. IR LEDs Length	20m
Day/Night	Auto(ICR)/Color/B/W
Backlight Compensation	BLC / HLC / DWDR
White Balance	Auto
Gain Control	Auto/Manual
Noise Reduction	2D
Privacy Masking	Up to 4 areas
Lens
Focal Length	3-9mm motorized
Max Aperture	F1.2
Focus Control	Auto
Angle of View	H: 105°(Wide)~
	36°(Tele)
Lens Type	Motorized /
	Auto Iris(DC)
Mount Type	Board-in Type
Video
Compression	H.264 / MJPEG
Resolution	1080P(1920×1080) / 720P(1280×720) / D1(704×576) / CIF(352×288)
Frame Rate	Main Stream	1080P/720P(1 ~ 25/30fps)
	Sub Stream	D1/CIF(1 ~ 25/30fps)
Bit Rate	H.264: 32K ~ 8192Kbps
Audio
Compression	G.711a / G.711u / PCM
Interface	1/1 channel In/Out
Network
Ethernet	RJ-45 (10/100Base-T)
Wi-Fi	N/A
Protocol	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF	ONVIF Profile S
Max. User Access	10 users
Smart Phone	iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot	Micro SD, Max 64GB
RS485	N/A
Alarm	1/1 channel In/Out
PIR Sensor Range	N/A
General
Power Supply	DC12V/AC24V, PoE(802.3af)
Power Consumption	<7W
Working Environment	-10°C~+60°C, 10%~90%
Ingress Protection	IP66
Vandal Resistance	IK10
Dimensions	Φ146mm×139.5mm
Weight	1.18Kg
