Açıklama

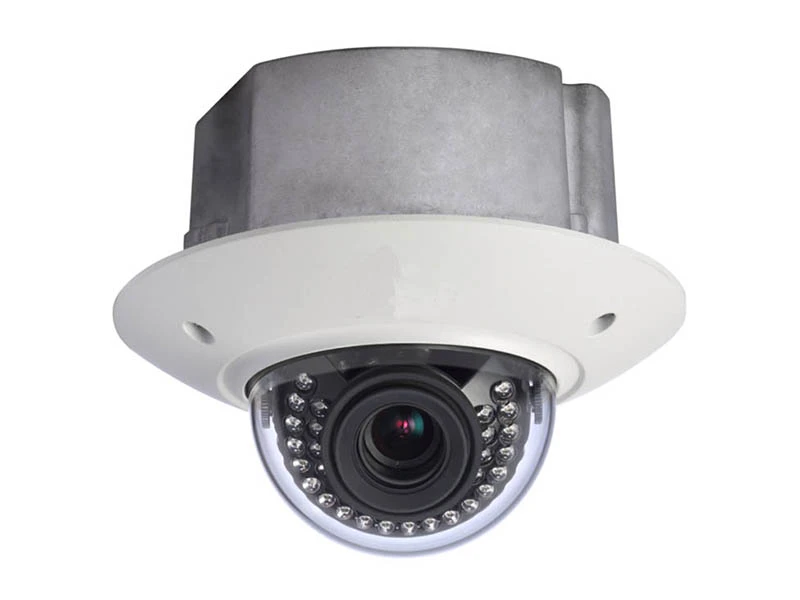

Dahua DH IPC HDBW5200 DI IP HD Dome Kamera
Özellikler
- 1/2.8” 2Megapixel progressive scan Exmor CMOS
- H.264 & MJPEG dual-stream encoding
- 25/30fps @ 1080P(1920×1080)
- DWDR, Day/Night(ICR), 3DNR, Auto iris, AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
- 2.7~12mm varifocal lens (5200)
- 3~9mm varifocal motorized lens (5202)
- Built-in 1/1 alarm in/out
- Max. IR LEDs length 20m
- Micro SD memory, IP66, IK10, PoE,
Teknik Özellikler
| Model | IPC-HDBW5200P-DI | IPC-HDBW5200N-DI | |
| Camera | |||
| Image Sensor | 1/2.8” 2Megapixel progressive scan Exmor CMOS | ||
| Effective Pixels | 1920(H)x1080(V) | ||
| Scanning System | Progressive | ||
| Electronic ShutterSpeed | Auto/Manual 1/3~1/10000 | Auto/Manual 1/4~1/10000 | |
| Min. Illumination | Color: 0. 1Lux/F1.4, B/W: 0.01Lux/F1.4 : 0Lux/F1.4(IR on) | ||
| S/N Ratio | More than 50dB | ||
| Video Output | 1 Port | ||
| Camera Features | |||
| Max. IR LEDs Length | 20m | ||
| Day/Night | Auto(ICR)/Color/B/W | ||
| Backlight Compensation | BLC / HLC / DWDR | ||
| White Balance | Auto | ||
| Gain Control | Auto/Manual | ||
| Noise Reduction | 3D | ||
| Privacy Masking | Up to 4 areas | ||
| Lens | |||
| Focal Length | 2.7-12mm | 2.7-12mm | |
| Max Aperture | F1.4 | F1.4 | |
| Focus Control | Manual | Manual | |
| Angle of View | H:100°(Wide)~30°(Tele); | H:100°(Wide)~ | |
| 30°(Tele); | |||
| Lens Type | Manual /Auto Iris (DC) | Manual / | |
| Auto Iris (DC) | |||
| Mount Type | Board-in Type | ||
| Video | |||
| Compression | H.264 / MJPEG | ||
| Resolution | 1080P(1920×1080) / 720P(1280×720) / D1(704×576) / CIF(352×288) | 1080P(1920×1080) / 720P(1280×720) / D1(704×480) / CIF(352×240) | |
| Frame Rate | Main Stream | 1080P/720P(1 ~ 25/30fps) | |
| Sub Stream | D1/CIF(1 ~ 25/30fps) | ||
| Bit Rate | H.264: 32K ~ 8192Kbps | ||
| Audio | |||
| Compression | G.711a / G.711u / PCM | ||
| Interface | 1/1 channel In/Out | ||
| Network | |||
| Ethernet | RJ-45 (10/100Base-T) | ||
| Wi-Fi | N/A | ||
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour | ||
| ONVIF | ONVIF Profile S | ||
| Max. User Access | 20 users | ||
| Smart Phone | iPhone, iPad, Android, Windows Phone | ||
| Auxiliary Interface | |||
| Memory Slot | Micro SD, Max 64GB | ||
| RS485 | N/A | ||
| Alarm | 1/1 channel In/Out | ||
| PIR Sensor Range | N/A | ||
| General | |||
| Power Supply | DC12V/AC24V, PoE(802.3af) | ||
| Power Consumption | Max 5W | ||
| Working Environment | -20°C~+60°C, Less than 90%RH | ||
| Ingress Protection | IP66 | ||
| Vandal Resistance | IK10 | ||
| Dimensions | Φ168mm×139.5mm | ||
| Weight | 1.18Kg | ||
Teknik Kısa
Irled : Var
Çözünürlük : 2MP (1080P)
