Açıklama

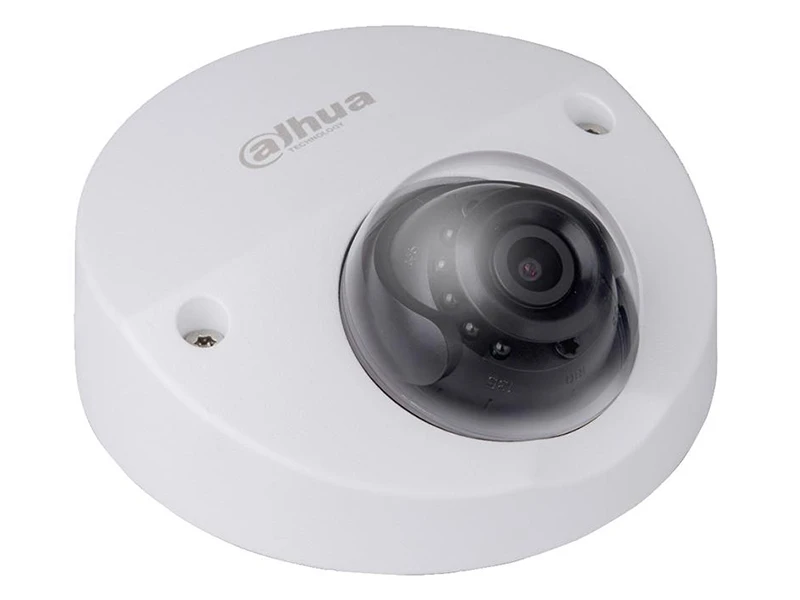

Dahua IPC HDBW4221F M 0280B IP HD Dome Kamera
Özellikler
- Sesli
- 2,8mm Sabit lens (97.3 °),
- 1/2,8” 2 Megapixel progressive scan CMOS,
- 0.01Lux/F2.0(Color),0Lux/F2.0 (IR on),
- 30fps @ 2MP(1920x1080), H.264/MJPEG Dual Codec,
- HD ve Standard Çözünürlük Seçimi,
- Çoklu Network Görüntüleme,
- WDR, Gece/Gündüz (ICR), AWB, AGC, BLC,HLC,
- 3D-DNR,Yüz Algılama, Dikenli Tel İhlali, Alan İhlali, Sahne Değişimi Algılama,
- Maks. 64Gb Micro SD Memory,
- IR LED G.Mesafesi: 20m, Akıllı IR, IP67, IKA10,
- PoE
Teknik Özellikler
| Camera |
| Image Sensor : 1/2.7” 2Megapixel progressive scan CMOS |
| Effective Pixels : 1920(H) ´ 1080(V) |
| Scanning System : Progressive |
| Electronic Shutter Speed : Auto/Manual, 1/3(4)-1/100000s |
| Min. Illumination : 0.01lux/F2.0(color),0lux/F2.0 (IR on) |
| S/N Ratio : More than 50dB |
| Video Output : N/A |
| Camera Features |
| Max. IR LEDs Length : 20m |
| Day/Night : Auto(ICR)/Color/B/W |
| Backlight Compensation : BLC / HLC / WDR(120dB) |
| White Balance : Auto/Sunny/Night/Outdoor/Customized |
| Gain Control : Auto/Manual |
| Noise Reduction : 3D |
| Privacy Masking : Up to 4 areas |
| Lens |
| Focal Length : 3.6mm (2.8mm,6mm optional) |
| Max Aperture : F2.0(F2.0,F2.0) |
| Focus Control : Manual |
| Angle of View : H:86°(106°/56°) |
| Lens Type : Fixed lens |
| Mount Type : Board-in Type |
| Video |
| Compression : H.264/H.264H/H.264B/MJPEG |
| Resolution : 1080P(1920x1080)/1.3M(1280x960)/720P(1280×720)/D1(704×576/704×480) /CIF(352×288/352×240) |
| Frame Rate : Main Stream : 1080P/720P(1 - 25/30fps) |
| Sub Stream : D1/CIF(1 - 25/30fps) |
| Third Stream : 720P(1-13/4fps) |
| Bit Rate : H.264: 32K - 10Mbps |
| Corridor Mode : Support |
| Audio |
| Compression : G.711,AAC |
| Interface : Built in Mic |
| Smart Function(Optional) |
| Smart detection : Tripwire |
| Intrusion |
| Abandoned/Missing |
| Scene Change |
| Audio detect |
| Face detect |
| Network |
| Ethernet : RJ-45 (10/100Base-T) |
| Wi-Fi : N/A |
| Protocol : IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
| Compatibility : ONVIF,PSIA,CGI |
| Max. User Access : 20 users |
| Smart Phone : iPhone, iPad, Android, Windows Phone |
| Auxiliary Interface |
| Memory Slot : Micro SD, Max128GB |
| RS485 : N/A |
| Alarm : N/A |
| PIR Sensor Range : N/A |
| Certification |
| Certification : CE,FCC,UL,EN50155 |
| General |
| Power Supply : DC12V, PoE (802.3af) |
| Power Consumption : Max 5W |
| Working Environment : -30°C~+60°C, Less than 95% RH |
| Ingress Protection : IP67 |
| Vandal Resistance : IK10 |
| Dimensions : Φ106mm×50.3mm |
| Weight : 0.35kg |
Dahua IPC HDBW4221F M 0280B IP HD Dome Kamera Pdf Dosyası555.18 KB
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 2MP (1080P)
Irled : Var
