Açıklama

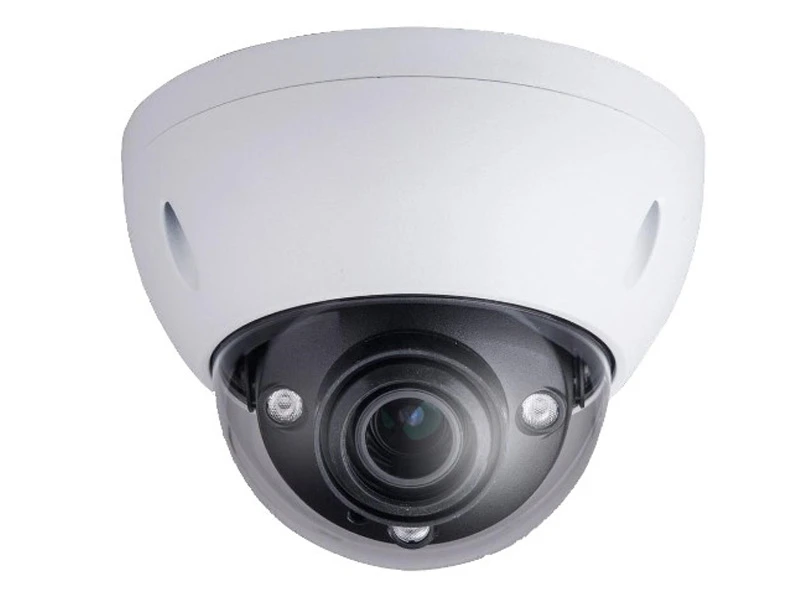

Dahua IPC HDBW81200EP Z IP HD Dome Kamera
Özellikler
- 12 Megapiksel Ultra HD Dome IP Kamera
- 4X Optik Zoom
- 1/1,7" 12 MP Progressive Scan CMOS,
- 15fps @ 12MP (4000x3000),
- 25/30fps @ 4K(3840x2160) ,
- H.264 / MJPEG Dual Codec,
- 0.05Lux/F1.4(Color); 0Lux/F1.4(IR on),
- ESS 1/3~1/100000s, WDR, 3D-DNR,AWB,AGC, BLC,
- Sis Giderme, ROI, EIS, Yüz Algılama,
- Dikenli Tel İhlali Tespiti,
- Sahne Değişimi Algılama,
- Ses Algılama, Auto Focus,
- 2/1xAlarm, 1/1xSes, PoE,
- 1xMikrofon, 1xRJ45(1000 Base T),
- 1xBNC, Max. 128Gb Micro SD Memory, IP 67, 50m IR
Teknik Özellikler
| Camera |
| Image Sensor : 1/1.7” 12Megapixel progressive scan CMOS |
| Effective Pixels : 4000(H) x 3000(V) |
| Scanning System : Progressive |
| Electronic Shutter Speed : Auto/Manual, 1/3(4)-1/100000s |
| Min. Illumination : 0.05Lux/F1.4(Color); 0Lux/F1.4(IR on) |
| S/N Ratio : More than 50dB |
| Video Output : 1 port |
| Camera Features |
| Max. IR LEDs Length : 50m |
| Day/Night : Auto(ICR) / Color / B/W |
| Backlight Compensation : BLC / HLC /DWDR |
| White Balance : Auto/Sunny/Night/Outdoor/Customized |
| Gain Control : Auto/Manual |
| Noise Reduction : 3D |
| Privacy Masking : Up to 4 areas |
| Lens |
| Focal Length : 4.1mm-16.4mm |
| Max Aperture : F1.4 |
| Focus Control : Motorized |
| Angle of View : H: 106 ˚- 32 ˚ |
| Lens Type : Motorized/ Auto Iris(DC) |
| Mount Type : Board-in Type |
| Video |
| Compression : H.264/H.264B/H.264H/ MJPEG |
| Resolution : 12M(4000x3000)/8M(4096×2160)/8M(3840×2160)/1080P(1920×1080)/720P(1280×720) /D1(704×576) /CIF(352×288) |
| Frame Rate : Main Stream : 12M(1-15fps)/8M(3840x2160) (1-25/30fps) |
| Sub Stream : D1/CIF(1 - 25/30fps) |
| Third Stream : 1080P/720P/D1(1 - 25/30fps) |
| Bit Rate : H.264: 32K - 16Mbps |
| Audio |
| Compression : G.711a/ G.711u/ AAC |
| Interface : 1/1 channel In/Out |
| Smart Function(Optional) |
| Smart detection : Tripwire |
| Intrusion |
| Scene change |
| Missing/Abandoned |
| Audio detect |
| Defocus detect |
| Face detect |
| Network |
| Ethernet : RJ-45 (10/100Base-T) |
| Wi-Fi : N/A |
| Protocol : IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
| ONVIF : ONVIF,PSIA,CGI |
| Max. User Access : 20users |
| Smart Phone : iPhone, iPad, Android, Windows Phone |
| Auxiliary Interface |
| Memory Slot : Micro SD, Max 128GB |
| RS485 : N/A |
| Alarm : 1/1 channel In/Out |
| PIR Sensor Range : N/A |
| General |
| Power Supply : DC12V/AC24V, PoE (802.3at) |
| Power Consumption : 24W (with IR on, motorized lens working) |
| Working Environment : -30°C-+60°C, Less than 95% RH |
| Ingress Protection : IP67 |
| Vandal Resistance : IK10 |
| Dimensions : Φ159mm×117.9mm |
| Weight : 1.1kg |
Dahua IPC HDBW81200EP Z IP HD Dome Kamera Pdf Dosyası457.96 KB
Teknik Kısa
Çözünürlük : 12MP
Depolama : Var
Ses : Var
Irled : Var
