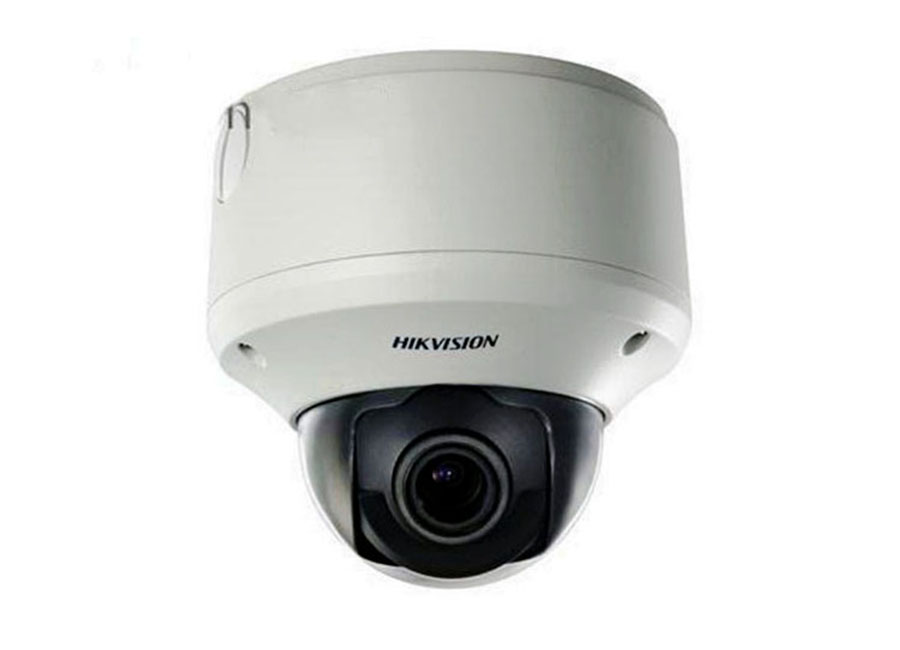

Hikvision DS 2CD4324F PTZ S Dome Kamera

Özellikler

1/2.8” Progressive Scan CMOS
1920 x 1080 @ 30fps frame rate
Slow shutter
DWDR
Motorized PTZ
3D DNR
Support 128G on-board storage
AC24V/PoE

Teknik Özellikler

Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Minimum Aydınlatma	0.01 Lux @ (F1.2, AGC ON), 0 lux with IR
Minimum Aydınlatma	0.014 Lux @ (F1.4, AGC ON), 0 lux with IR
Slow shutter	Support
Objektif Hızı	1s ~ 1/100,000s
Lens	2.8-12mm @ F1.4, angle of view 113-33.8°; 8-32mm @ F1.4, angle of view 31.2~10.2°
Lens Mount	φ14
Auto Iris	DC drive
Day& Night	IR cut filter with auto switch
Compression Standard
Video Compression	H.264/MPEG4/MJPEG
H.264 Türü	Baseline Profile / Main Profile / High Profile
Video bit rate	32Kbps~16Mbps
Audio Compression	G.711/G.722.1/G.726/MP2L2
Ses Bit Hızı	64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)
Max. Image Resolution	1920 x 1080
Çerçeve Hızı	50Hz 50fps (1920 × 1080)/(1280 × 960)/(1280 × 720)
Çerçeve Hızı	60Hz 60fps (1920 × 1080)/(1280 × 960)/(1280 × 720)
Üçüncül Akış	Independent with Main Stream and Sub Stream, up to
Üçüncül Akış	50/60Hz 25fps(1920 × 1080)
Görüntü İyileştirme	BLC/HLC/3D DNR/ROI/Defog
Image Settings	Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Görüntü Düzeltme	Support
Bölgesel Kırpma	Support
Resim Yerleşimi	LOGO picture can be overlaid on video with 128x128 24bit bmp format
Gündüz / Gece Anahtarı	Auto/Schedule/Triggered by Alarm In
Network
Network Storage	NAS (Support NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception
Protokoller	TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function	User Authentication, Watermark, IP address filtering, Anonymous access
System Compatibility	ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI
Interface
Audio	2-ch 3.5 mm audio in (Mic in/Line in)/out interface
Communication Interface	1 RJ45 10M/100M Ethernet port, 1 RS-485 interface (-S)
Alarm	2 input, 2 output (up to DC24V 1A or AC110V 500mA )
Video Output	1Vp-p Composite Output (75 Ω, BNC)
Dahili Depolama	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Butonu	Yes
Audio
Çevre Gürültü Filtreleme	Support
Audio I/O	Support dual audio track, stereo
Audio Sampling Rate	16kHz / 32kHz / 44.1kHz / 48kHz
Smart Feature-set
Behavior Analysis	Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
Sınır İhlali	Cross a pre-defined virtual line
Saldırı Algılama	Enter and loiter in a pre-defined virtual region
Bölge Giriş	Enter a pre-defined virtual region from the outside place
Bölge Çıkma	Exit from a pre-defined virtual region
Bırakılan Eşya	Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Alınan Eşya	Objects removed from the pre-defined region, such as the exhibits on display.
İstisna Algılamaları	Scene change detection, Sudden audio increase/decrease detection, Audio loss detection, Defocus detection
Tanıma	Face detection recognition
Statistics	Object Counting (Entrance and Exit object number is accounted and showed on screen in real time)
General
Operating Conditions	-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Operating Conditions	Humidity 95% or less (non-condensing)
Power Supply	24 VAC ± 10% / PoE (802.3at)
GÜç Tüketimi	Max. 13.5 W
Impact Protection	IK10
Weather Proof	IP66
Boyutlar	Φ159.8 × 146 mm(Φ6.29” ×5.75”)
Ağırlık	2100 g (4.63 lbs)
NOT	* "-S" series support 1-ch audio I/O, 1-ch alarm I/O and 1-ch RS-485 interface
