Açıklama

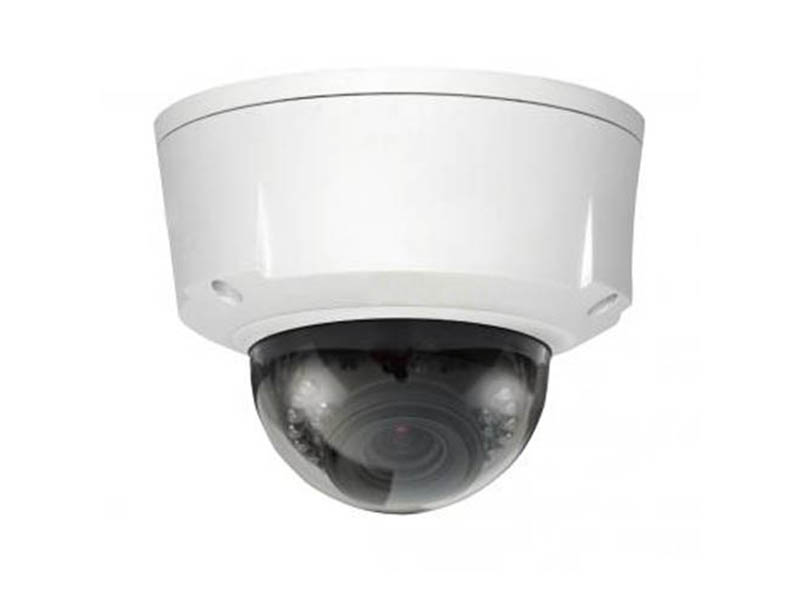

Neutron IPC HDBW5302 IP HD Dome Kamera
Özellikler
- 1/3” 3Megapixel progressive scan Aptina CMOS
- H.264 & MJPEG dual-stream encoding
- Max 20fps@3M(2052×1536) & 25/30fps@1080P(1920×1080)
- DWDR, Day/Night(ICR), 3DNR, Auto iris, AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
- 3 ~9mm varifocal motorized lens
- Built-in 1/1 alarm in/out
- Max. IR LEDs length 20m
- Micro SD memory, IP66, IK10, PoE,
Teknik Özellikler
| Camera | ||
| Image Sensor | 1/3” 3Megapixel Aptina CMOS | |
| Effective Pixels | 2048(H)x1536(V) | |
| Scanning System | Progressive | |
| Electronic ShutterSpeed | Auto/Manual 1/3~1/10000 | |
| Min. Illumination | Color: 0. 1Lux/F1.2, B/W: 0.01Lux/F1.2; 0Lux/F1.2(IR on) | |
| S/N Ratio | More than 50dB | |
| Video Output | 1 port | |
| Camera Features | ||
| Max. IR LEDs Length | 20m | |
| Day/Night | Auto(ICR)/Color/B/W | |
| Backlight Compensation | BLC / HLC / DWDR | |
| White Balance | Auto | |
| Gain Control | Auto/Manual | |
| Noise Reduction | 3D | |
| Privacy Masking | Up to 4 areas | |
| Lens | ||
| Focal Length | 3 -9mm motorized | |
| Max Aperture | F1.2 | |
| Focus Control | Auto | |
| Angle of View | H: 86.5°(Wide)~28.6°(Tele) | |
| Lens Type | Motorized /Auto Iris(DC) | |
| Mount Type | Board-in Type | |
| Video | ||
| Compression | H.264 / MJPEG | |
| Resolution | 3M(2048×1536)/1080P(1920×1080) / 720P(1280×720) /D1(704×576) / | |
| CIF(352×288) | ||
| Frame Rate | Main Stream | 3M(1~20fps)/1080P/720P(1~25/30fps) |
| Sub Stream | D1/CIF(1 ~ 25/30fps) | |
| Bit Rate | H.264: 32K ~ 8192Kbps | |
| Audio | ||
| Compression | G.711a / G.711u/ PCM | |
| Interface | 1/1 channel In/Out | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Wi-Fi | N/A | |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour | |
| ONVIF | ONVIF Profile S | |
| Max. User Access | 20 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Auxiliary Interface | ||
| Memory Slot | Micro SD, Max 64GB | |
| RS485 | N/A | |
| Alarm | 1/1 channel In/Out | |
| PIR Sensor Range | N/A | |
| General | ||
| Power Supply | DC12V/AC24V, PoE(802.3af) | |
| Power Consumption | Max 5W (Motorized lens: +3.5W) | |
| Working Environment | -20°C~+60°C , Less than 90%RH | |
| Ingress Protection | IP66 | |
| Vandal Resistance | IK10 | |
| Dimensions | Φ151mm×119mm | |
| Weight | 1.25kg | |
Teknik Kısa
Çözünürlük : 3MP
VGA
