Açıklama

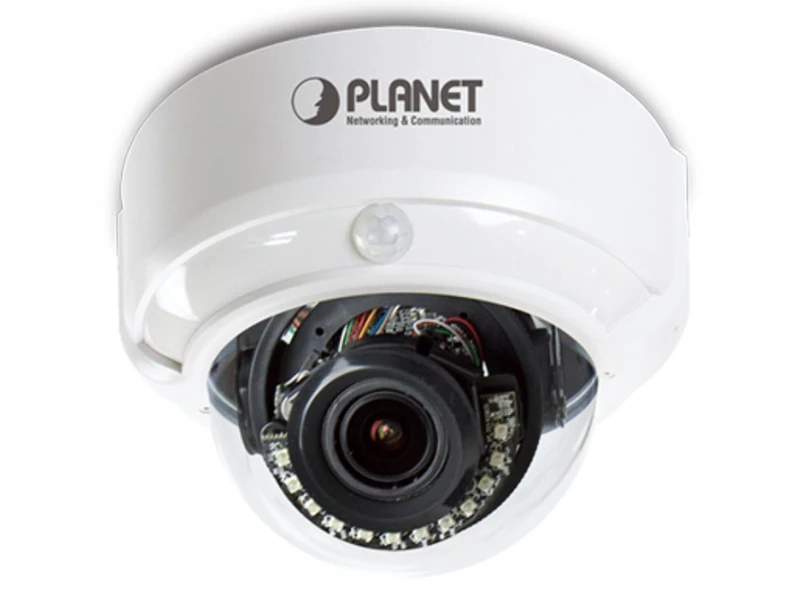

Planet ICA 4210P IP HD Dome Kamera
Özellikler
Camera
- Sony's 1/2.8 type "Exmor RS" 2.4MP CMOS sensor
- 3.0~10.5 mm vari-focal, P-iris lens
- Super low lux@0.01
- Maxsimum resolution 1080P at 60fps
- True WDR Enhancement to enhance visibility under extremely bright or dark environments
- Intelligent motion / audio / network disconnect / tamper / face / cross line detection alarm triggers
- Removable IR-cut filter for Day & Night function
- Built-in PIR sensor (6m/120 degrees coverage) for thermal / motion detection
- Built-in 12 IR illuminators, effective up to 20 meters
- Smart Foc us for Remote and Precise Focus Adjustment
Video / Audio
- H.264 and M-JPEG video compression simultaneously
- Simultaneous multi-stream support
- H.264 high profile, main profile and baseline
- 3DNR to improve picture quality at low lux
- Two-way audio support with enhanced audio quality
Network and Configuration
- Compliant with IEEE 802.3af PoE interface for flexible deployment
- Equipped with Gigabit Ethernet port
- Auto MDI/MDI-X supported
- Supports both IPv6 and IPv4
- Built-in Samba client for NAS
- RTSP / UPnP / 3GPP / HTTPS protocols selectable
Easy Installation & Management
- ONVIF compliant for interoperability
- 3GPP for 3G mobile remote applications
- Micro SD card local video recording supported
- RS485 interface for P/T scanner control
- Digital Input/Output for integration with sensors and alarms
- Cam Viewer 3 central management software supported
Teknik Özellikler
| Camera | |
| Image Device | 1/2.8 type Sony Exmor RS progressive scan CMOS sensor |
| Lens | Vari-focal 3.0~10.5mm, P-Iris |
| Mechanical IR-cut filter | |
| Angle of view : horizontal: 25 ~ 80 degrees / vertical: 19 ~ 62 degrees | |
| Min Illumination | 0.1 lux (color) |
| 0.01 lux (B/W) | |
| IR Illuminations | IR LED x 12, 850nm |
| Built-in IR illuminators, effective up to 20 meters | |
| *The IR distance is based on the environment | |
| PIR Sensor | Built-in 6m/120 degrees Coverage |
| Effective Pixels | 1920 x 1080 pixels (Full HD) |
| Image | |
| Video Compression | H.264 / M-JPEG |
| Video Resolution | 1080P mode |
| H.264: 1080P / 640 x 480 | |
| M-JPEG: 1080P / 640 x 480 | |
| 1080P mode with WDR | |
| H.264: 1080P / 640 x 480 | |
| M-JPEG: 1080P / 640 x 480 | |
| Frame Rate | Up to 60fps for all resolutions |
| Image Setting | AE, AWB |
| 3D noise reduction | |
| True WDR | |
| Color, brightness, sharpness, contrast, hue | |
| Mirror/Flip | |
| 10 Privacy Masks | |
| Text, time and date overlay | |
| Overlay image on video | |
| Digital Image Stabilization (DIS) | |
| Streaming | Simultaneous multi-profile streaming |
| Streaming over UDP, TCP, HTTP, or HTTPS | |
| M-JPEG streaming over HTTP (server push) | |
| Controllable frame rate and bandwidth | |
| AOI | |
| Audio | |
| Audio Streaming | Two-way audio |
| Audio Compression | RTSP: G.711 64kbps, G.726 32kbps |
| Microphone | External microphone input |
| Audio Output | Adjustable audio output gain |
| Network and Configuration | |
| Standard | IEEE 802.3 10Base-T |
| IEEE 802.3u 100Base-TX | |
| IEEE 802.3ab 1000Base-T | |
| Protocol | IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, FTP, NTP, DNS, DDNS, DHCP, DIPS, ARP, Bonjour, UPnP, RTSP, RTP, RTCP, IGMP, PPPoE, Samba, ICMP, SNMP, QoS |
| Security | Password protection, IP address filtering, HTTPS encrypted data transmission, user access log |
| Users | 20 clients on-line monitoring at the same time |
| System Integration | |
| Application Programming Interface | Open API for software integration |
| ONVIF Compliant | |
| Alarm Triggers | Intelligent Motion / Tampering / Audio / Face / Cross line detection and external input |
| Alarm Events | File upload via FTP, Samba to NAS, SD card or email |
| Notification via email, HTTP, and TCP | |
| External output activation | |
| Audio alert output | |
| Go to PTZ preset position | |
| Video Buffer | Pre- and post-alarm buffering |
| General | |
| Power Requirement | 12V DC, 1A |
| IEEE 802.3af Class 3 | |
| Power Consumption | 9W max. |
| Operating Temperature | 0 ~ 50 degrees C |
| Operating Humidity | 20 ~ 80% (non-condensing) |
| Weight | 635g |
| Dimensions (Φ x L) | 152 x 109 mm |
| Emission | CE, FCC |
| Connectors | 10/100/1000 Mbps Gigabit Ethernet, RJ-45 |
| DC power jack | |
| Terminal block for 1 alarm input and 1 output | |
| RS-485 interface for scanners, pan/tilt | |
| External mic input | |
| Audio out | |
| Micro SD/SDHC card (max. 32GB, Class 6) | |
| Factory default reset button | |
