Açıklama

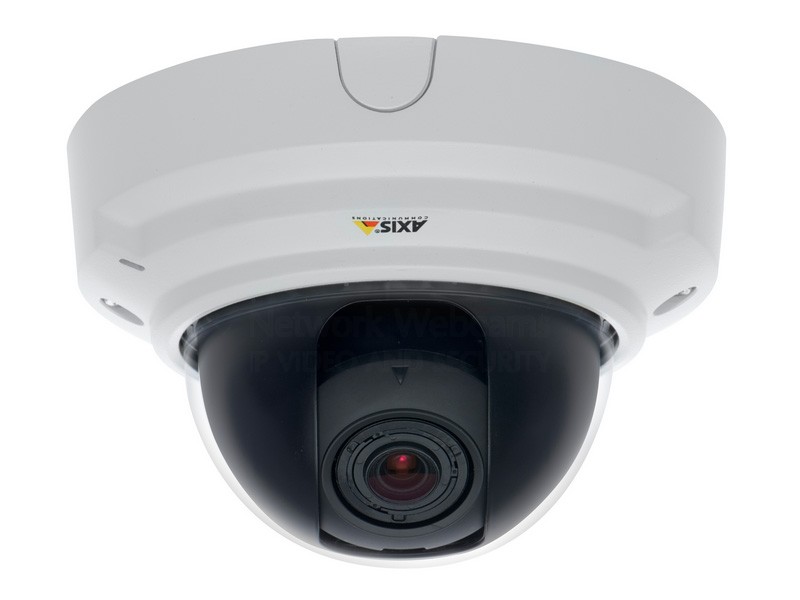

Axis P3364-V IP HD Dome Kamera

Özellikler

1/3” Progressive scan RGB CMOS
3.3–12 mm, F1.4 Lens
Color: 0.18 lux, F1.4, B/W: 0.04 lux, F1.4
H.264 Baseline and Main Profile (MPEG - 4 P art 1 0/A VC), Motion JPEG
Compression, Color , Brightness, Sharpness, Contrast, White balance, Exposure control, Exposure zones, Backlight compensation,
Fine tuning of behavior at low light, T ext and image overlay , Mirroring of images, Privacy mask, Wide Dynamic Range - Dynamic Contrast
Power over Ethernet IEEE 80 2.3af/ 80 2.3at Type 1 Class 2 Max 5.9 W

Teknik Özellikler

Video Input
Audio Support : Yes
Audio Support Features : Two-way audio capability
Camera Mechanical Design : Fixed dome
Camera Type : Network surveillance camera
Color or B&W : Color
Connectivity Technology : Wired
Day & Night Functionality : Yes
Digital Video Capture Resolution : 1280 x 960 , 160 x 90
Digital Video Format : AVC , H.264 , MJPEG
Features : Backlight compensation , Brightness control , Color control , Contrast control , Image mirror , Infrared cut filter , Lightfinder technology , Manual exposure , ONVIF support , P-Iris control , Password protection , Power over Ethernet , Privacy Mask Function , Progressive scanning , Sharpness control , Tamper-detection , Text stamp , Video Motion Detection Technology , White balance , Wide Dynamic Range (WDR)
Frame Rate : 30 frames per second
Max Digital Video Resolution : 1280 x 960
Panning Range (degree) : 360
Shutter Speed (Max) : 1/24500 sec
Shutter Speed (Min) : 2 sec
Tilting Range (degree) : 170
Interface Required
Connector Type : RJ-45
Interface : Ethernet 10Base-T/100Base-TX
Total Qty : 1
Type : Network / power
Connector Type : Mini-phone 3.5 mm
Interface : Line-in/microphone
Type : Audio
Interface : Line-out
Optical Sensor
Optical Sensor Size : 1/3"
Optical Sensor Type : CMOS
Sensor Size : 1/3"
Sensor Size (metric) : 8.5 mm ( 1/3" )
Networking
Network Interface : Ethernet 10Base-T/100Base-TX
Network Protocols : ARP , Bonjour , DDNS , DHCP , DNS , FTP , HTTP , HTTPS , ICMP , IGMP , IPv4 , IPv6 , NTP , QOS , RTCP , RTP , RTSP , SMTP , SNMP 1 , SNMP 2c , SNMP 3 , SOCKS , TCP/IP , UDP/IP , UPnP
Cable
Connectivity Details Length : 16.4 ft
Connectivity Details Type : Network cable
Environmental Parameters
Humidity Range Operating : 10 - 100%
Max Operating Temperature : 131 °F
Min Operating Temperature : -40 °F
Header
Brand : Axis
Compatibility : PC
Manufacturer : Axis Communications
Model : P3364-VE 12mm
Packaged Quantity : 1
Product Line : AXIS
Lens System
Angular Field of View (H, max, degree) : 82
Angular Field of View (H, min, degree) : 24
Focal Length Control : Vari-focal
Lens Aperture : F/1.4
Max Focal Length : 12 mm
Min Focal Length : 3.3 mm
Miscellaneous
Color : White
Color Category : White
Compliant Standards : C-Tick , CISPR 22 , EN 60950-1 , EN 61000-3-2 , EN 61000-3-3 , EN 61000-6-1 , EN 61000-6-2 , EN55022 Class B , EN55024 , FCC Part 15 B , ICES-003 Class B , IEC 60068-2-1 , IEC 60068-2-14 , IEC 60068-2-2 , IEC 60068-2-27 , IEC 60068-2-30 , IEC 60068-2-64 , IEC 60068-2-78 , IEC 60529 IP66 , IEC 60950-1 , NEMA Type 4X VCCI Class B ITE
Included Accessories : Mounting bracket , Smoked dome cover
Service
Support Details Full Contract Period : 3 years
Support Details Type : Limited warranty
Slot Required
Type : None
Software
Type : Drivers & Utilities
Digital Camera
Supported Flash Memory : SD Memory Card , SDHC Memory Card , SDXC Memory Card
Dimensions & Weight
Depth : 7 in
Height : 4.8 in
Weight : 3.31 lbs
Width : 7 in
CCTV
Equipment Category : CCTV cameras
Cable Details
Included Qty : 1
CCTV Camera
Alarm Inputs Qty : 1
Alarm Outputs Qty : 1
Outdoor : Yes
Protection : Vandal / weatherproof
CCTV Camera Sensitivity
F-number : F1.4
Minimum Illumination (lux) : 0.15
Mode : Color
Minimum Illumination (lux) : 0.03
Mode : B&W
Flash Memory
Installed Size : 128 MB
Power
Low Voltage Power : PoE
RAM
Installed Size : 256 MB
Service & Support
Type : 3 years warranty
